10.2Gbps
300V
AC 500V/minute
100
300kHz-825MHz - <5dB, 825MHz-2.475GHz - <5dB, 2.475GHz-4.125GHz - <12dB, 4.125GHz-5.1GHz - <20dB
340 MHz/10.2 Gbps
30V
60deg.
80deg.C
-20deg. - 80deg.C
-25deg. - 85deg.C
Conductor Type: 30AWG (7/0.10), Tinned Copper
Insulation: Foamed PE SKIN, Red/White, Brown/White, Blue/White, Green/White, Black/White, O.D.: 0.8mm
Drain Wire: 30AWG (7/0.10), Tinned Copper
Shield: Aluminum Foil, 100% Coverage
Conductor Type: 30AWG (7/0.10), Tinned Copper
Insulation: HDPE, Yellow, Red, Green, Purple, O.D.: 0.6
Connector Type: HDMI: Type A
Pin Construction: Phosphor Copper
Plating: 1um Gold
Connector Type: HDMI: Type A
Pin Construction: Phosphor Copper
Plating: 1um Gold
Drain Wire: 30AWG (07/0.10), Tinned Copper
Foil Shield: Aluminum Foil, 100% Coverage
Braided Shield: 16/4/0.12, Al/Mg
Jacket: PVC, Black, O.D.: 6.0 ± 0.2mm
2m (6.56')
Connectors 1: 10.00x20.10x37.10mm (0.39x0.79x1.46")
Connectors 2: 7.30x10.50x26.30mm (0.28x0.41x1.03")
0.15lbs (0.06kg)
757120403135
Models | SKU: C2G40313 MFR: 40313 $10.49 In Stock | ||
---|---|---|---|
Cable Length | 6.6' | 0.5' | 6.6' |
Cable Type | HDMI to Micro HDMI | HDMI to Micro HDMI | HDMI to Micro HDMI |
Transmission Bandwidth | 10.2 Gbps | 10.2 Gbps | NA |

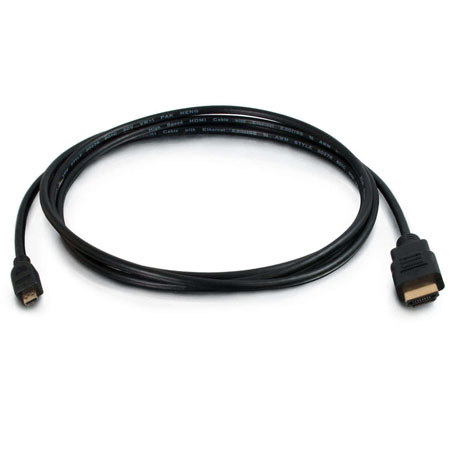

The Cables To Go 2m (6.56') High Speed HDMI with Ethernet Micro Cable is perfect for a hand-held mobile or cell phone connectivity for home theater or desktop applications requiring high speed HDMI features and video resolutions of up to 1080p. The Ethernet capabilities of the cable allow a user to connect multiple Ethernet enabled HDMI devices through a single Ethernet connection. This cable supports bandwidth applications up to 340MHz/10.2 Gbps as well as high speed HDMI features; including, 3D, Deep Color, x.v.Color, Dolby True HD and DTS-HD Master Audio.
