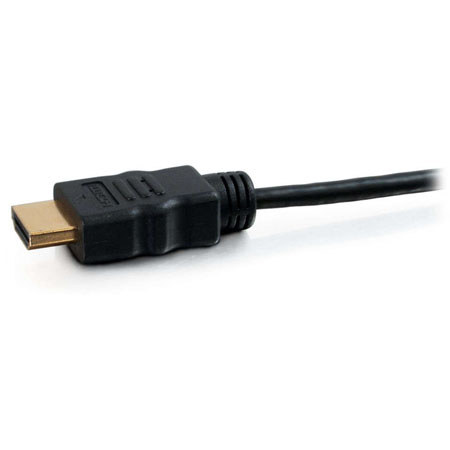

C2G 3m High Speed HDMI to Micro HDMI Cable with Ethernet, 9.8'
See all C2G items

C2G 3m High Speed HDMI to Micro HDMI Cable with Ethernet, 9.8'

SKU: C2G40317
(3)

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2022-10-10T06:26:15

Rated 5 out of 5

Worked well for me

Does the job as an HDMI cable, up to a resolution of at least 1080p. (Didn't try higher.) Connectors are fairly robust and don't feel like they'll fall apart easily, even with repeated cycling of the connections. Cable withstood being smashed in my carrying kit surprisingly well too. (Never recommended, but good to know it can!)

Ted M.

2021-11-30T08:25:56

Rated 4 out of 5

Not bad

Not bad. They do the job

GREG W.

2019-10-16T20:00:00

Rated 5 out of 5

Great cable

Works just as described. Good quality cable and fast shipping.

Higher V.

C2G 3m High Speed HDMI to Micro HDMI Cable with Ethernet, 9.8' Specifications

  • Nominal Velocity of Propagation

    10.2Gbps

  • DC Resistance

    300V

  • Dielectric Strength

    AC 500V/minute

  • Insulation Resistance

    100

  • Nominal Attenuation

    300kHz-825MHz - <5dB, 825MHz-2.475GHz - <5dB, 2.475GHz-4.125GHz - <12dB, 4.125GHz-5.1GHz - <20dB

  • Bandwidth

    340 MHz/10.2 Gbps

  • Voltage Rating

    30V

  • Minimum Bend Radius

    60deg.

  • Temperature Rating

    80deg.C

  • Operating Temperature Range

    -20deg. - 80deg.C

  • Storage Temperature Range

    -25deg. - 85deg.C

  • Conductor 1 (5 pair)

    Conductor Type: 30AWG (7/0.10), Tinned Copper
    Insulation: Foamed PE SKIN, Red/White, Brown/White, Blue/White, Green/White, Black/White, O.D.: 0.8mm
    Drain Wire: 30AWG (7/0.10), Tinned Copper
    Shield: Aluminum Foil, 100% Coverage

  • Conductor 2 (4 conductors)

    Conductor Type: 30AWG (7/0.10), Tinned Copper
    Insulation: HDPE, Yellow, Red, Green, Purple, O.D.: 0.6mm

  • Connector 1

    Connector Type: HDMI: Type A
    Pin Construction: Phosphor Copper
    Plating: 1um GoldConnector Type: HDMI: Type A
    Pin Construction: Phosphor Copper
    Plating: 1um Gold

  • Connector 2

    Connector Type: HDMI: Type A
    Pin Construction: Phosphor Copper
    Plating: 1um Gold

  • Overall Cable

    Drain Wire: 30AWG (7/0.10), Tinned Copper
    Foil Shield: Aluminum Foil +Mylar, 100% Coverage
    Braided Shield: 16/4/0.12, Aluminum/Magnesium
    Jacket: PVC, Black, O.D.: 6.0 ± 0.2mm

  • Cable Length

    3.00m (9.84')

  • Dimensions (HxWxL)

    Connectors 1: 10.00x20.10x37.10mm (0.39x0.79x1.46")
    Connectors 2: 7.30x10.50x26.30mm (0.28x0.41x1.03")

  • Weight

    0.20lbs (0.09kg)

About C2G 3m High Speed HDMI to Micro HDMI Cable with Ethernet, 9.8'

The Cables To Go 3m (9.84') High Speed HDMI with Ethernet Micro Cable is perfect for a hand-held mobile or cell phone connectivity for home theater or desktop applications requiring high speed HDMI features and video resolutions of up to 1080p. The Ethernet capabilities of the cable allow a user to connect multiple Ethernet enabled HDMI devices through a single Ethernet connection. This cable supports bandwidth applications up to 340MHz/10.2 Gbps as well as high speed HDMI features; including, 3D, Deep Color, x.v.Color, Dolby True HD and DTS-HD Master Audio.
