2020-10-08T20:00:00

Rated 5 out of 5

My new favorite!

One of the best lenses I have in my bag. This lens is sharp and fun! The build quality is one of the best in Canon L series lenses; a prime lens with a lots of tricks.

Luz M.

2018-12-22T19:06:50

Rated 5 out of 5

Great long lens for architecture

Using it for architecture. Works very well. Nice and sharp. Tilt shift mechanisms get better with each generation.

Mark J.

2018-02-06T09:35:42

Rated 5 out of 5

Learn to use the lens and you will love it.

The little I have used this lens for stills and shots of my friend I will be looking through the lens more then I had figured. I am particularly happy with the control of composition. AT a price! After the glitter is gone we’ll see if the cost is justified.

WILLIAM D.

warranty-logo

Protect your product against accidents, breakage and more!

CarePAK PLUS provided through Canon offers protection from accidental damage such as drops, spills, power surges, and more including normal wear and tear, beyond the standard warranty period.

SELECT YOUR PROTECTION PLAN:

Canon TS-E 135mm f/4.0L Specifications

General

General

Jump to...
  • Brand

    Canon

  • MPN

    2275C002

  • Lens Series

    Canon L, Canon TS-E

  • Color

    Black

  • Lens Type

    Telephoto Tilt/Shift

  • Lens Mount

    Canon EOS

  • Format Compatibility

    Full Frame

  • Focus Type

    Manual Focus

  • Focusing Technology

    Not Applicable

  • Closest Focus Distance

    19.2" / 49cm

  • Distance Information

    N/A

  • Built-In Motor

    Not Applicable

  • Focal Length

    105mm

  • Angle Of View

    18 deg.

  • 35mm Equivalent Focal Length

    Not Applicable

  • Coverage

    N/A

  • Minimum Aperture

    f/45

  • Maximum Aperture

    f/4.0

  • Maximum Magnification

    0.5x

  • Lens Coating

    Subwavelength Coating

  • Aspherical Elements

    No

  • ED Glass Elements

    Two Ultra-Low Dispersion Elements

  • Filter Size

    82mm

Construction

Jump to...
  • Lens Elements / Groups

    11 Elements / 7 Groups

  • Diaphragm Blades

    9

  • Dimensions

    3.5 x 5.5" (88.5 x 139.1mm)

  • Weight

    39.0oz / 1110g

Features

Jump to...
  • Image Stabilization Type

    None

  • Tripod Collar

    No

  • Waterproof / Water Resistant

    No

  • Dust Resistant

    No

  • UPC Code

    013803291124

17 Accessories for Canon TS-E 135mm f/4L Macro Lens

  • All Accessories (17)
  • Filters (4)
  • Bags & Cases (2)
  • Lens Caps (2)
  • Covers & Caps (1)
  • Lens Hoods (1)
  • Cleaning Accessories (3)
  • Tabletop & Tent Shooting (1)
  • Extended Warranty (3)

About Canon TS-E 135mm f/4.0L

FEATURED REVIEWS

My new favorite!

By Luz M.

One of the best lenses I have in my bag. This lens is sharp and fun! The build quality is one of the best in Canon L series lenses; a prime lens with a lots of tricks.

Great long lens for architecture

By Mark J.

Using it for architecture. Works very well. Nice and sharp. Tilt shift mechanisms get better with each generation.

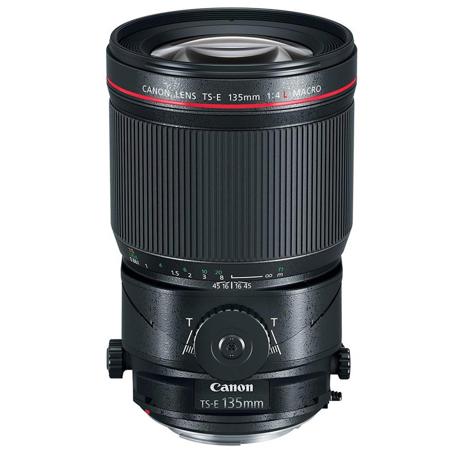

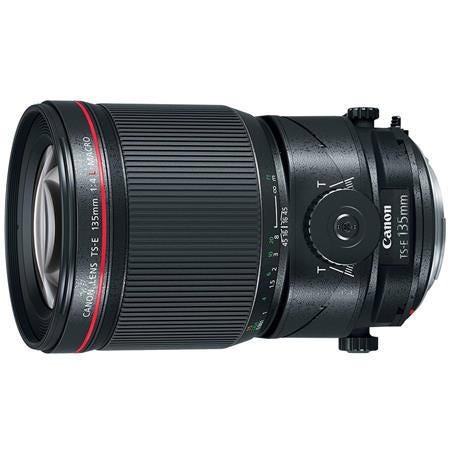

Canon TS-E 135mm f/4.0L Tilt-Shift Macro Lens

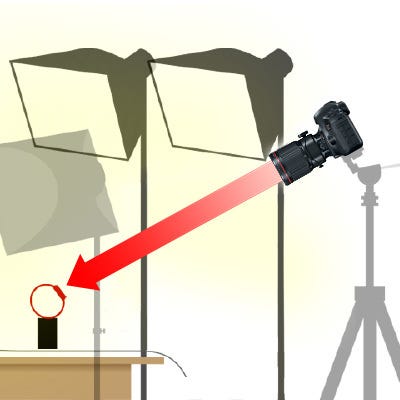

Long Focal Length for Increased Working Distance

Perfect for use in the studio, the TS-E 135mm f/4L Macro’s 135mm focal length enables a long working distance. This can be incredibly useful when used in tandem with lighting equipment that’s set up between the subject and the camera. With its maximum magnification of 0.5x and its macro specifications, the TS-E 135mm f/4L Macro is well-suited for everything from product photography to portraiture.

Long Focal Length for Increased Working Distance
Aperture

Moderate f/4 Maximum Aperture Reduces Lens Size and Weight

With a maximum aperture of f/4, the TS-E 135mm f/4L Macro delivers an optimal compromise of speed and size. Bright enough for a diverse number of applications, the f/4 maximum aperture also enables the lens to be lightweight enough for convenient use indoors, outdoors and virtually anywhere.

Two UD Lens Elements Help Reduce Chromatic Aberration

The TS-E 135mm f/4L Macro is designed to deliver the image quality necessary for detailed, high-resolution image capture. Two UD Glass lenses in an 11-element optical formula help to minimize chromatic aberration. The TS-E 135mm f/4L Macro’s optics work together to reliably deliver gorgeous, high-resolution images with sharp edge-to-edge detail.

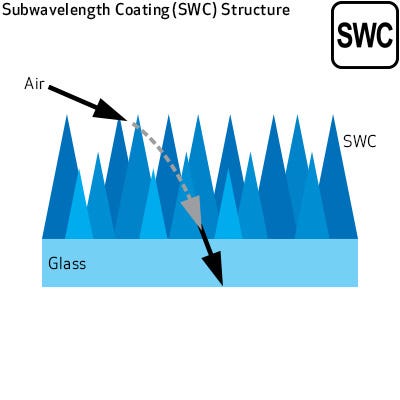

Optimized Lens Coating for Ghosting and Flare Reduction

To help minimize the ghosting and flare that reflected light can cause on image capture, the TS-E 135mm f/4L Macro features Canon’s SWC coating. Subwavelength Structure Coating (SWC) helps reduce flaring and ghosting caused by light hitting the lens at large angles, helping to deliver clear images with high contrast and minimal distracting glare.

Optimized Lens Coating for Ghosting and Flare Reduction

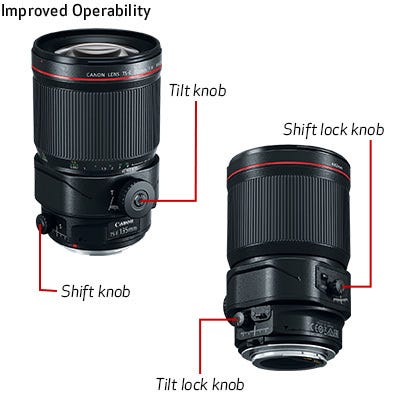

Large Tilt and Shift Knobs for Increased Operability

For greater ease of use, the TS-E 135mm f/4L Macro features enlarged knobs for fast, intuitive control of tilt and shift. Feel free to make adjustments as you please without having to take your eyes off the composition.

Large Tilt and Shift Knobs for Increased Operability

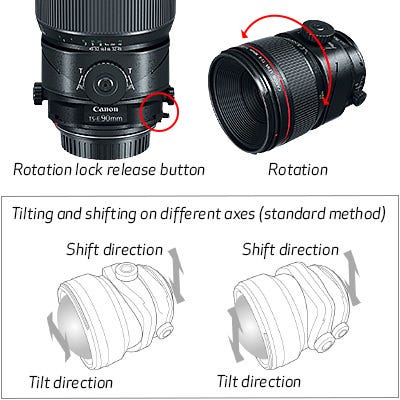

Tilt-locking Mechanism for Use When Shooting

To deliver high operability, the TS-E 135mm f/4L Macro features large tilt and shift lock knobs and a rotation lock release button. It also has a tilt-locking mechanism that keeps the lens in the zero position, helping to prevent unintended movement when in use.

Tilt-locking Mechanism for Use When Shooting

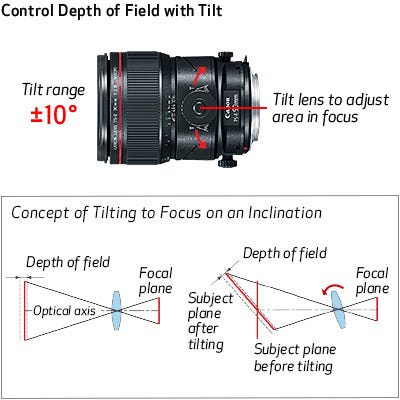

Tilt Range of ±10°

For great flexibility in shooting, the TS-E 135mm f/4L Macro features a tilt range of ±10° to deliver a high level of control. Whether focusing on a subject not parallel to the camera’s sensor, increasing or decreasing the lens’s depth of field or establishing a specific plane of focus, the TS-E 135mm f/4L Macro’s tilt range can prove indispensable in defining the composition.

Tilt Range of ±10°

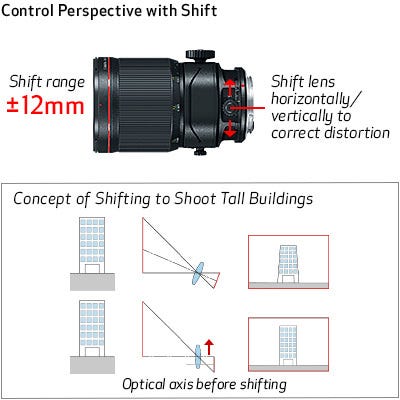

Shift Range of ±12mm

For expansive control, the TS-E 135mm f/4L Macro features an incredibly large shift range of ±12mm, enabling seemingly impossible image capture with ease. This range helps the TS-E 135mm f/4L Macro eliminate converging lines, reflections or nearby objects from the composition, recompose the image without moving the camera and even capture a wide angle of view through photo stitching.

Shift Range of ±12mm

Minimum Focusing Distance

With a minimum focusing distance of 19 in./0.49m, the TS-E 135mm f/4L Macro is incredibly well-suited for close-up photography. Combined with its expanded range of movements, its minimum focusing distance helps make sharp and detailed close-up images with specifically defined depth of field a reality.

Maximum Magnification

Thanks to a maximum magnification of 0.5x, the TS-E 135mm f/4L Macro is well-suited for capturing images of small objects. Whether shooting photos of still life, product photography or anything in between, its combination of maximum magnification, close focusing distance and expanded movements enables a truly phenomenal level of control for even the most challenging subjects.

Features

  • High-performance L-series Lens.
  • Long Focal Length for Increased Working Distance.
  • Moderate f/4 Maximum Aperture Reduces Lens Size and Weight.
  • Two UD Lens Elements Help Reduce Chromatic Aberration.
  • Optimized Lens Coating for Ghosting and Flare Reduction.
  • Large Tilt and Shift Knobs for Increased Operability.
  • Tilt-locking Mechanism for Use When Shooting.
  • Tilt Range of ±10°.
  • Shift Range of ±12mm.
  • Minimum Focusing Distance of 19 in./0.49m.

What's in the box:

  • TS-E 135mm f/4.0L Tilt-Shift Macro Lens
  • Front & Rear Lens Caps
  • ET-88 Lens Hood
  • LP1219 Lens Case
  • Unit Option Cap
  • Canon 1 Year Warranty
