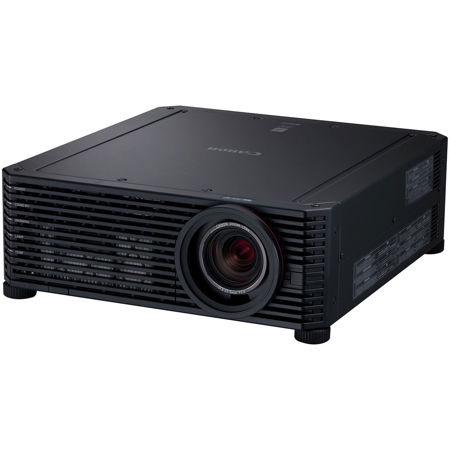

Canon REALiS 4K501ST Pro AV 4K LCoS Projector, 4096x2400, 5000 Lumen

SKU: CA4K501ST

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the native resolution of the REALiS 4K501ST Pro AV 4K LCoS Projector?

The native resolution of the REALiS 4K501ST Pro AV 4K LCoS Projector is DCI-4K wide (4096x2400).

What is the lumen output of the REALiS 4K501ST Pro AV 4K LCoS Projector?

The REALiS 4K501ST Pro AV 4K LCoS Projector has a high lumen output of 5000, ensuring bright and clear images even in well-lit environments.

What type of lens does the REALiS 4K501ST Pro AV 4K LCoS Projector have?

The projector is equipped with a Genuine Canon 4K short focus wide zoom lens, which is designed to produce sharp, distortion-free images.

What is the frame rate for 4K video playback on the REALiS 4K501ST Pro AV 4K LCoS Projector?

The REALiS 4K501ST Pro AV 4K LCoS Projector can reproduce uncompressed 4K video at up to 60 frames per second.

What connectivity options does the REALiS 4K501ST Pro AV 4K LCoS Projector offer?

The projector offers versatile connectivity options, including two HDMI 2.0 inputs and four DVI inputs. It's also compatible with Crestron Room View and AMX Device Discovery for easy integration into existing systems.

Reviews about this item

Review Summary

Canon REALiS Specifications

Projector

Projector

Jump to...
  • Imaging Device

    0.76", LCoS Panel x3

  • Native Aspect Ratio

    17:10 Approx. (128:75)

  • Native Resolution

    4096 x 2400

  • Brightness

    5000/3750 Lumens

  • Uniformity

    0.88

  • Contrast Ratio

    3000:1 (Native)

  • Digital Keystone

    V:+/-20 deg. , H:+/-20 deg.

  • Image Size

    40 - 600" (1016.00 - 15240.03mm)

Image Adjustments

Jump to...
  • Image Mode

    Standard / Presentation / Dynamic / Photo/sRGB / Video / DICOM SIM / User (1-3)

  • Color Adjustment

    Color Level, Color Balance, Color Temperature, Gain (R,G,B), Offset (R,G,B)

  • Screen Color Correction

    Normal / Greenboard / Adjust (custom)

  • Mounting

    Front, Rear, Ceiling, Upward, Downward

  • Adjustable Feet

    Four locations at bottom. Extension length = 0.47"

Image Signals

Jump to...
  • Scanning Frequency

    H: 18.000kHz - 149.096kHz, V: 23.956Hz - 60.000Hz

  • HDMI (Single)

    640 x 480, 720 x 480, 720 x 576, 800 x 600, 1280 x 720, 1024 x 768, 1366 x 768, 1440 x 900, 1280 x 1024, 1920 x 1080, 2048 x 1080, 2560 x 1080, 1920 x 1200, 2048 x 1200, 2560 x 1440, 2560 x 1600, 3840 x 2160, 4096 x 2160

  • HDMI (1 x 2)

    1280 x 480, 1440 x 480, 1440 x 576, 2560 x 720, 3840 x 1080, 2560 x1600, 3840 x 2160, 4096 x 2160, 3200 x 2400, 3840 x 2400

  • DVI-D (Single)

    640 x 480, 800 x 600, 1280 x 720, 1024 x 768, 1366 x 768, 1440 x 900, 1280 x 1024, 1920 x 1080, 2048 x 1080, 2560 x 1080, 1920 x 1200, 2048 x 1200, 2560 x1440, 3840 x 2160, 4096 x 2160

  • DVI-D (1 x 2)

    2560 x 1080, 2560 x 1440, 2560 x 1600, 3840 x 2160, 4096 x 2160

  • DVI-D (2 x 2)

    3840 x 2160, 4096 x 2160, 4096 x 2304, 3200 x 2400, 3840 x 2400, 4096 x 2400

  • DVI-D (1 x 4)

    3840 x 2160, 4096 x 2160, 4096 x 2304, 4096 x 2400

  • Dot Clock

    594.00 (Maximum)

Terminals

Jump to...
  • DVI-D

    Digital PC Input (x4)

  • HDMI

    Digital PC /Digital Video Input (x2

  • Mini Jack

    Audio Input (x1), Audio Output (x1) Wired Remote Control Connection

  • Dsub9

    RS-232C

  • USB Type A

    USB Connection

  • RJ-45

    Network Connection (1000BASE-T / 100BASE-TX / 10BASE-T)

Remote Control

Jump to...
  • Wireless Remote

    Yes

Built-In Sound

Jump to...
  • Internal Speaker

    5W, Monaural

  • Type

    Super High Pressure Lamp

  • Life

    3000/4000 Hours

  • Power

    400/300W

  • F Number, Focal Length

    F2.6, f=17.2-22.3mm

  • Zoom

    1.3x

  • Focus

    Powered

  • Throw Ratio

    1.0:1 - 1.3:1

General

Jump to...
  • Fan Noise

    39/34dB

  • Power Consumption

    600/475W

  • Standby Power Consumption

    0.8/0.4W

  • Heat Dissipation

    Up to 2,048 BTU/h

  • Power Voltage

    AC100 - 240V, 50/60 Hz

  • Operating Temperature

    32 to 104 deg. F (0 to 40 deg. C)
    20%RH - 85%RH

  • Storage Temperature

    -4 to -140 deg. F (-20 to -96 deg. C)

  • Dimensions (WxHxD)

    18.5 x 6.9 x 21" (469.90 x 175.26 x 533.40mm)

  • Weight

    39.6 lbs (17.96kg)

1 Accessories for Canon REALiS 4K501ST Pro AV 4K LCoS Projector, 4096x2400, 5000 Lumen

  • All Accessories (1)
  • Stands (1)

About Canon REALiS

Experience the power and precision of the REALiS 4K501ST Pro AV 4K LCoS Projector, a high-quality and advanced piece of technology designed for professional settings. With a native resolution of DCI-4K wide (4096x2400), this projector delivers clear, detailed images that exceed both the DCI 4K cinema standard and 4K TV's QFHD. Its high lumens rating of 5000 ensures bright, vivid images even in well-lit environments.

This innovative projector is equipped with a Genuine Canon 4K short focus wide zoom lens, featuring advanced spherical focus technology. The lens significantly reduces chromatic aberration, curvilinear distortion, ghosting, and flare, resulting in sharp, clear images with smooth edges.

The REALiS 4K501ST is the newest addition to the REALiS Projector series, all of which feature Canon's proprietary LCoS (Liquid Crystal on Silicon) Technology with AISYS-enhancement. This technology ensures seamless images with outstanding color reproduction and low-latency.

The projector also features high-speed dual image processing engines that reproduce uncompressed 4K video at up to 60 frames per second. It also includes two upscaling technologies that maximize the quality of 2K video and other non-native 4K resolution content.

Designed with flexibility in mind, the REALiS 4K501ST is compact and lightweight, making it easy to install in a variety of settings. It offers 360-degree vertical positioning and generous Motorized Lens Shift for a high level of installation flexibility.

With its versatile connectivity options, including two HDMI 2.0 inputs and four DVI inputs, this projector can seamlessly integrate into existing systems. It's compatible with Crestron Room View and AMX Device Discovery for extra control and ease of use.

In summary, the REALiS 4K501ST Pro AV 4K LCoS Projector is a powerful, high-quality solution for professional projection needs. Its high resolution, brightness, and advanced features make it an ideal choice for a wide range of industries and applications.

Canon REALiS Features

  • High-quality 4K resolution (4096x2400) for clear, detailed images
  • Bright 5000 lumen output for vivid projections in well-lit environments
  • Equipped with Genuine Canon 4K short focus wide zoom lens for sharp, distortion-free images
  • Features Canon's proprietary LCoS (Liquid Crystal on Silicon) Technology with AISYS-enhancement for seamless, color-accurate images
  • High-speed dual image processing engines for smooth 4K video playback at up to 60 frames per second
  • Versatile connectivity options, including two HDMI 2.0 inputs and four DVI inputs, for seamless integration into existing systems

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • High-quality 4K resolution (4096x2400) for clear, detailed images
  • Bright 5000 lumen output for vivid projections in well-lit environments
  • Equipped with Genuine Canon 4K short focus wide zoom lens for sharp, distortion-free images

What's in the box:

  • Canon REALiS 4K501ST Pro AV 4K LCoS Projector
  • Lens Cap
  • Power Cord
  • Projector Remote Control RS-RC05 (Includes two AA batteries)
  • Lamp RS-LP10F
  • Important Information Guide (Book)
  • User's Manual (CD-ROM)
  • Canon 3 Year for Projector and 120 Day for Lamp Warranty
