Review Summary
0.76", 3x LCoS Panel
17:10 Approx. (128:75)
4096 x 2400
6000/4560/2400 Lumens
0.8
4000:1 (Native)(all white: all black)
V:+/-20deg., H:+/-20deg.
40-600" (4096x2400)
F2.6 - F2.75, f=22.7 - 39.8mm
1.76x
Powered
1.3 - 2.4:1
Standard / Presentation / Dynamic / Photo/sRGB / Video / DICOM SIM / User 1 / User 2 / User 3
Color Level, Color Balance, Color Temperature, Gain (R,G,B), Offset (R,G,B)
Normal / Greenboard / Adjust (custom)
Omnidirectional
V: +/-60%, H: +/-10% (powered)
Four Locations at bottom. Extension length = .59"
H: 18.000kHz - 149.970kHz, V: 23.956Hz - 60.000Hz
640 x 480, 720 x 480, 720 x 576, 800 x 600, 1280 x 720, 1024 x 768, 1366 x 768, 1440 x 900, 1280 x 1024, 1920 x 1080, 2048 x 1080, 2560 x 1080, 1920 x 1200, 2048 x 1200, 2560 x 1440, 2560 x 1600, 3840 x 2160 , 4096 x 2160
1280 x 480, 1440 x 480, 1440 x 576, 2560 x 720, 3840 x 1080, 2560 x1600, 3840 x 2160, 4096 x 2160, 3200 x 2400, 3840 x 2400
640 x 480, 800 x 600, 1280 x 720, 1024 x 768, 1366 x 768, 1440 x 900, 1280 x 1024, 1920 x 1080, 2048 x 1080, 2560 x 1080, 1920 x 1200, 2048 x 1200, 2560 x1440, 3840 x 2160, 4096 x 2160
2560 x 1080, 2560 x 1440, 2560 x 1600, 3840 x 2160, 4096 x 2160
3840 x 2160, 4096 x 2160, 4096 x 2304, 3200 x 2400, 3840 x 2400, 4096 x 2400
3840 x 2160, 4096 x 2160, 4096 x 2304, 3840 x 2400, 4096 x 2400
DVI-D: 4x Digital PC Input
HDMI: 2x Digital PC /Digital Video Input
Mini Jack: 1x Audio Input, 1x Audio Output, Wired Remote Control Connection
Dsub9: RS-232C
USB Type A: USB Connection
Wi-Fi: IEEE 802.11b, IEEE 802.11g, IEEE 802.11N
RJ-45: Network Connection (1000BASE-T / 100BASE-TX / 10BASE-T)
IR
5W, Monaural
Blue laser diode, yellow phosphor
20,000 hours
37/32/29dB
665W
0.8/0.4W
AC 100 - 240V: 50/60Hz
32 to 113 deg. F (0 to 45 deg. C)
20%RH - 85%RH
-4 to 140 deg. F (-20 to 60 deg. C)
22 x 7.9 x 24.5" (55.88 x 20.07 x 62.23cm)
57.3 lbs (25.99kg)
013803296358

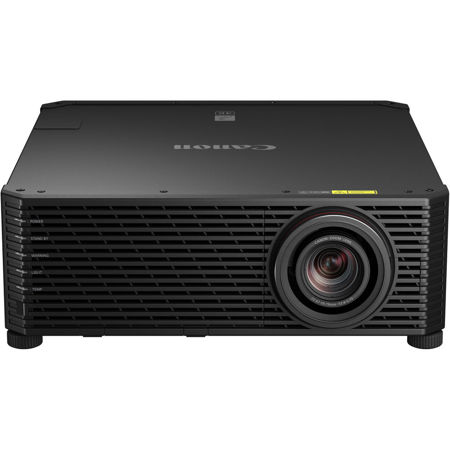

It's time to elevate your visual experience with the REALiS 4K600Z Pro AV LCoS 4K Laser Projector. This high-performance projector boasts an impressive native 4K resolution of 4096x2400, delivering incredibly detailed and immersive images that are sharper and more lifelike than lower resolutions.
The projector is powered by Canon's advanced AISYS optical system and dual image processors, which work together to produce a rich, detail-oriented 4K resolution. With a high brightness of 6000 lumens and a dynamic contrast ratio of up to 10,000:1, the REALiS 4K600Z creates outstanding, lifelike images that are sure to captivate your audience.
One of the standout features of this projector is its Marginal Focus, which ensures edge-to-edge focus onto domed surfaces. This, combined with the practical benefits of a laser phosphor light source that provides up to 20,000 hours of virtually maintenance-free operation, makes the REALiS 4K600Z a reliable choice for a wide range of applications.
Whether you're showcasing highly detailed works of art in a museum or gallery, or producing highly accurate video and images for a simulation system, this projector's high resolution and dynamic contrast ratio deliver bright, engaging images that are sure to impress.
The REALiS 4K600Z also features a laser light source that offers longevity, versatile installation, and a wide color range. With up to 20,000 hours of continuous, high-quality projection in standard use, this projector is virtually maintenance-free, making it a cost-effective choice for challenging and hard-to-reach installations.
With its compact and lightweight design, the REALiS 4K600Z is easy to install and operate. Despite its small size, it delivers outstanding performance, thanks to Canon's cutting-edge optical design and AISYS Optical Engine.
The projector also features LCoS technology with AISYS-enhancement, which offers seamless images with exceptional color reproduction. With Canon's proprietary AISYS (Aspectual Illumination System) Optical Engine, the projector delivers superior reflectivity and durability while accomplishing high luminance.
The built-in specialized 4K standard focus zoom lens projects virtually distortion-free 4096 x 2400 resolution images. The lens features a multitude of sophisticated Canon technologies, such as dual-sided aspherical lens elements and Ultra Low Dispersion (UD) lens elements, which significantly reduce chromatic aberration, curvilinear distortion, ghosting, and flare to create sharp and clear images in a compact size.
The REALiS 4K600Z Pro AV LCoS 4K Laser Projector is a versatile and reliable choice for a wide range of markets and applications, including simulation, government, museums, higher education, and medical education and training. Experience the difference of 4K resolution with the REALiS 4K600Z.
