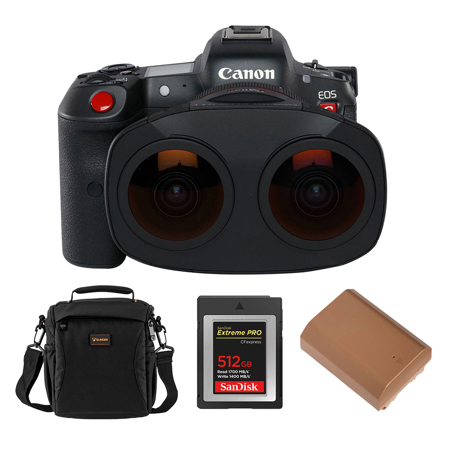

Canon EOS R5 C VR Creator Kit, Bundle with 512GB CFexpress Type-B Memory Card, LP-E6NH Li-Ion Battery and Shoulder Bag

Digital single-lens non-reflex AF/AE camera

DIGIC X

CFexpress card:
Type B: Card slot

SD card:
SD card speed class-compatible
Compatible with UHS-II
Eye-Fi cards and Multimedia cards (MMC) are not supported

Canon RF lens group (excluding EF, EF-S and EF-M lenses)
When using Mount Adapter EF-EOS R: Canon EF or EF-S lenses (excluding EF-M lenses)

Canon RF mount

CMOS sensor (compatible with Dual Pixel CMOS AF)

Approx. 45.0 megapixels

Approx. 36 x 24mm

Approx. 4.40 microm square

Approx. 47.1 megapixels

3:2 (Horizontal: Vertical)

RGB primary color filters

Installed in front of the image sensor, non-detachable

Self Cleaning Sensor Unit:
Removes dust adhering to the low-pass filter
At power off only / Enable / Disable. Performed automatically (taking about approx. 2 sec. as indicated on the screen) or manually (taking about approx. 8 sec. as indicated on the screen)
After manually activated cleaning, the camera will automatically restart (Power OFF to ON)

When (Multi Shot Noise Reduction), (Multiple exposures), or (HDR mode) is set, (Clean now) and (Clean manually) cannot be selected

Dust Delete Data acquisition and appending:
The coordinates of the dust adhering to the low-pass filter are detected by a test shot and appended to subsequent images

The dust coordinate data appended to the image is used by the EOS Canon Digital Professional Software (v. 4.14 and higher) to automatically erase the dust spots
Not available with EF-S lenses, in cropped shooting or multi-exposure shooting

Manual cleaning (by hand)

Compliant to Design rule for Camera File system 2.0 and Exif 2.3

JPEG, HEIF, RAW (CR3, 14 bit RAW format), C-RAW (Canon original); Movies: ALL-I, IPB, RAW

1 shot only
Continuously
Multiple Exposure

Focus Bracketing
Interval Timer
Bulb Timer
Multi-Shot NR

3:2 Aspect Ratio
Large/RAW/C-RAW: 8192 x 5464
Medium: 5808 x 3872
Small 1: 4176 x 2784
Small 2: 2400 x 1600

1.6x (Crop)
Large/RAW/C-RAW: 5088 x 3392
Small 2: 2400 x 1600

4:3 Aspect Ratio
Large: 7280 x 5464
Medium: 5152 x 3872
Small 1: 3712 x 2784
Small 2: 2112 x 1600
RAW/C-RAW: 8192 x 5464

16:9 Aspect Ratio
Large: 8192 x 4608
Medium: 5808 x 3264
Small 1: 4176 x 2344
Small 2: 2400 x 1344
RAW/C-RAW: 8192 x 5464

1:1 Aspect Ratio
Large: 5456 x 5456
Medium: 3872 x 3872
Small 1: 2784 x 2784
Small 2: 1600 x 1600
RAW/C-RAW: 8192 x 5464

Values for Recording Pixels are rounded to the nearest 100,000 or 10,000
For RAW and JPEG images, information outside the cropping area is not retained
JPEG images are generated in the set aspect ratio
RAW images are generated in (3:2), and the set aspect ratio is appended

Simultaneous recording of any combination of RAW/C-RAW and JPEG/HEIF image-recording quality is supported

Selectable between sRGB and Adobe RGB

Auto
Standard
Portrait
Landscape
Fine Detail
Neutral
Faithful
Monochrome
User Defined 1-3

Auto (Ambience priority/White priority)
Daylight
Shade
Cloudy
Tungsten light
White fluorescent light
Flash
Custom (Custom WB)
Color temperature

Option between ambience priority and white priority settings.

Blue/amber bias: +/-9 levels
Magenta/green bias: +/-9 levels
Corrected in reference to the current WB mode's color temperature

OLED color electronic viewfinder; approx. 5.76 million dots resolution

Approx. 100% vertically and horizontally relative to the shooting image area (with image quality L, at approx. 23mm eyepoint)

Approx. 0.76x / Approx. 35.5 degrees (with 50mm lens at infinity, -1 m-1)

Approx. 23mm (at -1 m-1 from the eyepiece lens end)

Approx. -4.0 to + 2.0 m-1 (dpt)

Maximum burst
Possible shots/Sec. until self-timer shoots
Focus Bracketing/ Multiple-exposure/HDR shooting/Multi Shot Noise Reduction/Bulb time/Interval timer
Shooting mode
AF method
AF operation
Image quality
Card
Drive mode
Metering mode
No. of remaining shots for focus bracketing, multiple exposures, or interval timer
Electronic level

Movie recording time available
Battery level
Image Stabilizer (IS mode)
Histogram (Brightness/RGB)
Quick Control button
Anti-flicker shooting
White balance/White balance correction
Picture style
Auto Lighting Optimizer
Still photo cropping / Aspect ratio
AF point (1-point AF)
AEB/FEB
View Assist
HDR PQ

Flash ready / FE lock / High-speed sync
Electronic shutter
Touch shutter / Create folder
AE lock
Shutter speed / Multi-function lock warning
Aperture value
Wi-Fi function
Wi-Fi signal strength
Bluetooth function
Exposure simulation
Magnify button
ISO speed
Highlight tone priority
Exposure compensation
Exposure level indicator

Dual Pixel CMOS AF II

AF area: Horizontal: Approx. 100% x Vertical: Approx. 100%
Stills: Max. 1053 zones (39 x 27)
Movies: Max. 819 zones (39 x21)
(for Automatic Selection)

EV -6 to 20 (f/1.2 lens, center AF point, One-Shot AF, at 73 Degree F/23 Degree C, ISO 100)

Face+Tracking AF
Spot AF
1-point AF
Expand AF Area (Above, below, left and right/Around)
Zone AF
Large Zone AF: Vertical, Horizontal

People, Animals, No Priority

Real-time metering with image sensor (384 zones (24x16 zone metering))
(1) Evaluative metering (AF point-linked)
(2) Partial metering (approx. 6.1% of the area at the center of the screen)
(3) Spot metering (approx. 3.1% of the area at the center of the screen)
(4) Center-weighted average metering

EV -3 - 20 (at 73 Degree F/23 Degree C, ISO 100) (Still Photo Shooting)

Scene Intelligent Auto
Flexible-priority AE (Fv)
Program AE (P)
Shutter-priority AE (Safety shift possible) (Tv)
Aperture-priority AE (Safety shift possible) (Av)
Manual exposure (M)
Bulb
Custom shooting mode C1, C2, C3

Manual: +/-3 stops in 1/3- or 1/2-stop increments
AEB: +/-3 stops in 1/3- or 1/2-stop increments

Auto AE lock:
The metering mode for AE lock after one-shot focus can be customized

User-applied AE lock:
In the Fv, P, Tv, Av and M modes, enabled with the AE lock button. (Press again to update.)
Enabled in all metering modes

Mechanical
Electronic 1st-Curtain
Electronic Shutter (1st and 2nd curtain - silent)

When (Mechanical) or (Elec. 1st- curtain) is set: 1/8000-30 sec, bulb
When (Electronic) is set: 1/8000-0.5 sec

Mechanical Shutter: 1/200 sec
Elec. 1st-curtain: 1/250 sec

Soft-touch electromagnetic release

10-sec. delay, 2-sec. delay

Optical IS with RF and EF lenses equipped with Image Stabilization
Always on
Only for shot

A narrower angle of view is used when digital image stabilization is selected in the menu. This is equivalent to approx. 1.1x longer focal length when Electronic Image Stabilization mode (Standard) is selected. Also, this is equivalent to approx. 1.43x longer focal length when Electronic Image Stabilization mode (High) is selected

Ambience priority, standard, flash priority

Canon EX- and EL-series Speedlites

Evaluative (Face Priority)
Evaluative
Average

1/250 - 30 sec., auto
1/250 - 1/60 sec., auto
1/250 sec. (fixed)

Provided for EX- and EL-series Speedlites

+/-3 stops in 1/3- or 1/2-stop increments

1. E-TTL each shot
2. E-TTL 1st shot

Disable / Enable

Recording format: HEIF
Bit depth: 10 bit
HDR specification: ITU-R BT.2100 (PQ)

Dual Pixel CMOS AF

+/-3 stops in 1/3- or 1/2-stop increments

Provided (Off / Canon Log 3)

TFT color, liquid-crystal monitor

3.2" (screen aspect ratio of 3:2)
3.15" (8.01cm0 diagonal (2.63" (6.67cm) width, 1.75" (4.44cm) height)

Approx. 2.1 million dots

Approx. 100% vertically/horizontally

Manually adjustable to one of seven brightness levels

Clear View LCD II:
Anti-smudge coating applied
Anti-reflection coating not applied

29 (English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Ukraine, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Vietnamese, Hindi, Romanian, Turkish, Arabic, Thai, Simplified/Traditional Chinese, Korean, Malay, Indonesian, Japanese)

The white areas with no image data will blink.

Brightness and RGB

The Quick Control screen is accessed by pressing the Quick Control button during still photo shooting

Single image (select image)
Select range
All images in a folder
All images on card
Image browsing and image search can be based on ratings
Ratings-based image selections also possible with DPP

All found images (only during image search)

Except protected images
(1) Select images to erase
(2) Select range
(3) All images in folder
(4) All images on card
(5) All found images (only during image search)

Not supported

Compliant to DPOF Version 1.1

IEEE 802.11a/ac/b/g/n

DS-SS modulation (IEEE 802.11b)
OFDM modulation (IEEE 802.11g/n/a/ac)

2.4 GHz band:
Frequency: 2412 to 2462 MHz
Channels: 1 to 11 channels

5 GHz band:
Frequency: 5180 to 5825 MHz
Channels: 36 to 165 channels

Camera access point mode
Infrastructure mode

Images can be viewed, controlled, and received using a smartphone.
Remote control of the camera using a smartphone is possible depending on the Camera Connect specifications.
Images can be sent to a smartphone.

The camera can be controlled via Wi-Fi using EOS Utility

Not supported

Still photos (RAW, C-RAW, HEIF, and JPEG) and movies (MP4) can be uploaded to image. Canon server album.
With the image. Canon server, images can be sent to social media or a photo album link can be sent (by the image. Canon specifications)

Bluetooth Specification Version 5.0 compliant (Bluetooth low energy technology)

GFSK modulation

22 Custom Functions are settable

Customizable Buttons:
Shutter button
Movie button
MODE button
AF-ON button
AE lock button
AF point button
Depth of field preview button
Lens AF stop button
Multi-function button
LCD panel illumination button
Set button
Multi-controller

Customizable Dials:
Main dial
Quick control dial 1 & 2
Control ring

Up to six top-tier menu items and Custom Functions can be registered
Up to five My Menu tabs can be added

My Menu tab overall operations:
Adding a tab
Deleting tabs in a batch
Deleting all tab items
Setting the menu display

My Menu tab detailed operations:
Selecting a registered item
Sorting registered items
Deleting selected registered items

Deleting registered items in a batch
Deleting tabs
Changing a tab name (16 ASCII characters)

Equivalent to Hi-Speed USB (USB 3.1 Gen 2)
For PC communication
Terminal type: USB Type-C
Shared with terminal for in-camera charging with USB Power Adapter PD-E1
In-camera Charging: Equivalent to USB type-C (5 V/1.5 A), but use should be restricted to USB Power Adapter PD-E1
Video Output (UVC)
Canon App(s) for iPhone
PTP connection/GP-E2

HDMI micro OUT terminal Type D (Resolution switches automatically) / CEC not compatible
Images can be displayed through the HDMI output and on screen at the same time
Images will not be displayed unless (NTSC) or (PAL) is properly set according to the video system of the TV set

Provided

3.5mm diameter stereo mini jack

3.5mm diameter stereo mini jack

LP-E6NH/LP-E6N/LP-E6
With the AC Adapter AC-E6N + DC Coupler DR-E6, AC power is possible
With the USB Power Adapter PD-E1, in-camera charging of LP-E6NH is possible. The USB Power Adapter PD-E1 is not compatible with powering the camera

Automatic battery check when the power switch is turned ON.
Displayed in 6 levels on top LCD panel
Battery level can be checked on the LCD panel and in the viewfinder

Battery Info display in Set-up Menu:
Type of power source used
Remaining capacity (percentage of battery charge remaining)
Recharge performance: (3-level display of battery's ability to hold a charge)

Approx. 0.4 sec
Based on CIPA testing standards

32-104 Degree F (0 - +40 Degree C)

Range 85% or less

Required, included

Lithium-ion

Non-universal

2

5.6 x 4.0 x 4.4" (142 x 101 x 111mm) (Approx.)

1.7 lbs (770g) (Approx.) (Including Battery, CFexpress Card; Without Body Cap)
1.5 lbs (680g)(Approx.)(Body Only)

5.2mm

f/2.8

f/16

Canon RF

Full-Frame

190 Degree

7.9" (200.7mm)

0.03x

12 Elements in 10 Groups

7

Manual Focus

No

Gel Filter (Rear)

4.8 x 3.3 x 2.1" (12.2 x 8.3 x 5.3cm)

12.4 oz (352g)

192223279193, 660685251878, 192223216884, 619659180867, 192223084001
