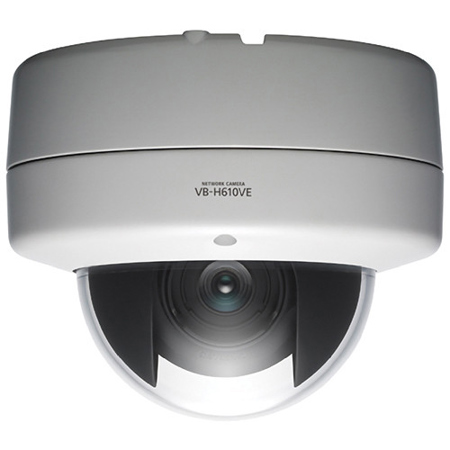

Canon VB-H610VE Full HD Vandal-Resistant Fixed Dome IP Security Camera, 2.1MP, 2.8-8.4mm F1.2-2.0 Lens, 30 fps H.264/M-JPEG Frame Rate, PoE

The VB-H610VE Full HD Vandal Resistant Fixed Dome IP Security Camera combines outstanding durability and capability, advanced control capability and superb image quality with Canon's DIGIC DV III image processor. A wide variety of applications are suited for employing the VB-H610VE, with financial, utility, military, government, airport, retail and casino gaming operations particularly well-matched. ONVIF Profile S conformant, the VB-H610VE is designed to triumph over the challenges of both the elements and adversaries in equal measure, thanks to its IP66 outdoor rating and vandal resistant dome.

Adding to the appeal of this camera is its ease in installation and exceptional low light performance. The VB-H610VE is equipped with Canon's Remote Adjustment Function which allows the Pan/ Tilt/ Rotation/ Zoom and Focus to be set from a remote location after installation. The 111 degree wide angle lens on the VB-H610VE was designed to maximize the camera's low light performance, allowing it to provide color video down to 0.3 lux and black/white video down to 0.015 lux. It also offers an impressive range of sophisticated On-board Video Analytics, with a number of set triggers, including Moving, Removed and Abandoned Object Detection and Passing Detection.

With the VB-H610VE you may choose up to 20 digital preset camera positions and combine them as you wish to create a custom tour. The camera's 2.1 Megapixel CMOS sensor provides images with far greater detail than those of a VGA security camera. Still, it can be streamed with low bandwidth utilization and disk space usage thanks to the H.264 Codec, which allows video to be streamed at eight different rates, 1/2/3/5/6/10/15/ or 30/fps. Ratings based on F1.2, 1/30 second and Smart Shade Control off.

ONVIF version 2.2/ Profile S Conformant
In addition to Canon's WebView network camera protocol, the VB-H610VE is easily adaptable to third party integration thanks to being ONVIF version 2.2 conformant. The Profile S standard included in this compatibility gives you more interoperability than found in previous network cameras. You will find it easier than ever to create a system which best meets your needs, working with compliant equipment from different manufacturers and third party recording software systems. The ONVIF Profile S allows for easy identification of supported features without the need to know the compatibility of different versions of ONVIF. Profile S includes specific features such as audio streaming and relay outputs.

IP66 Rated / Vandal Resistant
For surveillance situations in which the camera is exposed to potential damage through vandalism, the VB-H610VE is an ideal choice. Its IP66 rated enclosure protects the camera from dust and powerful water jets. In addition, the VB-H610VE has a damper mechanism allowing the lens to move 15mm inside the camera body. This combines with the shock resistant exterior to protect the camera from damage from impact due to accidents or vandalism. The VB-H610VE can be equipped for another environmental challenge through the purchase of an optional heater. This will allow the camera to be used in temperatures as low as -22deg.F.

Class Leading Low-light Performance
The VB-H610VE's high sensitivity sensor is combined with a bright lens and exceptional video quality optimization to acquire exceptional color video down to 0.05 Lux and black & white video down to 0.002 Lux. For challenging poorly lit areas or vital nighttime surveillance, this capability is a great advantage.

2.1 Megapixel CMOS Sensor
The Megapixel CMOS Sensor of the VB-H610VE ensures maximum image quality, a hallmark of Canon products. Its approximately 2.1 million pixels deliver incredibly sharp, high resolution video with far greater detail than that of a VGA resolution camera. The result is clearer, more useful video monitoring.

Genuine Canon 111.0deg. Wide Angle Lens
Canon's well known excellence in lens technology is responsible for the superb visual quality and image consistency of the VB-H610VE's 111.0deg. wide angle, 3x Optical Zoom lens. The broad range delivered by this lens gives a wide angle of view of your location and its superb optical quality gives you a clear and sharp image through the entire field of view.

Remote Adjustment Function
Even the most challenging and difficult installation locations become far more manageable with the Remote Adjustment Function of the Canon VB-H610D. After the camera is mounted, it's simple to get the exact lens position for your needs thanks to built-in motors that allow you to change the pan, tilt, rotation, zoom and focus from the comfort of a remote location after the camera is installed.

On-board Video Analytics
The VB-H610VE is packed with features which enhance its functionality and usability. Among the most useful are its sophisticated On-board Video Analytics, enabling the camera to detect Moving, Abandoned or Removed Objects in its range of vision and also detect attempts at Camera Tampering and changes in Sound Levels. In addition, Passing Detection has been added to the list to enhance the monitoring capabilities of the VB-H610VE. It allows you to trigger an alert when a set line has been passed in a defined direction.

For increased control in monitoring sensitive areas, the VB-H610VE also offers a Privacy Mask function. With it, you can block specific sections of the camera's field of view, to avoid intrusions of privacy or password theft.

Thanks to the VB-H610VE's impressive algorithm, highly precise detection is achieved using polygonal and rectangular shapes to specify up to 15 areas of detection. Adding polygonal to rectangular shapes allows for increased flexibility in detection areas. An additional benefit comes from the provision for notification of a detection through the network from the camera using a number of functions. They include automatic recording, e-mail transmission and uploading videos and images to a specified target server. It is also possible to combine a number of detection functions for simultaneous notification.

• Moving Object Detection
• Removed Object Detection
• Abandoned Object Detection
• Camera Tampering Detection
• Sound Level Detection
• Passing Detection
• Privacy Mask Function

On Screen Display
The usefulness of the VB-H610VE is considerably enhanced with the On-screen Display feature. This allows the camera to support an on-screen display that can contain time, date and a text field to further define the monitored location, making it easier to identify.

DIGIC NET Processor / DIGIC DV III Image Processor
The high-quality images captured by the VB-H610VE are due in no small part to Canon's proprietary processing technologies. One is the latest version of Canon's hardware-based compression engine, DIGIC NET II. This powerful processor allows the VB-H610VE to simultaneously deliver both H.264 and JPEG video in high resolution 1920 x 1080 at the maximum frame rate of 30fps with no loss in frame rate, unlike many competing models. The other is Canon's powerful image DIGIC DV III processor. As employed in Canon's class-leading video camcorders and unlike most security cameras, DIGIC DV III provides superior image quality with lifelike colors, tonal accuracy and reduced image noise - all with lower power consumption.

H.264 Codec
he H.264 Codec, with the flexibility of adjustable I-frame, gives the VB-H610D superb image compression. It delivers high resolution images combined with small data size, giving you the benefit of low bandwidth and storage utilization. The cost savings to infrastructure and overhead are considerable, with the added plus of reduced data storage capability needs.

Smart Shade Control
Smart Shade Control or SSC, is an exclusive Canon technology that automatically adjusts images which may have a bright background by adjusting the gain of the underexposed areas without affecting the exposure of the properly exposed areas. This feature helps to make backlit images easier to see and vital areas of interest easier to monitor.

Auto Day / Night Capability
As the available light changes, the Auto Day/Night feature allows this camera to automatically adjust to maintain optimal image quality. A removable IR cut filter and optimized IR light reflection suppression coating allow for exceptional low light visibility with minimal ghosting.

Various Power Options
The VB-H610D continues to demonstrate versatility by accepting a variety of power options. Choose between 12vDC, 24vAC or PoE. Power over Ethernet (IEEE 802.3af) - allows the use of a single LAN cable to both power the camera and transfer video and audio data when connected to a Power over Ethernet switch or PoE injector. This eliminates the need to run AC connections to the installation sites of the cameras, which can help to keep installation costs to a minimum.

Built-in SD Memory Card Slot
The VB-H610VE has a built-in SD Memory Card slot which supports SD, SDHC and SDXC memory cards. It allows streamed images from the camera to be saved to an SD card, giving reliable backup in the event of network power failures or outages. In addition, when issues occur, system logs are also created and stored on the SD card for future troubleshooting. An administrative tool, Recorded Video Tool allows you to search, download and view the recorded video.
