Canon TS-E 90mm f/2.8L Macro Lens

SKU: CA9028 MFR: 2274C002
Earn VIP Reward Points

Key Features

  • Capture stunning detail with the Canon 90mm macro lens, perfect for close-up photography.
  • Achieve unique perspectives using the tilt-shift functionality for creative control of focus.
  • Enjoy exceptional image quality with L-series optics and advanced Air Sphere Coating.
  • The f/2.8 maximum aperture excels in low light, offering beautiful bokeh in your shots.
  • Manual focus allows precise control, ideal for intricate macro and portrait work.
  • Create incredible portraits with a medium telephoto lens, perfect for Canon EOS cameras.
See More Product Details
Overview
Compare
Compatibility
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2018-01-02T12:43:50

Rated 3 out of 5

value of the lens

I found the lens, at the f/8 settings to be no sharper than the older TE-S 90mm. It is heavier and very expensive. The only improvement was being able to easily change the shift tilt orientation, but even that caused problems. You can only rotate the lens 90 deg on the camera. Aligning the shift tilt directions puts the control knobs on the same side and makes it hard to adjust. Not very good value relative to the older lens.

EUGENE K.

warranty-logo

Protect your product against accidents, breakage and more!

CarePAK PLUS provided through Canon offers protection from accidental damage such as drops, spills, power surges, and more including normal wear and tear, beyond the standard warranty period.

SELECT YOUR PROTECTION PLAN:

Canon TS-E 90mm f/2.8L Specifications

General

General

Jump to...
  • Lens Mount

    Canon EF Mount

  • Lens Format

    Full Frame

  • Lens Type

    Medium Telephoto, Macro

  • Compatibility

    All Cine Cameras: ARRI ALEXA Mini, Blackmagic Design Cinema Camera, Blackmagic Design Cinema Camera, Blackmagic Design Cinema Camera, Blackmagic Design Cinema Camera 6K, Blackmagic Design PYXIS 6K, Blackmagic Design Pocket Cinema Camera 6K, Blackmagic Design Pocket Cinema Camera 6K G2, Blackmagic Design Pocket Cinema Camera 6K Pro, Blackmagic Design Production 4K, Blackmagic Design URSA 4.6K, Blackmagic Design URSA Cine 12K, Blackmagic Design URSA Mini 4.6K, Blackmagic Design URSA Mini 4K, Black

  • Lens Series

    Canon TS-E, Canon L Series

  • Special Features

    Tilt/Shift

  • Kit Style

    Base

  • MPN

    2274C002

  • Color

    Black

  • Focus Type

    Manual Focus

  • Closest Focus Distance

    1.28 / 39cm

  • Distance Information

    No

  • Built-In Motor

    No

  • Fixed Focal Length

    90mm

  • Maximum Aperture

    f/2.8

  • Filter Size

    77mm

  • Angle Of View

    27°

  • Minimum Aperture

    f/45

  • Maximum Magnification

    0.5x

  • Lens Coating

    Air Sphere Coating

  • Aspherical Elements

    One Aspherical Element

  • ED Glass Elements

    One Ultra-Low Dispersion Elements

Features

Jump to...
  • Image Stabilization Type

    No

  • Tripod Collar

    No

  • Waterproof / Water Resistant

    No

  • Dust Resistant

    No

Construction

Jump to...
  • Lens Elements / Groups

    11 Elements in 9 Groups

  • Diaphragm Blades

    9

  • Weight

    2.01lb / 915g

  • Dimensions

    3.42 x 4.59" / 86.9 x 116.5mm

  • UPC Code

    013803291100

19 Accessories for Canon TS-E 90mm f/2.8L Macro Lens

  • All Accessories (19)
  • Filters (5)
  • Bags & Cases (2)
  • Cap Leash (1)
  • Covers & Caps (2)
  • Lens Caps (1)
  • Lens Hoods (1)
  • Cleaning Accessories (3)
  • Light And Light Accessories (1)
  • Extended Warranty (3)

Designed For Use With:

  • Canon 5D
  • Canon 5D Mark II
  • Canon 5D Mark III
  • Canon 5D Mark IV
  • Canon 5DS
  • Canon 5DS R
  • Canon 6D
  • Canon 6D Mark II
  • Canon 1DX Mark III
  • Canon T7i
  • Canon 1DS Mark II
  • Canon 1DX
  • Canon 1DX Mark II

Compatible With Restrictions:*

* If using a APS-C Lens on a Full Frame Camera OR Full-Frame Lens on a APS-C Camera then Image sensor will be narrowed down to APS-C size.

  • Canon 10D
  • Canon 60D
  • Canon 60DA
  • Canon 70D
  • Canon 77D
  • Canon 7D
  • Canon 7D Mark II
  • Canon 80D
  • Canon 90D
  • Canon SL1
  • Canon SL2
  • Canon SL3
  • Canon T2i / 550D
  • Canon T3
  • Canon T3i
  • Canon T4i / 650D
  • Canon T5
  • Canon T5i / 700D
  • Canon T6
  • Canon T6i
  • Canon T6s
  • Canon T7
  • Canon T8i
  • Canon XS
  • Canon XSi / 450D
  • Canon XTi

Need Help?

For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.

Models
Canon TS-E 90mm f/2.8L Macro Lens

SKU: CA9028

MFR: 2274C002

$2,399.00

In Stock

Canon EF 100mm f/2.8L Macro IS USM Lens
$1,299.00

$1,399.00

Save:$100.00 (7%)

In Stock

Venus Laowa 15mm f/4 1:1 Macro Lens w/100mm f/2.8 Ultra Macro Lens for Canon EF
$998.00

Temporarily On Backorder

Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped.

CompatibilityCanon 1DS Mark II, Canon 1DX, Canon 1DX Mark II, Canon 1DX Mark III, Canon 5D, Canon 5D Mark II, Canon 5D Mark III, Canon 5D Mark IV, Canon 5DS, Canon 5DS R, Canon 6D, Canon 6D Mark II, Canon T7iCanon 1DS Mark II, Canon 1DX, Canon 1DX Mark II, Canon 1DX Mark III, Canon 5D, Canon 5D Mark II, Canon 5D Mark III, Canon 5D Mark IV, Canon 5DS, Canon 5DS R, Canon 6D, Canon 6D Mark II, Canon T7iCanon 1DS Mark II, Canon 1DX, Canon 1DX Mark II, Canon 1DX Mark III, Canon 5D, Canon 5D Mark II, Canon 5D Mark III, Canon 5D Mark IV, Canon 5DS, Canon 5DS R, Canon 6D, Canon 6D Mark II, Canon T7i
Special FeaturesTilt/ShiftImage StabilizationTilt/Shift
Kit StyleBaseBaseBase
Lens TypeMacro, Medium TelephotoMacro, Medium TelephotoMacro, Medium Telephoto, Ultra-Wide Angle
Filter Size77mm67mm77mm
Fixed Focal Length90mm100mmKits
Lens MountCanon EF MountCanon EF MountCanon EF Mount
Maximum Aperturef/2.8f/2.8f/4

About Canon TS-E 90mm f/2.8L

Large f/2.8 Maximum Aperture

Large f/2.8 Maximum Aperture

With a large f/2.8 maximum aperture, the TS-E 90mm f/2.8L Macro is extremely bright, excellent for composing images and for quick shutter speeds – even at low ISO speeds. This means striking portraits, minimized movement even in windy conditions and high flexibility for low-light situations.

UD Lens Element Helps Reduce Chromatic Aberration

The TS-E 90mm f/2.8L Macro is designed to deliver the image quality necessary for detailed, high-resolution image capture. A UD Glass lens in an 11-element optical formula helps to minimize chromatic aberration. The TS-E 90mm f/2.8L Macro’s optics deliver gorgeous, high-resolution images with sharp edge-to-edge detail.

UD Lens Element Helps Reduce Chromatic Aberration

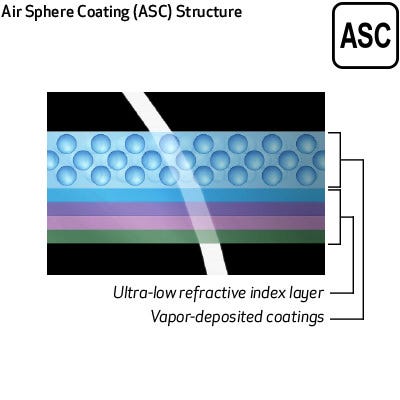

Optimized Lens Coating for Ghosting and Flare Reduction

To help minimize the ghosting and flare that reflected light can cause on image capture, the TS-E 90mm f/2.8L Macro features Canon’s ASC coating. Air Sphere Coating (ASC) technology is designed to help significantly minimize reflections, particularly with light that enters the lens vertically. It adds a protective film that includes air spheres over the lens’s conventional multi-layer coatings, reducing reflections and delivering clear images with high contrast and minimal glare.

Optimized Lens Coating for Ghosting and Flare Reduction

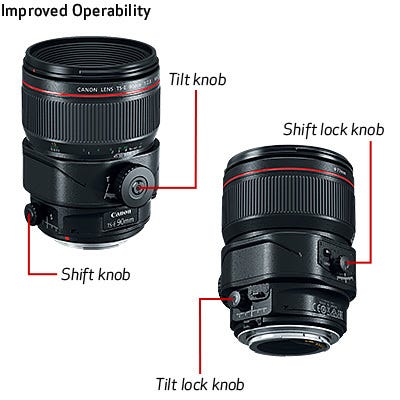

Large Tilt and Shift Knobs for Increased Operability

For greater ease of use, the TS-E 90mm f/2.8L Macro features enlarged knobs for fast, intuitive control of tilt and shift. Feel free to make adjustments as you please without having to take your eyes off the composition.

Large Tilt and Shift Knobs for Increased Operability

Tilt-locking Mechanism for Use When Shooting

To deliver high operability, the TS-E 90mm f/2.8L Macro features large tilt and shift lock knobs and a rotation lock release button. It also has a tilt-locking mechanism that keeps the lens in the zero position, helping to prevent unintended movement when in use.

Tilt-locking Mechanism for Use When Shooting

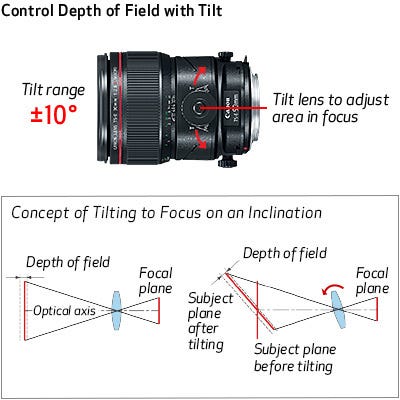

Increased Tilt Range of ±10°

For greater flexibility in shooting, the TS-E 90mm f/2.8L Macro has an enhanced tilt range of ±10° to deliver a higher level of control. Whether focusing on a subject not parallel to the camera’s sensor, increasing or decreasing the lens’s depth of field or establishing a specific plane of focus, the TS-E 90mm f/2.8L Macro’s enlarged tilt range can prove indispensable in defining the composition.

Increased Tilt Range of ±10°

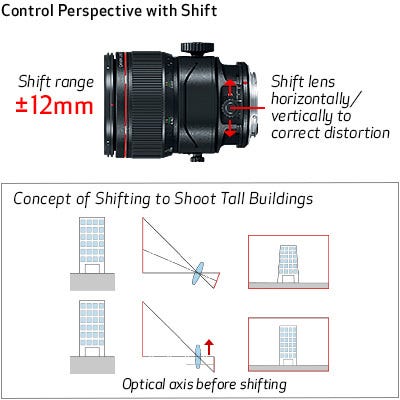

Increased Shift Range of ±12mm

For expansive control, the TS-E 90mm f/2.8L Macro features an incredibly large shift range of ±12mm, enabling seemingly impossible image capture with ease. This increased range helps the TS-E 90mm f/2.8L Macro eliminate converging lines, reflections or nearby objects from the composition, recompose the image without moving the camera and even capture a wider angle of view through photo stitching.

Increased Shift Range of ±12mm

Minimum Focusing Distance

With a minimum focusing distance of 16 in./0.39m, the TS-E 90mm f/2.8L Macro is incredibly well-suited for close-up photography. Combined with its expanded range of movements, its minimum focusing distance helps make sharp and detailed close-up images with specifically defined depth of field a reality.

Maximum Magnification

Thanks to a maximum magnification of 0.5x, the TS-E 90mm f/2.8L Macro is well-suited for capturing images of small objects. Whether shooting photos of still life, product photography or anything in between, its combination of maximum magnification, close focusing distance and expanded movements enables a truly phenomenal level of control for even the most challenging subjects.

The world's first 35mm-format telephoto lens with tilt and shift movements for perspective and depth-of-field control. Suitable for a variety of subjects, from product photography to architecture.

Canon TS-E 90mm f/2.8L Features

  • High-performance L-series Lens
  • Large f/2.8 Maximum Aperture
  • UD Lens Elements Help Reduce Chromatic Aberration
  • Optimized Lens Coating for Ghosting and Flare Reduction
  • Large Tilt and Shift Knobs for Increased Operability
  • Tilt-locking Mechanism for Use When Shooting
  • Increased Tilt Range of +/- 8.5 degrees
  • Increased Shift Range of +/- 10mm
  • Minimum Focusing Distance of 16 in/0.39m
  • Maximum Magnification of 0.5x

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Capture stunning detail with the Canon 90mm macro lens, perfect for close-up photography.
  • Achieve unique perspectives using the tilt-shift functionality for creative control of focus.
  • Enjoy exceptional image quality with L-series optics and advanced Air Sphere Coating.
  • The f/2.8 maximum aperture excels in low light, offering beautiful bokeh in your shots.
  • Manual focus allows precise control, ideal for intricate macro and portrait work.
  • Create incredible portraits with a medium telephoto lens, perfect for Canon EOS cameras.

What's in the box:

  • Canon TS-E 90mm f/2.8L Tilt-Shift Macro Lens
  • Front & Rear Lens Caps
  • ES-84 Lens Hood
  • LP1219 Lens Case
  • Unit Option Cap
  • Canon 1 Year Warranty
