Canare L-4CFB 10' RG59 HD-SDI 75Ohms Digital Video Coaxial Cable, 20AWG
See all Canare items

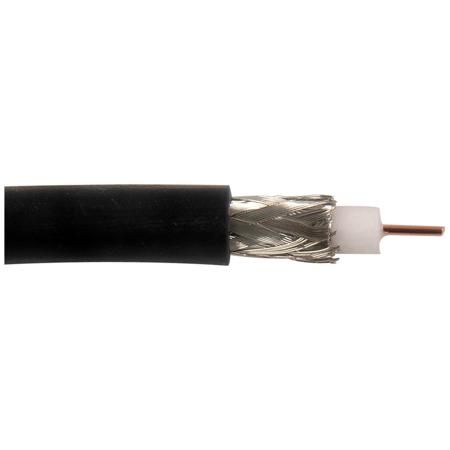

Canare L-4CFB 10' RG59 HD-SDI 75Ohms Digital Video Coaxial Cable with BNC Connectors, 20AWG

SKU: CAB07B010F MFR: B07B010F
Be the first to review this itemAsk a Question
$17.54
Earn VIP Reward Points

Key Features

  • Experience superior signal quality with this 10ft Canare RG59 HD-SDI coaxial cable.
  • Ensure reliable data transmission with our 75 Ohm digital video coaxial cable.
  • Enjoy a durable connection using BNC connectors for professional video applications.
  • This shielded coaxial cable minimizes interference, delivering crystal-clear video.
  • Perfect for HD-SDI setups, this coaxial cable supports up to 280m at 270Mb/s.
  • Get optimal performance with this 20AWG bare copper conductor coaxial cable.
See More Product Details
Special Order?Estimated to Ship: 08/17/2025
Calculate Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$2.99

2 Year

$4.99

3 Year

$8.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Canare L-4CFB Specifications

  • Standard Length

    10' (3.05m)

  • Connectors

    BNC Connectors

  • Outer Diameter

    Nominal: 6.1mm (0.24")
    Conductor: 0.80mm (0.03")
    Insulation: 3.7mm (0.15")

  • Conductor Material and Gauge

    Bare Copper
    20AWG

  • Dielectric Insulation Type

    Foam PE

  • Dielectric Strength

    1000V AC/1min

  • Insulation Resistance/3Mft

    >1000MOhms

  • Shield Material Coverage

    AL Foil 100%
    TAC Braid >93%

  • Conductor D.C.R

    <11.0Ohms/1000' (<3.6Ohms/100m)

  • Shield D.C.R.

    <3.0Ohms/1000' (<1.0Ohms/100m)

  • Nominal Capacity

    55pF/m at 1KHz

  • Nominal Impedance

    75Ohms

  • Velocity of Prop.

    0.79

  • Serial Digital Transmission Lengths

    At 270Mb/s:
    710' (216.41m) minimum
    920' (280.42m) maximum

  • Attenuation

    2.9 dB per 100m at 10 MHz

  • Weight

    10.80 lbs (4.90kg) Per 100m

About Canare L-4CFB

With the Canare L-4CFB 10' RG59 HD-SDI 75Ohms Digital Video Coaxial Cable, experience superior digital video transmission performance. This robust and high-quality coaxial cable is designed to meet the rigorous demands of today's digital broadcasting, offering a 100% sweep tested, low-loss solution that adheres to Serial Digital Video and HDTV standards.

Constructed with 20AWG for enhanced signal strength, this durable cable is equipped with BNC connectors, ensuring a secure and reliable connection for your HD-SDI (High Definition Serial Digital Interface) systems. The 10-foot length provides ample reach for your audio and video equipment, while the 75-ohm impedance ensures optimal signal transmission without any loss of quality.

Designed by Canare, a reputable brand recognized for its commitment to excellence in the field of professional audio and video cables, this sturdy and reliable coaxial cable is an ideal choice for transmitting high-definition video and audio signals over long distances. Experience the difference in quality and performance with the Canare L-4CFB 10' RG59 HD-SDI 75Ohms Digital Video Coaxial Cable.

Canare L-4CFB Features

  • HD-Serial Digital Video
  • Satellite Head Ends
  • HDTV Upgrades
  • Broadband Facilities
  • SMPTE 259M, 292M,424M
  • Solid Copper Center Conductor
  • Foam PE Dielectric
  • Tinned Copper Braid + 100% Foil Shield
  • Dielectric strips away clean from Conductor
  • Precision Coax 100% Sweep Tested

Warranty Information

This product has a limited warranty of 12 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Experience superior signal quality with this 10ft Canare RG59 HD-SDI coaxial cable.
  • Ensure reliable data transmission with our 75 Ohm digital video coaxial cable.
  • Enjoy a durable connection using BNC connectors for professional video applications.
  • This shielded coaxial cable minimizes interference, delivering crystal-clear video.
  • Perfect for HD-SDI setups, this coaxial cable supports up to 280m at 270Mb/s.
  • Get optimal performance with this 20AWG bare copper conductor coaxial cable.

What's in the box:

  • Canare L-4CFB 10' RG59 HD-SDI 75Ohms Digital Video Coaxial Cable with BNC Connectors
  • Canare 1 Year Limited Warranty
