Canare L-4CFB 75' RG59 HD-SDI 75Ohms Digital Video Coaxial Cable, 20AWG
See all Canare items

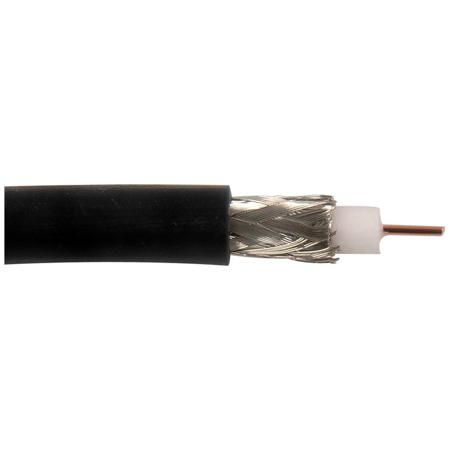

Canare L-4CFB 75' RG59 HD-SDI 75Ohms Digital Video Coaxial Cable with BNC Connectors, 20AWG

SKU: CAB07B075F MFR: B07B075F
Be the first to review this itemAsk a Question
$47.07
Earn VIP Reward Points

Key Features

  • Experience pristine signal quality with this 75' Canare RG59 HD-SDI coaxial cable.
  • Ensure reliable data transmission using our 75 Ohm coaxial cable with BNC connectors.
  • Enjoy superior shielding with 100% AL Foil, ideal for digital video coaxial setups.
  • This durable 20AWG bare copper coaxial cable guarantees long-lasting performance.
  • Achieve optimal performance with low attenuation for HD-SDI digital video signals.
  • Perfect for professional video applications, this coaxial cable supports 3G-SDI standards.
See More Product Details
Special Order Item?Estimated to Ship: 09/10/2025
Calculate Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$2.99

2 Year

$4.99

3 Year

$8.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Canare L-4CFB Specifications

  • Standard Length

    75' (22.86m)

  • Connectors

    BNC Connectors

  • Outer Diameter

    Nominal: 6.1mm (0.24")
    Conductor: 0.80mm (0.03")
    Insulation: 3.7mm (0.15")

  • Conductor Material and Gauge

    Bare Copper
    20AWG

  • Dielectric Insulation Type

    Foam PE

  • Dielectric Strength

    1000V AC/1min

  • Insulation Resistance/3Mft

    >1000MOhms

  • Shield Material Coverage

    AL Foil 100%
    TAC Braid >93%

  • Conductor D.C.R

    <11.0Ohms/1000' (<3.6Ohms/100m)

  • Shield D.C.R.

    <3.0Ohms/1000' (<1.0Ohms/100m)

  • Nominal Capacity

    55pF/m at 1KHz

  • Nominal Impedance

    75Ohms

  • Velocity of Prop.

    0.79

  • Serial Digital Transmission Lengths

    At 270Mb/s:
    710' (216.41m) minimum
    920' (280.42m) maximum

  • Attenuation

    2.9 dB per 100m at 10 MHz

  • Weight

    10.80 lbs (4.90kg) Per 100m

About Canare L-4CFB

While maintaining the highest standards of performance, the Canare L-4CFB 75' RG59 HD-SDI 75Ohms Digital Video Coaxial Cable with BNC Connectors, 20AWG, is a top-tier choice for professionals in the broadcasting industry. This durable and high-quality coaxial cable is 100% sweep tested, ensuring reliable and consistent performance.

Designed to meet the rigorous demands of today's digital video and HDTV standards, this sturdy cable is an essential tool for any professional setup. It's crafted to facilitate seamless transmission of high-definition video and audio signals, making it an ideal choice for HD-SDI (High Definition Serial Digital Interface) systems.

The Canare L-4CFB 75' RG59 HD-SDI 75Ohms Digital Video Coaxial Cable is also compatible with SMPTE standards for 3G (424m), enhancing its versatility and making it suitable for a wide range of professional video equipment and systems.

Made by Canare, a reputable brand renowned for its commitment to quality, this strong and reliable cable is designed to offer low loss and cost-effective solutions for digital video transmission. Experience the difference in quality and performance with the Canare L-4CFB 75' RG59 HD-SDI 75Ohms Digital Video Coaxial Cable with BNC Connectors, 20AWG.

Canare L-4CFB Features

  • HD-Serial Digital Video
  • Satellite Head Ends
  • HDTV Upgrades
  • Broadband Facilities
  • SMPTE 259M, 292M,424M
  • Solid Copper Center Conductor
  • Foam PE Dielectric
  • Tinned Copper Braid + 100% Foil Shield
  • Dielectric strips away clean from Conductor
  • Precision Coax 100% Sweep Tested

Warranty Information

This product has a limited warranty of 12 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Experience pristine signal quality with this 75' Canare RG59 HD-SDI coaxial cable.
  • Ensure reliable data transmission using our 75 Ohm coaxial cable with BNC connectors.
  • Enjoy superior shielding with 100% AL Foil, ideal for digital video coaxial setups.
  • This durable 20AWG bare copper coaxial cable guarantees long-lasting performance.
  • Achieve optimal performance with low attenuation for HD-SDI digital video signals.
  • Perfect for professional video applications, this coaxial cable supports 3G-SDI standards.

What's in the box:

  • Canare L-4CFB 75' RG59 HD-SDI 75Ohms Digital Video Coaxial Cable with BNC Connectors
  • Canare 1 Year Limited Warranty
