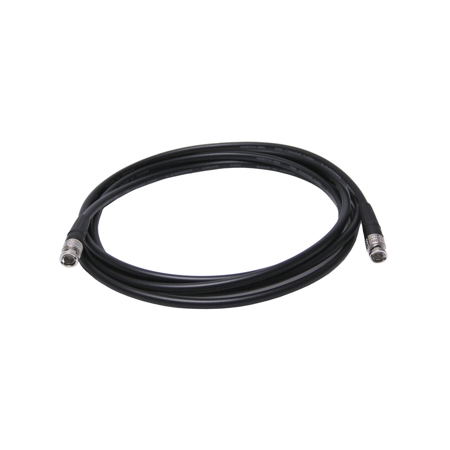

Canare L-4.5CHWS 50' HD-SDI 75Ohms Flexible Low Loss Coaxial Cable with BNC Connectors, 18AWG

SKU: CAB45WSB050F MFR: B45CHWSB050F
$65.53
Earn VIP Reward Points

Key Features

  • Ensure pristine signal quality with this 50' Canare HD-SDI coaxial cable.
  • Experience reliable HD video with our 75 Ohm low loss coaxial cable design.
  • Durable BNC connectors provide secure links for professional video setups.
  • This flexible 18AWG coaxial cable simplifies connections in tight spaces.
  • Achieve superior shielding and minimize signal interference with this cable.
  • Enjoy peace of mind with a coaxial cable built for lasting performance & value.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$6.99

2 Year

$13.99

3 Year

$20.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Canare L-4.5CHWS 50' HD-SDI 75Ohms Flexible Low Loss Coaxial Cable, 18AWG Specifications

  • Standard Length

    50' (15.24m)

  • Coaxial Type

    RG-6

  • Connectors

    Male BNC to BNC Connectors

  • Outer Diameter

    Nominal: 7.2mm (0.28")br>Inner Conductor: 1.02mm (0.04")
    Insulation: 4.57mm (0.18")

  • Conductor

    Inner Conductor Composition:
    18AWG
    7/0.34A (Quantity/mm)

    Outer Conductors Shield Coverage & Composition:
    0.10A/8/24 (93% or more)
    0.10A/9/24 (95% or more)

  • Resistance

    Inner Conductor: 39.95Ohms/mile (32.70Ohms/km)
    Outer Conductor: 10.88Ohms/mile (16.9Ohms/km)

  • Static Capacity

    53pF/m

  • Characteristic Impedance

    75Ohms

  • Attenuation

    22.8dB/100m at 750MHz

  • Jacket

    PVC
    Dielectric strength: 1000V AC/min

  • Weight

    14.55 lbs (6.60kg) Per 100m

About Canare L-4.5CHWS 50' HD-SDI 75Ohms Flexible Low Loss Coaxial Cable, 18AWG

Before you settle for any cable, consider the L-4.5CHWS 50' HD-SDI 75Ohms Flexible Low Loss Coaxial Cable with BNC Connectors, 18AWG. This high-quality, durable cable is expertly crafted by Canare, a leading brand renowned for its premium audio and video cables.

Designed to meet the rigorous SMPTE standards for HD-SDI, this cable ensures flawless transmission of high-definition video signals. Its low-loss feature guarantees minimal signal degradation, making it an ideal choice for professional video applications such as broadcasting, film production, and live events.

The L-4.5CHWS 50' HD-SDI 75Ohms Coaxial Cable stands out for its flexibility and durability, making it perfectly suited for mobile HD applications where repeated bending is a common occurrence. It features a stranded center conductor for enhanced signal transmission, and a high-density double-braided shield for maximum protection against signal interference.

Moreover, this reliable coaxial cable comes with BNC connectors for easy and secure connection. It also boasts highly-foamed insulation for improved signal quality and longevity. Please note, the cable stripper TS100E is not compatible with this cable.

In summary, if you're looking for a reliable, high-quality, and flexible coaxial cable that can handle HD-SDI video transmission with minimal loss, the L-4.5CHWS 50' HD-SDI 75Ohms Coaxial Cable with BNC Connectors, 18AWG is your go-to choice.

Canare L-4.5CHWS 50' HD-SDI 75Ohms Flexible Low Loss Coaxial Cable, 18AWG Features

  • High-quality 50' HD-SDI 75Ohms Coaxial Cable with BNC Connectors, 18AWG for seamless video transmission
  • Flexible and durable design, ideal for mobile HD applications and repeated bending
  • Meets SMPTE standards for HD-SDI, ensuring superior performance in high-definition video signal transmission
  • Features a stranded center conductor and high-density double-braided shield for maximum signal protection
  • Highly-foamed insulation for enhanced signal quality and longevity
  • Crafted by Canare, a reputable brand known for premium audio and video cables

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Ensure pristine signal quality with this 50' Canare HD-SDI coaxial cable.
  • Experience reliable HD video with our 75 Ohm low loss coaxial cable design.
  • Durable BNC connectors provide secure links for professional video setups.
  • This flexible 18AWG coaxial cable simplifies connections in tight spaces.
  • Achieve superior shielding and minimize signal interference with this cable.
  • Enjoy peace of mind with a coaxial cable built for lasting performance & value.

What's in the box:

  • Canare L-4.5CHWS 50' HD-SDI 75Ohms Flexible Low Loss Coaxial Cable with BNC Connectors
  • Canare 1 Year Limited Warranty
