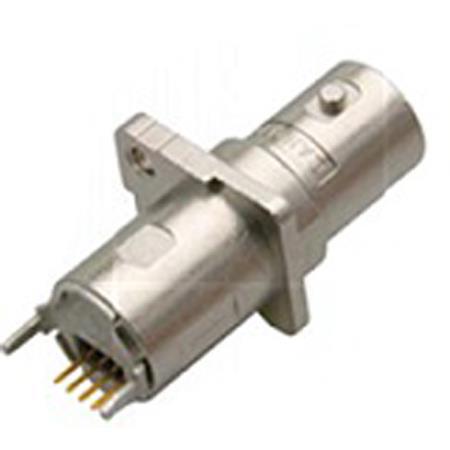

Canare 75 Ohm Active BNC Receptacle TX, Straight
SKU: CABCATS MFR: BCA-TS
$25.00
$27.50
Save: $2.5 (9%)Key Features
- Ensure pristine signal quality with this Canare 75 Ohm BNC receptacle for TX.
- Enjoy reliable connectivity; this coaxial cable adapter supports SMPTE424M standards.
- Get consistent performance across a wide temperature range: -25C to +85C!
- This Canare active BNC receptacle maintains an 800mVpp output signal amplitude.
- Power your devices efficiently with a low 50mA current consumption at DC 3.3V.
- Trust in Canare's durable design; this BNC connector weighs approximately 9.0g.
Special Order?Estimated to Ship: 09/08/2025
Calculate Shipping
See Options
1
Protect your gear with Adorama Protect.* Learn more
1 Year
$2.99
2 Year
$4.99
3 Year
$8.99
Available to U.S. customers only.
Need help? Ask our experts.
Overview
Compare
Specs
Protection
Q&A
About Canare Active BNC Receptacle
For professionals seeking a high-performance solution for their electronic equipment, the 75 Ohm Active BNC Receptacle TX, Straight is an ideal choice. This compact connector body is expertly designed to incorporate a cable driver, ensuring a seamless connection for your devices.
This product not only meets but exceeds the SMPTE 424M standards, making it a reliable choice for designing intricate I/O block circuits. Its superior design aids in securing return loss performance, simplifying the overall circuit board design process.
The Active BNC connector stands out with its integrated components, which were traditionally mounted on the PC board. This innovative design approach minimizes board surface area requirements, effectively reducing the overall device size.
Whether you're setting up audio, video, or other electronic equipment, the 75 Ohm Active BNC Receptacle TX, Straight offers a streamlined, efficient solution. Its robust design and high standards compliance make it a valuable addition to any professional setup.
Canare Active BNC Receptacle Features
- BNC Connector integrated with a cable driver, and yet keep the connector size to a minimum
- Supports 3G-SDI, HD-SDI, SD-SDI and DVB-ASI
- Offers an excellent return loss performance without designing 75 ohm I/O block
- Simplifies PCB design process dramatically and will reduce entire development cost
- PCB space saving and help to downsize devices
- Easy to distinguish TX from RX by color-coded insulation
Warranty Information
This product has a limited warranty of 12 months.
