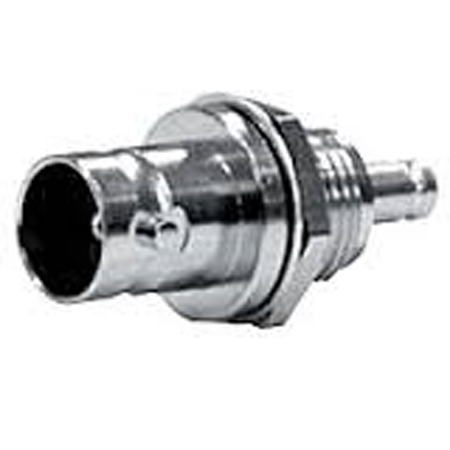

Canare 75 Ohm BNC Jack to DIN 1.0/2.3 Jack Adapter, Panel Mount
See all Canare items

Canare 75 Ohm BNC Jack to DIN 1.0/2.3 Jack Adapter, Panel Mount

SKU: CABCJDCJ
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Canare 75 Ohm BNC Jack to DIN 1.0/2.3 Jack Adapter, Panel Mount Specifications

  • Return Loss

    26 dB or greater up to 3 GHz

  • Connector Type

    RF connector adapter

  • Adapter Style

    BNC-DIN1.0/2.3

  • Body/Shell Style

    Jack-jack

  • Characteristic Impedance

    75.0 Ohm

  • Contact Gender

    Female-female

  • Coupling Type

    Bayonet-snap

  • DIN Conformance

    Yes

  • Filter Feature

    No

  • IEC Conformance

    Yes

  • MIL Conformance

    No

  • Option

    General Purpose

  • Panel Mount

    Yes

  • VSWR

    1.1@3GHz

About Canare 75 Ohm BNC Jack to DIN 1.0/2.3 Jack Adapter, Panel Mount

Canare 75 Ohm BNC Jack to DIN 1.0/2.3 Jack Adapter, Panel Mount Features

  • 75 Ohms jack to jack panel mount receptacle
  • NDT-DIN nut driver bolt
  • VSWR 1.1 at 3GHz
  • Standards: DIN 47297, IEC 61169-29, VSWR MAX AT 3 GHZ

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 75 Ohms jack to jack panel mount receptacle
  • NDT-DIN nut driver bolt
  • VSWR 1.1 at 3GHz
  • STANDARDS: DIN 47297, IEC 61169-29, VSWR MAX AT 3 GHZ
