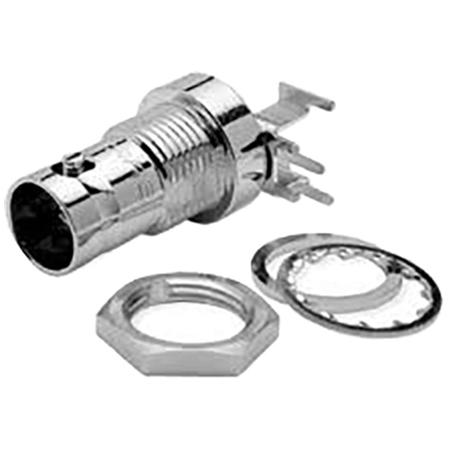

Canare 75 Ohm BNC PCB Mount Receptacle (Hex Nut Type), Right Angle, Horizontal Stud Position

SKU: CABCJFPLHA MFR: BCJ-FPLHA
$4.81
Earn VIP Reward Points

Key Features

  • Experience superior signal quality with this 75 Ohm Canare BNC PCB mount receptacle.
  • Achieve reliable connections using the gold-finished coax contact of this BNC connector.
  • Ensure secure mounting with the right-angle, horizontal stud position of this receptacle.
  • This BNC connector supports frequencies up to 2.5 GHz, perfect for high-quality video.
  • Enjoy lasting durability with the commercial-grade reliability of the Canare receptacle.
  • Easily panel mount this BNC connector for a secure and professional installation.
See More Product Details
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Shopper : Why Did You Choose This?RICK B : NEEDED FOR REPAIR, AND WAS THE BEST PRICE

Reviews about this item

Review Summary

Canare 75 Ohm BNC PCB Mount Receptacle (Hex Nut Type), Right Angle, Horizontal S Specifications

  • Connector Type

    RF BNC Connectore

  • Body/Shell Style

    Receptacle

  • Characteristic Impedance

    75.0 Ohm

  • Contact Finish - Mating

    Gold

  • Contact Finish - Termination

    Gold

  • Contact Gender

    Female

  • Contact Style

    Coax

  • Coupling Type

    Bayonet

  • DIN Conformance

    No

  • Filter Feature

    No

  • IEC Conformance

    No

  • Insulator Material

    M-PPO

  • JESD-609 Code

    e4

  • MIL Conformance

    No

  • Mounting Option 1

    Locking

  • Mounting Style

    Right angle

  • Mounting Type

    Board

  • Number of Ports

    1

  • Output Frequency-Max

    2.5 GHz

  • Panel Mount

    Yes

  • Polarization Key

    Polarized Housing

  • Reference Standard

    UL

  • Reliability

    Commercial

  • Terminal Type

    Solder

  • Total Number of Contacts

    1

  • VSWR

    1.2

  • UPC Code

    996590948443

About Canare 75 Ohm BNC PCB Mount Receptacle (Hex Nut Type), Right Angle, Horizontal S

When precision and reliability are paramount in your audio and video setups, the Canare 75 Ohm BNC PCB Mount Receptacle stands out as the go-to connector. This durable and high-quality receptacle, part of the BCJ-FP and RP Series, is engineered to seamlessly integrate with your printed circuit boards, ensuring a steadfast connection for your coaxial cables.

Crafted with a robust hex nut and lock washer, this BNC connector is designed for secure front or rear mounting on panels, providing a versatile solution for your electronic installations. Its right-angle orientation and horizontal stud position make it an ideal choice for spaces where a straight connector would be impractical, thus enhancing its usability in a variety of configurations.

The stylish design does not compromise on performance; this receptacle maintains a consistent 75-ohm impedance, crucial for minimizing signal reflection and ensuring the integrity of your high-frequency transmissions. Whether you're setting up a professional broadcast studio or configuring a sophisticated home theater system, the Canare 75 Ohm BNC PCB Mount Receptacle with Hex Nut Type is a reliable component that professionals and enthusiasts alike can trust for top-tier connectivity.

Canare 75 Ohm BNC PCB Mount Receptacle (Hex Nut Type), Right Angle, Horizontal S Features

  • True 75 ohms construction.
  • Beryllium copper, gold plated center contact.
  • Space-saving design allows high-density mounting.
  • Securely mounts to PCB with chassis support.
  • Can be fixed on the PC board with M2.6 screw for efficient soldering.
  • Applicable for OEM's, HDTV equipment, teleco broadband, NTSC analog video, satellite headend.

Warranty Information

This product has a limited warranty of 12 months.
