Canare BCJ-JRUK 75 Ohms BNC to BNC Flush-Mount Receptacle, 12G-SDI Installations
See all Canare items

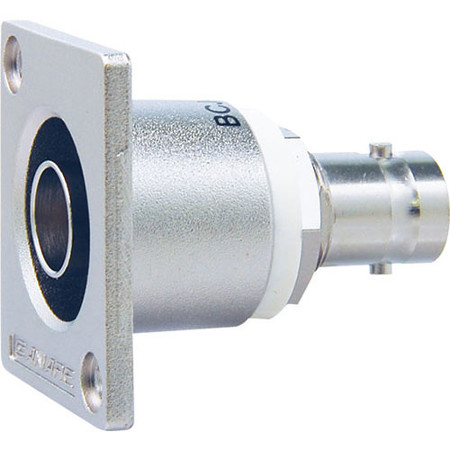

Canare BCJ-JRUK 75 Ohms BNC to BNC Flush-Mount Receptacle for 12G-SDI Installations

SKU: CABCJJRUK MFR: BCJ-JRUK
Be the first to review this itemAsk a Question
$6.30
Earn VIP Reward Points

Key Features

  • Ensure optimal signal quality with this 75 Ohms BNC to BNC receptacle for clear data.
  • Achieve reliable 12G-SDI installations using this durable Canare BNC flush-mount connector.
  • Experience superior connectivity with gold-plated center contacts for minimal signal loss.
  • This BNC receptacle's robust design guarantees long-lasting performance in any setup.
  • Enjoy peace of mind with high insulation resistance, exceeding 1000 M Ohms at 500 VDC.
  • Perfect for pro audio, video, and data, this BNC connector offers great return loss.
See More Product Details
Calculate Shipping

See Options

Qty
1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Canare BCJ-JRUK Specifications

  • Connector Type

    BNC Female

  • Impedance

    75 Ohms

  • Bandwidth

    VSWR Return Loss DC (2 GHz): <1.1, >26 dB

  • Return Loss

    15 dB at 12 GHz
    26 dB at 3 GHz

  • Plating

    Center Contact: Beryllium copper/gold
    Body: Brass/nickel

  • Plate Type

    ITT XLR-F77 flange

  • Dielectric

    PTFE

  • Insulation Resistance

    >1000 M Ohms at 500 VDC

  • Voltage Rating

    1500 VAC (RMS) for 1 minute

  • Contact Resistance

    Center: <6 m Ohms
    Outer: <3 m Ohms

  • Compliance

    SMPTE ST 2082-1:2015

  • Dimensions

    Plate Hole (WxH): 0.8" (2.03cm) diameter
    0.7 x 0.9" (1.78 x 2.29cm) screw holes
    1.0 x 1.2" (2.54 x 3.05cm) flange
    Receptacle (DxH): 1.3 x 0.8" (3.30 x 2.03cm)

Models
Canare BCJ-JRUK 75 Ohms BNC to BNC Flush-Mount Receptacle, 12G-SDI Installations

Canare BCJ-JRUK 75 Ohms BNC to BNC Flush-Mount Receptacle, 12G-SDI Installations

SKU: CABCJJRUK

MFR: BCJ-JRUK

$6.30

In Stock

Canare BCJ-MVP 75 Ohms Mid Size Video Patch Plug to BNC Female Adapter

Canare BCJ-MVP 75 Ohms Mid Size Video Patch Plug to BNC Female Adapter

SKU: CABCJMVP

MFR: BCJ-MVP

$6.34

Special Order

Generally ships in 7-14 days, subject to availability

Canare HBCP-D25HDA 12G-SDI Micro-BNC Connector for L-2.5CHD/L-2.5CHLT Cable

Canare HBCP-D25HDA 12G-SDI Micro-BNC Connector for L-2.5CHD/L-2.5CHLT Cable

SKU: CAHBCPD25HDA

MFR: HBCP-D25HDA

$6.50

On Backorder

Order now, your card will not be charged until it is ready to ship.

TypeConnectorConnectorConnector
Connector Type-BNC to DIN 1.0/2.3Micro-BNC
Cable GenderFemaleFemale-
Jack/Port TypeBNC-BNC
SDI (SMPTE) Standards--12G (ST-2082)

About Canare BCJ-JRUK

Be at the forefront of technology with the BCJ-JRUK 75 Ohms BNC to BNC Flush-Mount Receptacle, specifically designed for 12G-SDI installations. This high-performance receptacle is crafted with beryllium copper on the center contact, a material renowned for its superior spring characteristics, ensuring optimal signal transmission and long-lasting durability.

The center contact boasts a gold-plated finish, a feature that not only enhances the aesthetic appeal but also improves the receptacle's conductivity, providing a seamless connection for your 12G-SDI installations.

One of the standout features of this BNC to BNC receptacle is its impressive return loss of 26dB or greater at 3GHz and 15dB or greater at 12GHz. This ensures that your signal remains strong and clear, even in demanding conditions.

Whether you're setting up a professional video production studio or a high-end home theater system, the BCJ-JRUK 75 Ohms BNC to BNC Flush-Mount Receptacle is an essential component for your 12G-SDI installations. Its robust construction and superior performance make it a reliable choice for ensuring the best possible signal transmission.

Canare BCJ-JRUK Features

  • Specifically designed for 12G-SDI installations, perfect for professional video production and high-end home theater systems
  • Constructed with beryllium copper center contact for superior spring characteristics and optimal signal transmission
  • Features a gold-plated finish on the center contact, enhancing conductivity and aesthetic appeal
  • Provides an impressive return loss of 26dB or greater at 3GHz and 15dB or greater at 12GHz for strong, clear signals
  • Robust and durable design, ensuring long-lasting performance in demanding conditions
  • Essential component for seamless and efficient 12G-SDI installations

Warranty Information

This product has a limited warranty of 12 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Ensure optimal signal quality with this 75 Ohms BNC to BNC receptacle for clear data.
  • Achieve reliable 12G-SDI installations using this durable Canare BNC flush-mount connector.
  • Experience superior connectivity with gold-plated center contacts for minimal signal loss.
  • This BNC receptacle's robust design guarantees long-lasting performance in any setup.
  • Enjoy peace of mind with high insulation resistance, exceeding 1000 M Ohms at 500 VDC.
  • Perfect for pro audio, video, and data, this BNC connector offers great return loss.

What's in the box:

  • Canare BCJ-JRUK 75 Ohms BNC to BNC Flush-Mount Receptacle
  • Canare 1 Year Limited Warranty
