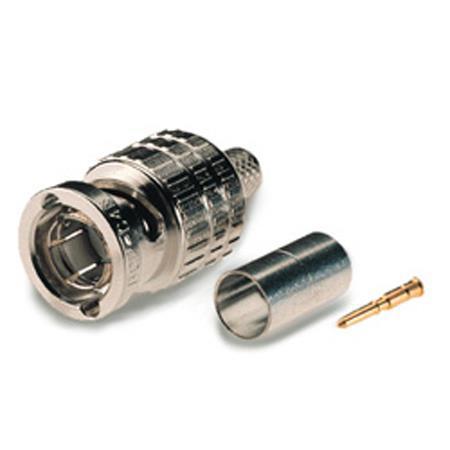

Canare 75 Ohm BNC Crimp Plug for L-5CHD Cable
See all Canare items

Canare 75 Ohm BNC Crimp Plug for L-5CHD Cable

SKU: CABCPC5HD
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Canare BNC Crimp Plug Specifications

  • Impedance

    75 Ohm

  • Return Loss

    >26 dB (DC to 2GHz)

  • Voltage Rating

    1500 VAC (rms)

  • Insulation Resistance

    >1000 Mohms (at 500VDC)

  • Cable Retention

    >55 lbs (>24.9kg)

  • Connector Finish

    Nickel plated

  • Center Contact Plating

    Gold plated

  • Outer Contact Material

    Beryllium copper

  • Dielectric Material

    PTFE

  • Operating Temperature

    -20 Degree to 60 Degree C / -4 to 140 Degrees F

  • Bandwidth VSWR

    <1.1

  • Body/Center Contact Material

    Brass

  • Suitable Cable

    L-5CHD

  • Center Pin

    BN1139

  • Sleeve

    B75004A

  • Boot

    CB05A

  • Die Set

    TCD-5HD

About Canare BNC Crimp Plug

Canare BNC Crimp Plug Features

  • SMPTE 259M & 292M Compliant
  • Serial Digital Video
  • HDTV Upgrades
  • NTSC Analog
  • Test Equipment
  • Satellite Headends
  • Telecom
  • True 75 Ohm construction Crimp Pin & Sleeve
  • Mechanically mates with common 50 Ohm BNC
  • Elongated Body for better finger grip
  • Superior cable pull strength
  • Gold plated center pins 'snap lock' in place
  • Beryllium copper outer contact
  • Easy Assembly using Canare Strip & Crimp Tools
  • Operating temperature -20 to +60 Degrees C / -4 to 140 Degrees F
  • 75 Ohm BNC Connector, Straight Plug
