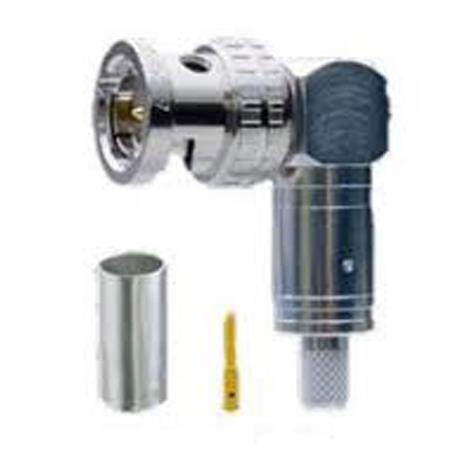

Canare 75 Ohm BNC Crimp Plug, Right Angle Type for V-3CFB, L-3CFB, A3V2-FB Cables

SKU: CABCPLC3F MFR: BCP-LC3F
$10.29
$11.32
Save: $1.03 (9%)
Earn VIP Reward Points

Key Features

  • Get superior signal quality with this 75 Ohm BNC crimp plug for clear video feeds.
  • Ensure a reliable connection; this coaxial cable connector boasts >26 dB return loss.
  • Built to last: This durable BNC plug features a nickel-plated finish and gold contact.
  • Use with Canare V-3CFB, L-3CFB, A3V2-FB cables for a secure, perfect coaxial fit.
  • Enjoy broad compatibility; this right-angle BNC connector works in tight spaces easily.
  • Experience peace of mind with our high-performance, shielded BNC coaxial cable plug.
See More Product Details
Special Order?Estimated to Ship: 08/14/2025
Calculate Shipping

See Options

Qty
1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Canare BNC Crimp Plug Specifications

  • Impedance

    75 Ohm

  • Return Loss

    >26 dB (DC to 2GHz)

  • Voltage Rating

    1500 VAC (rms)

  • Insulation Resistance

    >1000 MOhms (at 500Vdc)

  • Cable Retention

    >55 lbs (>24.9kg)

  • Connector Finish

    Nickel plated

  • Center Contact Plating

    Gold plated

  • Outer Contact Material

    Beryllium copper

  • Dielectric Material

    PTFE

  • Operating Temperature

    -20 to +60 Degrees C / -4 to 140 Degrees F

  • Bandwidth VSWR

    <1.1

  • Body/Center Contact Material

    Brass

  • Suitable Cable Canare

    V-3CFB, L-3CFB, A3V2-FB

  • Center Pin

    Snap Lock in place

  • Die Set

    TCD-35CA

About Canare BNC Crimp Plug

The Canare 75 Ohm BNC Crimp Plug, featuring a right-angle design, is engineered to provide a professional and reliable connection for V-3CFB, L-3CFB, and A3V2-FB coaxial cables. This high-quality connector is crafted with durability in mind, ensuring a sturdy and secure link between your audio and video equipment.

Constructed to meet the rigorous demands of both amateur and professional setups, this BNC crimp plug is ideal for applications where space is at a premium. The right-angle configuration allows for effortless installation in tight spaces, making it a go-to choice for seamless cable management and organization.

The plug's 75 Ohm impedance is perfectly matched to maintain the integrity of the signal, ensuring clear and uninterrupted transmission for your broadcasts, recordings, and presentations. This is particularly crucial in environments where maintaining the highest quality of audio and video signals is paramount.

With the Canare brand's reputation for producing top-tier audio and video components, you can trust that this BNC crimp plug will deliver consistent performance. Whether you're setting up for a live production, installing a professional broadcast system, or simply ensuring your home entertainment system is connected with the best possible components, this Canare BNC crimp plug is an essential element in achieving a pristine audio-visual experience.

In summary, the Canare 75 Ohm BNC Crimp Plug is a durable, high-quality, and reliable choice for professionals who require the best in audio and video connectivity. Its right-angle design and compatibility with V-3CFB, L-3CFB, and A3V2-FB cables make it an indispensable component in any sophisticated electronic setup.

Canare BNC Crimp Plug Features

  • SMPTE 259M & 292M Compliant
  • Serial Digital Video
  • HDTV Upgrades
  • NTSC Analog
  • Test Equipment
  • Satellite Headends
  • Telecom
  • True 75 Ohm construction Crimp Pin & Sleeve
  • DC to 2 GHz > 26dB Return Loss (1.1 VSWR)
  • Mechanically mates with common 50 Ohm BNC
  • Elongated Body for better finger grip
  • Superior cable pull strength
  • Gold plated center pins 'snap lock' in place
  • Beryllium copper outer contact
  • Easy Assembly using Canare Strip & Crimp Tools
  • Operating temperature -20 to +60 Degrees C / -4 to 140 Degrees F

Warranty Information

This product has a limited warranty of 12 months.
