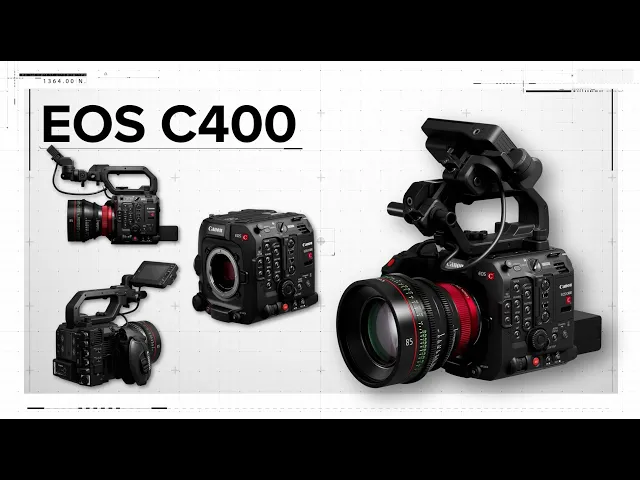

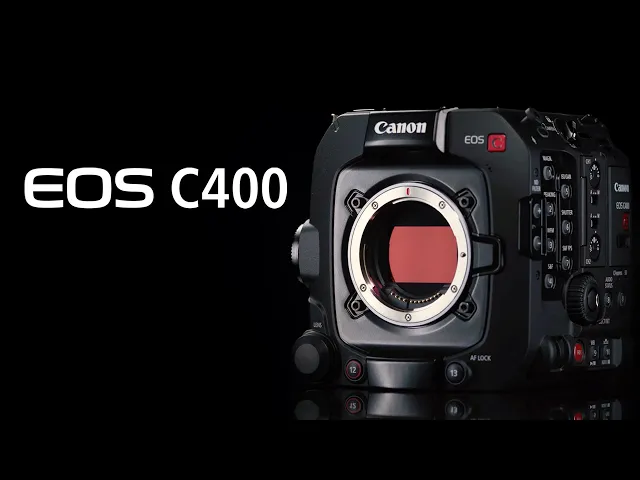

Canon EOS C400 Cinema Camera

Innovation versatility and imaging excellence all merge in the new EOS C400, the full frame, RF-mount cinema camera tailored for boundless creativity.

The compact camera body is well-appointed and includes Canon's newly-developed 6K full frame Back-Illuminated Stacked CMOS sensor. The EOS C400 features 6K/60p Cinema RAW Light and 4K/120p internal recording along with Canon’s next-generation Dual Pixel CMOS AF II, among other outstanding features. Additionally, the EOS C400 has a variety of interfaces, including return input, Ethernet, and Wi-Fi, enabling control from various Canon and third-party devices.

The EOS C400 is the ideal fusion of both functionality and form, and seamlessly integrates into almost any production with its robust and compact design.

6K Full Frame Back-illuminated Stacked CMOS Sensor

The newly developed 6K back-illuminated stacked full frame CMOS sensor offers exceptionally low noise. The sensor delivers faster read-out speeds than previous EOS sensors, the sensor’s architecture provides improved sensitivity as it increases light capturing efficiency and improves 4K image quality with 6K oversampling.

Super 35mm and Super 16 Crop Modes

The camera’s Full Frame sensor is capable of capturing footage in both 17:9 and 16:9 formats, and supports the use of Super 35mm and Super 16mm lenses with the appropriate sensor crop modes.

Internal Cinema RAW Light, XF-AVC Recording

The EOS C400 can record up to 6K 60P Cinema RAW Light with an additional three Cinema RAW Light recording modes, HQ, ST and LT also with 12-bit recording.

Other recording options include our standard XF-AVC codec which can record in 10-bit 4:2:2 with oversampling from the 6K sensor, creating rich detail and smooth imagery, at frame rates up to 120P, without the need for cropping the image from the sensor. For slow or fast motion recording, the C400 can support up to 4K 120P and 2K 180.

Improved Autofocus with Dual Pixel CMOS AF II

The C400 supports the next generation of Canon’s acclaimed Dual Pixel CMOS Autofocus, Dual Pixel CMOS AF II. The back-illuminated stacked sensor provides better light-capturing efficiency, widening the area of the sensor that can be used for AF.

Experience the limitless potential of the Canon EOS C400 Cinema Camera, a revolutionary full-frame RF-mount camera meticulously crafted to elevate your creative projects. This compact powerhouse introduces a groundbreaking 6K full-frame Back-Illuminated Stacked CMOS sensor, a first in the Cinema EOS lineup, delivering exceptionally low noise and enhanced read-out speeds. The EOS C400 Cinema Camera excels with its 6K/60p Cinema RAW Light and 4K/120p internal recording capabilities, complemented by Canon's advanced Dual Pixel CMOS AF II technology.

Designed for seamless connectivity, the EOS C400 is equipped with a comprehensive array of interfaces, including return input, Ethernet, and Wi-Fi, facilitating effortless control from both Canon and third-party devices. Its full-frame sensor supports Super 35mm and Super 16 Crop Modes, capturing footage in versatile 17:9 and 16:9 formats. With a triple-base ISO (800, 3200, and 12,800), this camera ensures stunning imagery across diverse lighting conditions, from brightly lit environments to challenging low-light scenarios.

The EOS C400 offers internal Cinema RAW Light, XF-AVC Recording, and introduces new XF-HEVC S and XF-AVC S formats. Capable of recording up to 6K 60P Cinema RAW Light, it delivers rich detail and smooth imagery at frame rates up to 120P. Featuring CFexpress Type B and SD card slots, the camera supports simultaneous recording, even when shooting in RAW. The built-in mechanical ND filters provide up to ten stops of ND filtration, adapting to various lighting conditions with ease.

Canon's next-generation Dual Pixel CMOS Autofocus, Dual Pixel CMOS AF II, is integrated into the EOS C400, enhancing light-capturing efficiency and expanding the autofocus area. The camera incorporates the EOS Intelligent Tracking and Recognition (iTR AF X) algorithm, developed with deep learning technology, for superior subject detection. It can accurately detect and track human eyes, faces, heads, and bodies.

The EOS C400 is compatible with the Mount Adapter PL-RF, unlocking a wide range of PL mount lenses for Canon's RF cameras. Its diverse interfaces, including Timecode and Genlock, make it an ideal choice for film set production and live broadcast scenarios. The camera's compact, lightweight, and ergonomic design accommodates various shooting configurations, featuring a new LCD touch-screen monitor, camera grip, and battery pack for enhanced operator comfort.

Additionally, the EOS C400 includes Auto Clear Scan Mode to minimize flickering in LED walls and is compatible with the Canon Multi-Camera Control App for iPhone, offering comprehensive control over camera settings. In essence, the Canon EOS C400 Cinema Camera is a perfect fusion of functionality and form, seamlessly integrating into any production environment with its robust and compact design.
