Canon C700 Specifications

  • Sensor

    CMOS Sensor

  • Image Processing

    Triple Digic DV 5

  • Pixels

    Total: Approx. 11.54 megapixels (4622 x 2496)
    4K/2K: Approx. 8.85 megapixels (4096 x 2160) - when 4096 x 2160 or 2048 x 1080 is selected as the resolution
    Effective: Approx. 8.29 megapixels (3840 x 2160) - when 3840 x 2160 or 1920 x 1080 is selected as the resolution

  • System Frequency Selection

    59.94, 50.00, 24.00Hz
    59.94 Hz mode: 59.94p/59.94i/29.97p/23.98p
    50.00Hz mode: 50p/50i/25p
    24.00Hz mode: 24p

  • Mount

    PL

  • Shutter Type

    Standard

  • Shutter Modes

    Speed, Angle, Clear Scan, Slow, Off

  • Shutter Setting

    Either 1/3 or 1/4 steps selected as speed increment

  • ISO

    Normal: 160 to 25,600
    Expanded: 100 to 102,400

  • Gain

    Normal: -2 to 42 dB
    Expanded: -6 to 54 dB
    Increments: 0.5 dB when Fine is selected

  • ND Filter

    Normal: 2, 4, 6 stops
    Expansion: 2, 4, 6, 8, 10 stops
    Mechanism: Motorized

  • Focus Control

    Manual Focus

  • LCD Screen

    3.0" (7.66cm) diagonal
    Approximately: 1.036

  • Recording Media

    CFast Card Slot: 2 x slots (records XF-AVC/ProRes), custom pictures, metadata recording
    SDXC Card Slot: 1 s slot (records movies (XF-AVC (proxy), photos (JPEG), custom pictures, metadata, menus and other data

  • Compression Format

    Video:
    XF-AVC/ MPEG-4 AVC/H.264
    ProRes/ Apple ProRes Codec
    Raw / Uncompressed

    Audio:
    Linear PCM (24-bit 48 kHz)
    4 - channel recording

  • Recording

    XF-AVC YCC:
    4096x2160: YCC422 10-bit
    3840x2160: YCC422 10-bit
    2048x1080: YCC422 10-bit
    1920x1080: YCC422 10-bit

    XF-AVC RGB:
    2048x1080: RGB444 12-bit
    1920x1080: RGB444 12-bit
    2048x1080: RGB444 10-bit
    1920x1080: RGB444 10-bit

    ProRes YCC:
    4096x2160: YCC422 10-bit
    3840x2160: YCC422 10-bit
    2048x1080: YCC422 10-bit
    1920x1080: YCC422 10-bit

    ProRes RGB:
    2048x1080: RGB444 12-bit
    1920x1080: RGB444 12-bit

  • Recording Cont.

    RAW:
    Bit Depth: 10/12-bit
    Resolution: 4096 x 2160

    XF-AVC (Proxy):
    2048x1080: YCC420 8-bit
    1920x1080: YCC420 8-bit
    Bit Rate: 24/35 Mbps Long-GOP

  • Timecode

    Operation Mode: Rec run, free run, regeneration
    Count-Up: Non-drop frame (drop frame only in 59.94 Hz mode)

  • Gamma

    Canon Log 3
    Canon Log 2
    Canon Log
    Wide DR

  • Color Space

    Cinema Gamut
    BT.2020 Gamut
    DCI-P3 Gamut
    BT.709 Gamut

  • LUT

    BT.709
    BT.2020
    DCI
    ACESproxy
    HDR-ST2084

  • I/O Connectors

    Input:
    Genlock: 1 x BNC (also serves as Sync Out)
    Timecode: 1 x BNC (input/out switching)
    Remote: A/B
    Mic:2 x XLR-3pin

    Output:
    Monitor: 2 x outputs
    SDI: 4 x BNC
    HDMI: 1 x HDMI
    Headphone: 1 x jack

    Control:
    Lens: 1 x terminal
    Ethernet: 1 x terminal
    Ctrl: 1 x terminal

  • Wi-Fi

    Standards: IEEE 802.11b/g/n (2.4GHz band), IEEE 802.11a/n (5GHz band)
    Transmission Frequencies and Channels: IEEE 802.11b/g/n (2.4 GHz band), 2412-2462MHz, 1-11ch (US, Canada, Korea, Taiwan, Philippine, Mexico, Saint Pierre, Miquelon, Brazil) 2412-2472 MHz, 1-13ch (in countries other than the ones listed above)
    Authentication: Open system, WPA-PSK, WPA2-PSK
    Encryption: WEP-64, WEP-128, TKIP, AES

  • IP Streaming

    Bit-Rate/Resolution/Frame Rate:
    9 Mbps/4 Mbps: 1920x1080 [59.94i/50.00i]
    2 Mbps: 1280x720 [29.97p/25.00p]
    1.5 Mbps: 720x480(/579)/[59.94i/50.00i]

    Audio:
    MPEG-2 ACC-LC

    Audio Rate:
    128 Kbps (Variable Bit Rate)

    Transfer Media:
    Wi-Fi
    Ethernet

    Protocols:
    UDP, RTP, RTP + FEC, RTSP + RTP

    Error Correction: FEC

  • Power

    Input: 12 VDC (4-pin XLR)
    Output: 12/24 VDC 2 A (D-Tap)

  • Dimensions

    6.6 x 6.1 x 13.2" (16.7 x 15.4 x 33.6cm)

  • Weight

    Approx. 7.9 lbs (3.6kg)

  • UPC Codes

    013803276169 | 660685187573

31 Accessories for Canon EOS C700 PL Digital Cinema Camera Body - PL Lens Mount with Deluxe Production Kit

  • All Accessories (31)
  • Headphones (2)
  • Microphones & Audio (4)
  • Remotes & Accessories (1)
  • Bags & Cases (3)
  • Transmitters & Receivers (1)
  • Digital Cinema Lenses (7)
  • Viewfinders (2)
  • Batteries & Power Supply (6)
  • Grips & Handles (1)
  • Cables & Adapters (1)
  • Adapters & Mounts (1)
  • Stabilizers, Supports & Rigs (1)
  • Rod Support Systems (1)

About Canon C700

Canon EOS C700 Cinema Camera
Ideal for Major 4K Cinema, Television, and On-Demand Streaming Productions

Featuring a completely new, customizable, modular design, the EOS C700 meets the demands of today's productions from feature films to documentaries to episodic dramas. The EOS C700 PL camera features a Super 35mm 4.5K sensor with wide dynamic range, and can be ideal for productions requiring 4K UHD TV or 4K DCI cinema deliverables. In addition to supporting the earlier XF-AVC2 recording format, the cameras also support Apple ProRes.

Recognizing that customers today demand flexibility and the ability to respond to the changing needs of productions, the EOS C700 allows users to convert between EF mount and PL mounts, and between a standard CMOS image sensor and a global shutter CMOS image sensor at Canon service facilities. The EF lens mount provides compatibility with Canon's diverse lineup of over 70 interchangeable EF lenses as well as enabling use of Canon's Dual Pixel CMOS AF technology. While the PL lens mount allow use of industry-standard PL lenses and compatibility with Cooke /i metadata communication technology.

For those wanting to shoot and deliver High Dynamic Range (HDR)4 content, the EOS C700 and EOS C700 PL are ideal - providing 15 stops of latitude, Canon s proprietary Log Gammas (Canon Log3, Canon Log2 and Canon Log) and renowned color science. Additionally, these cameras seamlessly integrate with Canon s professional 4K displays (DP-V2420, DP-V2410 or DP-V1770) for on-set color management and review that conforms to SMPTE ST 20846 standards of HDR display.

To complement these powerful new acquisition tools, Canon has turned to its trusted partner Codex to provide a fully-integrated (no cables) recording and workflow option. The combination of the EOS C700 camera with the optional Codex CDX-36150 recorder allows for high-speed 4.5K RAW recording at up to 100FPS, 4K RAW at up to 120FPS, 4K ProRes at up to 60FPS, 2K ProRes at up to 240FPS and XF-AVC at up to 60FPS.

Canon's new EOS C700, EOS C700 PL and EOS C700 GS PL are the first Cinema EOS cameras to support anamorphic shooting by utilizing a "de-squeeze" function for monitoring7, making possible the creation of images with the 2.39:1 aspect ratio typical of cinema productions. Furthermore, enabling Full HD high-frame-rate recording at a maximum of 240 fps (crop8), the camera enables smooth playback, even when slowed down, for great emotional visual expression.

Canon C700 Features

  • 4K 60P/50P: 4K image quality carries data that gives it four times the density and resolution of full HD. The C700 adds support for 60P/50P, enabling visual expression that was previously difficult to achieve in scenes with motion or moving subjects, offering clarity and sharpness without dropping frames.
  • High Frame Rate Support: 2K/120P 2K (CROP)/240P : One of our most requested features is support for high-speed shooting. The C700 allows detailed settings from 1fps to a maximum of 240fps (2K crop) to generate even greater emotion and excitement in visual expression.
  • Multi-format Recording with ProRes Internal Recording Support: This is the first Canon camera to support internal recording in the Apple ProRes intermediate codec, an essential feature that the television industry and other professionals demand from a production camera.
  • Codex Recorder CDX-36150 : Canon collaborated with Codex, the biggest name in the "A" camera market, to develop a dockable RAW recorder that fits on the C700. It uses Codex media, applications and workflow, and can output Canon Cinema RAW RMF files. It also supports 4K 120fps RAW,
  • HDR Support for On-set Monitoring: The C700 supports HDR recording with the SMPTE ST 2084 standard. It works exceptionally well with our specially-designed reference display, enabling on-set monitoring at the shooting location. The included EVF can be used with view assist for a view that's close to the ST 2084 standard.
  • Surrounding Area: The EVF/MONI OUT supports surrounding area video output. By giving the video periphery a translucent display on the OSD, it can be optimized for on-screen checking of video and video information.
  • Support for ACESproxy (ACES 1.0)* Wide Color Gamut: The C700 supports the latest version (1.0) of the ACESproxy, the ACES2 color management transmission standard advocated by AMPAS. Connect it to an input device that supports ACESproxy to deliver a standardized color space in images at the shooting and editing locations
  • Anamorphic Lens Support (De-squeezed output support): Anamorphic lenses enable one-of-a-kind visual expression and are supported on both the EF/PL mount and the RS/GS mount models.
  • EF Lens: The C700 works with EF Cinema Lenses, which combine excellent reliability and operability with the outstanding 4K-supporting optical performance that incorporates all of Canon's camera technologies, as well as the whole family of EF lenses for still photgraphy
  • CMOS Sensor: Canon's proprietary 4K Super 35mm CMOS sensor brings out all of the beauty of 4K video with our exclusive Dual Pixel CMOS AF.
  • DIGIC: The on-board Video Engine DIGIC DV has been developed by Canon to deliver amazing computational performance. It offers both image quality performance that elicits maximum beauty from 4K video and stress- free operability.
  • Reference Display: Canon's high-brightness, high-resolution displays support 4K RAW. They are available in 24-inch for on-set use and 30-inch for post-production editing, and enable the same looks throughout the workflow.
  • Support for Canon Log 3: As with Canon Log2 and Canon Log, Canon Log 3 is a gamma that anticipates a post-production finishing process. In comparison with Canon Log, it offers a wider dynamic range while retaining performance in darker regions and the 18% reference (1600% / 14-STOP equivalent), and achieves equal output in wide regions of Log space
  • Support for Dual Pixel CMOS AF: 4K shooting calls for focus accuracy so precise it can't be checked on an HD monitor. Dual Pixel CMOS AF expands the distance measuring area to significantly reduce focus problems in 4K shooting.

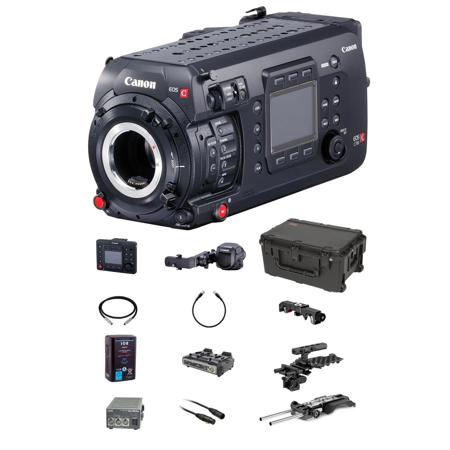

What's in the box:

  • Canon EOS C700 Body
  • Handle Unit
  • Body Cap
  • Adapter Base of Tripods
  • Base Feet (4)- WFT Attachment
  • Mic Holder
  • Measuring Hook (2)
  • Codex Recorder Reinforcing Plate
  • Cable Clamp Base
  • Allen Key
  • Button Battery
  • Canon 1 Year Warranty
  • Canon Production Accessory Bundle Plus for C700
