Review Summary
CMOS Sensor
Triple Digic DV 5
Total: Approx. 11.54 megapixels (4622 x 2496)
4K/2K: Approx. 8.85 megapixels (4096 x 2160) - when 4096 x 2160 or 2048 x 1080 is selected as the resolution
Effective: Approx. 8.29 megapixels (3840 x 2160) - when 3840 x 2160 or 1920 x 1080 is selected as the resolution
59.94, 50.00, 24.00Hz
59.94 Hz mode: 59.94p/59.94i/29.97p/23.98p
50.00Hz mode: 50p/50i/25p
24.00Hz mode: 24p
PL
Standard
Speed, Angle, Clear Scan, Slow, Off
Either 1/3 or 1/4 steps selected as speed increment
Normal: 160 to 25,600
Expanded: 100 to 102,400
Normal: -2 to 42 dB
Expanded: -6 to 54 dB
Increments: 0.5 dB when Fine is selected
Normal: 2, 4, 6 stops
Expansion: 2, 4, 6, 8, 10 stops
Mechanism: Motorized
Manual Focus
3.0" (7.66cm) diagonal
Approximately: 1.036
CFast Card Slot: 2 x slots (records XF-AVC/ProRes), custom pictures, metadata recording
SDXC Card Slot: 1 s slot (records movies (XF-AVC (proxy), photos (JPEG), custom pictures, metadata, menus and other data
Video:
XF-AVC/ MPEG-4 AVC/H.264
ProRes/ Apple ProRes Codec
Raw / Uncompressed
Audio:
Linear PCM (24-bit 48 kHz)
4 - channel recording
XF-AVC YCC:
4096x2160: YCC422 10-bit
3840x2160: YCC422 10-bit
2048x1080: YCC422 10-bit
1920x1080: YCC422 10-bit
XF-AVC RGB:
2048x1080: RGB444 12-bit
1920x1080: RGB444 12-bit
2048x1080: RGB444 10-bit
1920x1080: RGB444 10-bit
ProRes YCC:
4096x2160: YCC422 10-bit
3840x2160: YCC422 10-bit
2048x1080: YCC422 10-bit
1920x1080: YCC422 10-bit
ProRes RGB:
2048x1080: RGB444 12-bit
1920x1080: RGB444 12-bit
RAW:
Bit Depth: 10/12-bit
Resolution: 4096 x 2160
XF-AVC (Proxy):
2048x1080: YCC420 8-bit
1920x1080: YCC420 8-bit
Bit Rate: 24/35 Mbps Long-GOP
Operation Mode: Rec run, free run, regeneration
Count-Up: Non-drop frame (drop frame only in 59.94 Hz mode)
Canon Log 3
Canon Log 2
Canon Log
Wide DR
Cinema Gamut
BT.2020 Gamut
DCI-P3 Gamut
BT.709 Gamut
BT.709
BT.2020
DCI
ACESproxy
HDR-ST2084
Input:
Genlock: 1 x BNC (also serves as Sync Out)
Timecode: 1 x BNC (input/out switching)
Remote: A/B
Mic:2 x XLR-3pin
Output:
Monitor: 2 x outputs
SDI: 4 x BNC
HDMI: 1 x HDMI
Headphone: 1 x jack
Control:
Lens: 1 x terminal
Ethernet: 1 x terminal
Ctrl: 1 x terminal
Standards: IEEE 802.11b/g/n (2.4GHz band), IEEE 802.11a/n (5GHz band)
Transmission Frequencies and Channels: IEEE 802.11b/g/n (2.4 GHz band), 2412-2462MHz, 1-11ch (US, Canada, Korea, Taiwan, Philippine, Mexico, Saint Pierre, Miquelon, Brazil) 2412-2472 MHz, 1-13ch (in countries other than the ones listed above)
Authentication: Open system, WPA-PSK, WPA2-PSK
Encryption: WEP-64, WEP-128, TKIP, AES
Bit-Rate/Resolution/Frame Rate:
9 Mbps/4 Mbps: 1920x1080 [59.94i/50.00i]
2 Mbps: 1280x720 [29.97p/25.00p]
1.5 Mbps: 720x480(/579)/[59.94i/50.00i]
Audio:
MPEG-2 ACC-LC
Audio Rate:
128 Kbps (Variable Bit Rate)
Transfer Media:
Wi-Fi
Ethernet
Protocols:
UDP, RTP, RTP + FEC, RTSP + RTP
Error Correction: FEC
Input: 12 VDC (4-pin XLR)
Output: 12/24 VDC 2 A (D-Tap)
6.6 x 6.1 x 13.2" (16.7 x 15.4 x 33.6cm)
Approx. 7.9 lbs (3.6kg)
192223016835 | 013803276169 | 660685187580

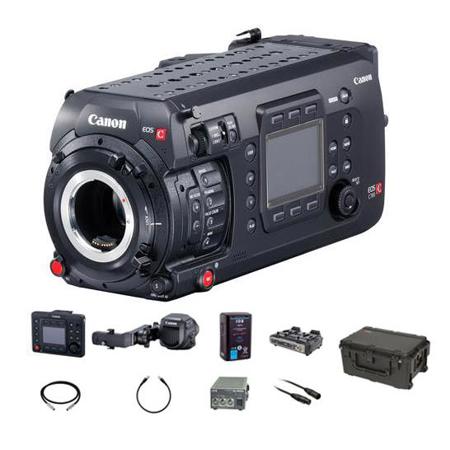

Canon EOS C700 Cinema Camera
Ideal for Major 4K Cinema, Television, and On-Demand Streaming Productions
Featuring a completely new, customizable, modular design, the EOS C700 meets the demands of today's productions from feature films to documentaries to episodic dramas. The EOS C700 PL camera features a Super 35mm 4.5K sensor with wide dynamic range, and can be ideal for productions requiring 4K UHD TV or 4K DCI cinema deliverables. In addition to supporting the earlier XF-AVC2 recording format, the cameras also support Apple ProRes.
Recognizing that customers today demand flexibility and the ability to respond to the changing needs of productions, the EOS C700 allows users to convert between EF mount and PL mounts, and between a standard CMOS image sensor and a global shutter CMOS image sensor at Canon service facilities. The EF lens mount provides compatibility with Canon's diverse lineup of over 70 interchangeable EF lenses as well as enabling use of Canon's Dual Pixel CMOS AF technology. While the PL lens mount allow use of industry-standard PL lenses and compatibility with Cooke /i metadata communication technology.
For those wanting to shoot and deliver High Dynamic Range (HDR)4 content, the EOS C700 and EOS C700 PL are ideal - providing 15 stops of latitude, Canon s proprietary Log Gammas (Canon Log3, Canon Log2 and Canon Log) and renowned color science. Additionally, these cameras seamlessly integrate with Canon s professional 4K displays (DP-V2420, DP-V2410 or DP-V1770) for on-set color management and review that conforms to SMPTE ST 20846 standards of HDR display.
To complement these powerful new acquisition tools, Canon has turned to its trusted partner Codex to provide a fully-integrated (no cables) recording and workflow option. The combination of the EOS C700 camera with the optional Codex CDX-36150 recorder allows for high-speed 4.5K RAW recording at up to 100FPS, 4K RAW at up to 120FPS, 4K ProRes at up to 60FPS, 2K ProRes at up to 240FPS and XF-AVC at up to 60FPS.
Canon's new EOS C700, EOS C700 PL and EOS C700 GS PL are the first Cinema EOS cameras to support anamorphic shooting by utilizing a "de-squeeze" function for monitoring7, making possible the creation of images with the 2.39:1 aspect ratio typical of cinema productions. Furthermore, enabling Full HD high-frame-rate recording at a maximum of 240 fps (crop8), the camera enables smooth playback, even when slowed down, for great emotional visual expression.
