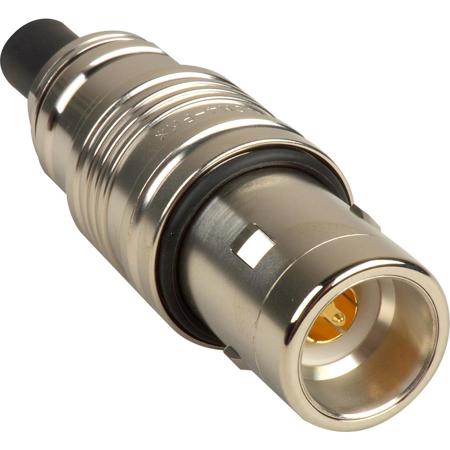

Canare Tri-K Pro CCM4-PK Male Triaxial Connector for L-4CFTX Cable
See all Canare items

Canare Tri-K Pro CCM4-PK Male Triaxial Connector for L-4CFTX Cable

SKU: CACCM4PK
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Canare P-A25F: Picture 1 regular
Canare nare BCP-A25F 75 Ohms BNC Crimp Plugs
$3.31
Canare BCP-A3: Picture 1 regular
Canare BCP-A3 75 Ohms BNC Crimp Connector
$3.05
Canare BCP-A4: Picture 1 regular
Canare BCP-A4 BNC Crimp Style Connector for LV-61S/8241/8279/Replaces BCP-4B
$3.05
Canare BCP-A42: Picture 1 regular
Canare BCP-A42 75 Ohms BNC Crimp Connector for 1505F Coaxial Cable
$3.31
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Canare CCM4-PK Specifications

  • Applications

    SMPTE compatible
    Male, female and panel mount connectors

  • Applicable Cable

    Canare: L-4CFTX
    Belden: 9267, 1856A, 1857A
    Gepco: LVT-61859, VT-61859

  • Boot or Dust Cap

    CB22

  • Tools

    TC-1
    TCD-316C

  • Retro Fit Kit

    BN9128B

  • Impedance

    75 Ohms

  • Bandwidth VSWR Return Loss

    DC-1.5 GHz
    <1.1 >26dB

  • Center Contact

    Crimp

  • Material

    Inner Body/Plating: Brass & Phosphor Bronze/Gold
    Body/Plating: Brass/Nickel
    Center Contact/Plating: Male=Brass
    Female=Beryllium Copper/ Gold

  • Dielectric

    PTFE & POM

  • Cable Retention

    >100lbs (>45kg)

  • Insulation Resistance at 500V DC

    >5000 MOhms

  • With Stand Voltage

    1500V AC 1 min.

  • Center Contact Resistance

    <10 miliOhms

  • Operating temperature

    -40 deg. to +185 deg. F / -40 deg. to +85 deg. C
    Humidity: 85%

  • Life Cycles

    1000 Times

About Canare CCM4-PK

The Canare Tri-K Pro CCM4-PK Male Triaxial Connector is specially designed for L-4CFTX Cable.

Canare CCM4-PK Features

  • Push-lock mechanism - no cable stress when detatching to prevent cable disconnection
  • Simple construction for easy assembly
  • Sturdy construction

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Push-lock mechanism
  • Simple construction for easy assembly
  • Sturdy construction
