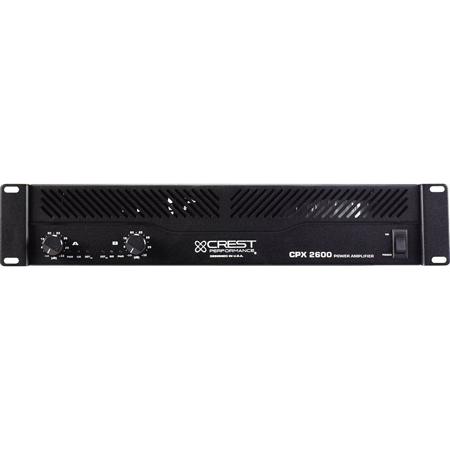

Crest Audio CPX2600 Stereo Professional Power Amplifier, 2600W at 4Ohms Bridge Mode, 20Hz-20kHz RMS Frequency Response

The Crest Audio CPX2600 2600W Stereo Pro Power Amplifier is an affordable line of amplifiers geared toward the MI and DJ markets. A tradition of great sound quality, flexibility and reliability is carried over into the Crest Performance series. Industry standard connectors and features make the CPX a great backbone for mobile sound systems, project studios and many other applications. Musicians will also find CPX as the power amp of choice.

Power points
Crest CPX amps are available in three models, CPX900, CPX1500 and CPX2600. Power capabilities range from 180 Watts to 2200 Watts. CPX amps will drive loads that range from 8 Ohms stereo to 2 Ohms stereo or 4 Ohms bridged.

Feature set
With a comprehensive set of features including built-in signal limiting, low pass filters and low frequency crossovers with direct outputs, the CPX line addresses sever.

Protection Circuitry
GCL (Gain Comparator Limiting)
Monitors input/output gain and reduces signal when distortion or excessive high current conditions occur. Protects loudspeakers from dangerous transients and unexpected level changes. Transparent in operation, yet very effective for its designed purpose.

Thermal
Amp monitors internal heat sink temperature and temporarily shuts down during extreme thermal conditions.

DC Triac Crowbar
Prevents amplifier from putting out or receiving dangerous DC over the speaker lines.

Turn On/Off Muting
Outputs are muted during turn on and turn off to prevent audible pop through speakers. GCL Gain Comparator Limiting system with rear panel defeat switch.

Built-in Crossover
150 Hz, -24 dB per octave Linkwitz-Riley filter, tuned for subs Individual in/out switches for Channels A and B 1/4" daisy chain outputs.

Built-in low cut filter
-18 dB per octave at 80 Hz Individual in/out switches for Channels A and B

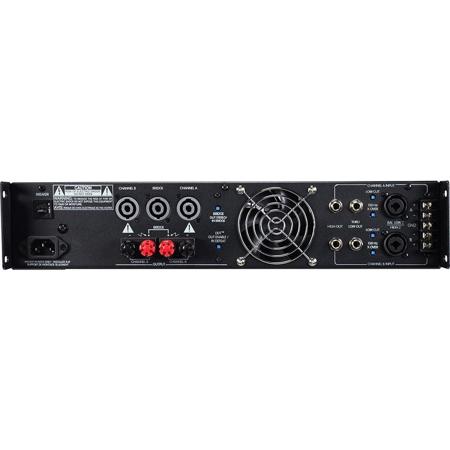

Input connectors
Barrier strip, Female XLR 1/4" TRS Pin 2 hot.

Outputs connectors
Speakons for Ch A and B and Bridged mono Binding posts for Bridge mode.
