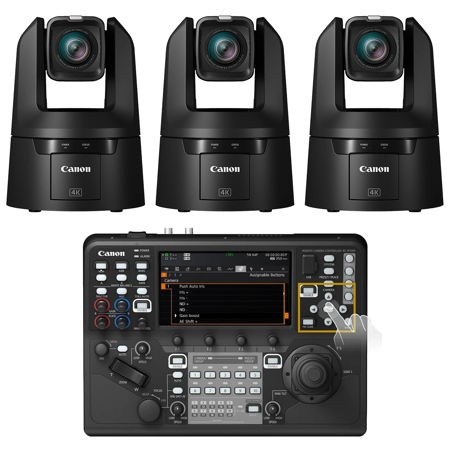

Canon CR-N700 13.4MP 4K UltraHD 15x PTZ Camera, Satin Black with RC-IP1000 Remote Camera Controller

SKU: CACRN700BA MFR: 6022C001 A
Earn VIP Reward Points

PACKAGE INCLUDES:

  • Canon CR-N700 13.4MP 4K UltraHD 15x PTZ Camera, Satin Black
    Canon CR-N700 13.4MP 4K UltraHD 15x PTZ Camera, Satin Black

    Qty: 3

  • +
  • Canon RC-IP1000 Remote Camera Controller
    Canon RC-IP1000 Remote Camera Controller
  • +
  • Show more

Note: 1 or more items are unavailable for immediate shipping

Key Features

  • Capture stunning 4K UltraHD video with exceptional Image Quality, perfect for professional broadcasts.
  • Experience versatile coverage with 15x optical Zoom Capability, bringing distant subjects into clear focus.
  • Enjoy smooth, precise movements with rapid Pan/Tilt Speed, ideal for dynamic event filming.
  • Achieve brilliant visuals even in challenging environments, thanks to superior Low Light performance.
  • Stay connected and control your camera remotely with multiple Connectivity Options for seamless workflows.
  • Effortlessly integrate and operate this PTZ camera with its intuitive design, ensuring Ease of Use.
See More Product Details
Temporarily On Backorder?Expected Availability: 04/2026
Free Shipping

See Options

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Canon CR-N700 13.4MP 4K UltraHD 15x PTZ Camera, Satin Black Specifications

Camera
  • Color

    Satin Black

  • Image Sensor

    Type 1.0 (1.0 in.) single-plate CMOS sensor
    Total pixels: approx. 13.40 megapixels
    Effective pixels: approx. 8.29 megapixels (3840 x 2160)

  • Lens

    f=8.3 - 124.5 mm, F/2.8 - 4.5, 15x optical zoom, 9-bladed iris diaphragm
    35mm equivalent focal length: approx. 25.5 (W) - 382.5 mm (T)

  • Zoom

    Optical: 15x
    Digital: 20x
    Advanced Zoom (FHD): 30x

  • Lens Configuration

    14 groups of 18 elements (using 2-sided aspherical lenses and super-UD lenses)

  • Minimum Focusing Distance

    1 cm at wide end, 60 cm across entire zooming range

  • Angle of View

    Horizontal: 73.0 (W) - 5.7 Degree (T)
    Vertical: 45.2 Degree (W) - 3.2 Degree (T)

  • Shutter Speed

    1/3 - 1/2000 sec. (specific values depend on the frame frequency)

  • Iris

    Manual/Automatic aperture

  • ND Filter

    3 levels: ND1 (ND: 1/4), ND2 (ND: 1/16), ND3 (ND: 1/64)
    Material: Glass (with sunlight burn-in protection) Turret switched, motor-driven.

  • White Balance

    AUTO (AWB), Set A, Set B, preset settings (daylight: 5,600 K, tungsten lamp: 3,200 K), color temperature setting (2,000 K - 15,000 K), Manual

  • Focus

    Focus modes: Manual, AF-boosted MF, Continuous AF, Face Detection & Tracking, Face only AF, Eye Detection.
    AF type: Dual Pixel CMOS AF, Contrast AF

  • Gamma

    BT.709 Normal, BT.709 Wide DR, BT.709 Standard, Canon Log 3, HDR (PQ), HDR(HLG)

  • Image Stabilizer

    Optical

  • Pan and Tilt

    Pan operation range: Horizontal +/-170 Degree
    Pan operation speed: 0.1 Degree - 100 Degree /sec.
    Tilt operation range: Vertical -30 Degree - +90 Degree
    Tilt operation speed: 0.1 Degree - 100 Degree /sec.

Video Output Options

Jump to...
  • G-SDI

    1920 x 1080: 59.94P/59.94i/50.00P/50.00i/29.97P/25.00P/23.98P (4:2:2 10bit)
    1280 x 720: 59.94p/50.00P (4:2:2 10bit)
    720x576: 50.00i (4:2:2 10bit)
    720x480: 59.94i (4:2:2 10bit)

  • 12G-SDI

    3840 x 2160: 59.94P/50.00P/29.97P/25.00P/23.98P (4:2:2 10bit)
    1920 x 1080: 59.94P/59.94i/50.00P/50.00i/29.97P/25.00P/23.98P (4:2:2 10bit)
    1280 x 720: 59.94p/50.00P (4:2:2 10bit)
    720 x 576: 50.00i (4:2:2 10bit)
    720 x 480: 59.94i (4:2:2 10bit)

  • HDMI

    3840 x 2160: 59.94P/50.00P/29.97P/25.00P/23.98P (4:2:2 10bit)
    1920 x 1080: 59.94P/59.94i/50.00P/50.00i/29.97P/25.00P/23.98P (4:2:2 10bit)
    1280 x 720: 59.94p/50.00P (4:2:2 10bit)
    720x576: 50.00P (4:2:2 10bit)
    720x480: 59.94P (4:2:2 10bit)

  • IP

    3840 x 2160: 59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps, 5.99fps, 5.00 fps (4:2:0 8 bit)
    1920 x 1080: 59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps, 5.99fps, 5.00 fps (4:2:0 8 bit)
    1280 x 720: 59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps, 5.99fps, 5.00 fps (4:2:0 8 bit)

  • IP (Contd.)

    640 x 360: 59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps, 5.99fps, 5.00 fps (4:2:0 8 bit)

  • Number of Presets

    Max. 100 (including home position)

Interface

Jump to...
  • Communication Control

    LAN, Wi-Fi, Serial, IR

  • Network Terminal

    LAN x 1, RJ45, 1000Base-T

  • 12G/3G-SDI OUT Terminal

    BNC jack x1 12GSDI & x1 3G-SDI, 0.8 Vp-p/75 Ohm
    SMPTE ST 259, SMPTE ST 292, SMPTE ST 424/425, SMPTE ST2081, SMPTE ST 2082, SMPTE ST
    272, SMPTE ST 299 compliant
    Embedded audio, Time code (VITC/LTC)

  • Gen-Lock Terminal

    BNC jack x 1, 1.0 Vp-p/75 Ohm

  • Time Code Terminal

    BNC jack x 1, 1.3 Vp-p/50 Ohm or less

  • RS-422 Terminal

    RJ45 connector x 1

  • Audio Input 1 / Input 2 Terminals

    INPUT (3-pin jack) (pin1: shield, pin2: hot, pin3: cold), 2 sets, balanced
    Sensitivity (MIC): -60 dBu (Manual volume center, full scale -18 dB)/600 Ohm/Att.: 20 dB
    Sensitivity (LINE): +4 dBu (Manual volume center, full scale -18 dB)/1 k Ohm or more
    Supply Voltage: 48 V DC (Bias resistance: 6.8 k Ohm)

  • Mic Terminal

    3.5 mm stereo mini jack (unbalanced, plug-in power supported)
    Sensitivity (MIC): -72 dBV (Manual volume center, full scale -18 dB)/1 k Ohm or more/Att.: 20 dB
    Sensitivity (LINE): -10 dBV (Manual volume center, full scale -18 dB)/1 k Ohm or more
    Supply Voltage: 2.4 V DC (Bias resistance: 2.2 k Ohm)

  • Media Slot

    SD Card x1, microSD card slot x 1, future expansion, recording unavailable

Physical

Jump to...
  • Dimensions (W x H x D)

    7.87 x 10.59 x 8.19" (200 x 269 x 208mm) (Approx.) (Excluding protrusions)

  • Weight

    9.5 lbs (4.3kg) (Approx.)

  • Operating Environment

    Temperature: +32 Degree F - +104 Degree F (0 Degree C - +40 Degree C)
    Humidity: 10% - 90% (without condensation)

  • Storage Environment

    Temperature: +32 Degree F - +104 Degree F (0 Degree C - +40 Degree C)
    Humidity: 10% - 90% (without condensation)

  • Power Supply

    PoE: PoE++ power supply via LAN connector (IEEE802.3bt compliant)
    External power source: 12 V DC (4-pin XLR input)

  • Power Consumption

    PoE+ Input: Approx. TBD W max. (body only)
    DC Input: Approx. TBD W max. (body only)

  • Supported Controllers

    Hardware: RC-IP100
    Software: Remote Camera Control Application

  • UPC Codes

    192223295407 | 013803356151 | 013803376760

3 Accessories for Canon CR-N700 13.4MP 4K UltraHD 15x PTZ Camera, Satin Black with RC-IP1000 Remote Camera Controller

  • All Accessories (3)
  • Controllers (1)
  • Subscription & License (2)

About Canon CR-N700 13.4MP 4K UltraHD 15x PTZ Camera, Satin Black

What sets the CR-N700 13.4MP 4K UltraHD 15x PTZ Camera apart is its high-tech and advanced features, designed for professional use in high-end broadcasting, TV studios, and live events. This sophisticated camera boasts an impressive 4K UHD (3840x2160) resolution, powered by a 1.0"-Type CMOS sensor and DIGIC DV7 processor, ensuring clear and detailed imagery.

The innovative CR-N700 camera offers a 15x optical zoom (25.5mm - 382.5mm, 35mm equivalent), allowing for a wide range of focal lengths and the ability to capture distant objects without compromising on image quality. When shooting in Full HD, the camera's lens extends to a 30x Advanced Zoom, further enhancing its versatility.

Equipped with Canon's proprietary Dual Pixel CMOS AF technology and advanced EOS iTR AF X, the CR-N700 camera ensures fast, intelligent, and extremely accurate focusing. The deep learning autofocus technology locks onto a subject's head, even if they turn away, while the Eye Detection AF tracks the subject's pupil for precise focusing.

The CR-N700 camera also features multiple protocols for seamless integration, including SRT and NDI|HX1, which help produce high-quality video streams for broadcasters. It also includes RTMP/RTMPS, RTP/RTSP, and Canon XC protocol, as well as FreeD for integration into virtual productions.

For comprehensive connectivity, the CR-N700 camera offers 12G-SDI, HDMI or IP (PoE++) all supporting 4K60P, as well as professional dual XLR audio inputs. It also includes 3G-SDI, Time Code, and GEN-LOCK.

The CR-N700 camera captures stunning HDR imagery with direct recording into either PQ or HLG formats. It also includes Canon Log 3 and Wide Dynamic Range settings to match other Canon cameras' look. The camera's high-precision drive mechanism allows for fine Pan and Tilt movement as slow as 0.1 Degree /s.

Finally, the CR-N700 camera's Night Mode allows for footage capture in near-darkness, extending the spectrum visible to the camera. This makes it an ideal choice for video surveillance and live streaming, providing clear and detailed images even in challenging lighting conditions.

Canon CR-N700 13.4MP 4K UltraHD 15x PTZ Camera, Satin Black Features

  • 4K 60P Image Quality
  • 1.0-Type CMOS sensor
  • DIGIC DV7 Processor
  • 15x Optical and 30x Advanced zoom
  • Region of Interest cropping
  • HDR Imagery
  • Dual Pixel CMOS AF with EOS iTR AF X
  • Various Protocols Supported
  • Flexible connectivity

Key Features

  • Capture stunning 4K UltraHD video with exceptional Image Quality, perfect for professional broadcasts.
  • Experience versatile coverage with 15x optical Zoom Capability, bringing distant subjects into clear focus.
  • Enjoy smooth, precise movements with rapid Pan/Tilt Speed, ideal for dynamic event filming.
  • Achieve brilliant visuals even in challenging environments, thanks to superior Low Light performance.
  • Stay connected and control your camera remotely with multiple Connectivity Options for seamless workflows.
  • Effortlessly integrate and operate this PTZ camera with its intuitive design, ensuring Ease of Use.

What's in the box:

  • Canon CR-N700 13.4MP 4K Ultra HD 15x PTZ Camera (Satin Black)
  • Remote Controller
  • Celling Plate
  • Celling Plate Fixing Screw
  • Safety Wire
  • Camera-to-Mount Safety Wire
  • Battery for Remote Controller
  • Canon 3 Year Limited Warranty
