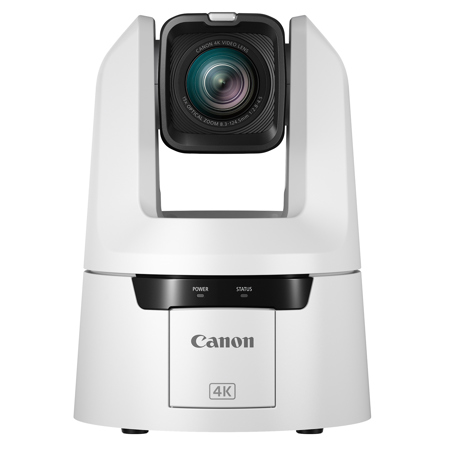

Canon CR-N700 13.4MP 4K UltraHD 15x PTZ Camera, Titanium White

SKU: CACRN700W MFR: 6022C002
Earn VIP Reward Points

Key Features

  • Capture stunning 4K Ultra HD video with the Canon PTZ camera's exceptional image quality.
  • Achieve smooth, precise camera movements with pan, tilt, and zoom functionality for any event.
  • Remotely control this PTZ camera via LAN, Wi-Fi, or serial for seamless integration into your setup.
  • Enjoy versatile connectivity with 12G/3G-SDI and HDMI outputs for professional video workflows.
  • Utilize the 15x optical zoom to get close-up shots without losing clarity, perfect for live broadcasts.
  • Benefit from advanced features like Genlock and ND filters for superior video production control.
See More Product Details
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$229.99

3 Year

$274.99

4 Year

$369.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Learn
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Canon CR-N700 Specifications

Camera
  • Color

    Titanium White

  • Image Sensor

    Type 1.0 (1.0 in.) single-plate CMOS sensor
    Total pixels: approx. 13.40 megapixels
    Effective pixels: approx. 8.29 megapixels (3840 x 2160)

  • Lens

    f=8.3 - 124.5 mm, F/2.8 - 4.5, 15x optical zoom, 9-bladed iris diaphragm
    35mm equivalent focal length: approx. 25.5 (W) - 382.5 mm (T)

  • Zoom

    Optical: 15x
    Digital: 20x
    Advanced Zoom (FHD): 30x

  • Lens Configuration

    14 groups of 18 elements (using 2-sided aspherical lenses and super-UD lenses)

  • Minimum Focusing Distance

    1 cm at wide end, 60 cm across entire zooming range

  • Angle of View

    Horizontal: 73.0 (W) - 5.7 Degree (T)
    Vertical: 45.2 Degree (W) - 3.2 Degree (T)

  • Shutter Speed

    1/3 - 1/2000 sec. (specific values depend on the frame frequency)

  • Iris

    Manual/Automatic aperture

  • ND Filter

    3 levels: ND1 (ND: 1/4), ND2 (ND: 1/16), ND3 (ND: 1/64)
    Material: Glass (with sunlight burn-in protection) Turret switched, motor-driven.

  • White Balance

    AUTO (AWB), Set A, Set B, preset settings (daylight: 5,600 K, tungsten lamp: 3,200 K), color temperature setting (2,000 K - 15,000 K), Manual

  • Focus

    Focus modes: Manual, AF-boosted MF, Continuous AF, Face Detection & Tracking, Face only AF, Eye Detection.
    AF type: Dual Pixel CMOS AF, Contrast AF

  • Gamma

    BT.709 Normal, BT.709 Wide DR, BT.709 Standard, Canon Log 3, HDR (PQ), HDR(HLG)

  • Image Stabilizer

    Optical

  • Pan and Tilt

    Pan operation range: Horizontal +/-170 Degree
    Pan operation speed: 0.1 Degree - 100 Degree /sec.
    Tilt operation range: Vertical -30 Degree - +90 Degree
    Tilt operation speed: 0.1 Degree - 100 Degree /sec.

Video Output Options

Jump to...
  • G-SDI

    1920 x 1080: 59.94P/59.94i/50.00P/50.00i/29.97P/25.00P/23.98P (4:2:2 10bit)
    1280 x 720: 59.94p/50.00P (4:2:2 10bit)
    720x576: 50.00i (4:2:2 10bit)
    720x480: 59.94i (4:2:2 10bit)

  • 12G-SDI

    3840 x 2160: 59.94P/50.00P/29.97P/25.00P/23.98P (4:2:2 10bit)
    1920 x 1080: 59.94P/59.94i/50.00P/50.00i/29.97P/25.00P/23.98P (4:2:2 10bit)
    1280 x 720: 59.94p/50.00P (4:2:2 10bit)
    720 x 576: 50.00i (4:2:2 10bit)
    720 x 480: 59.94i (4:2:2 10bit)

  • HDMI

    3840 x 2160: 59.94P/50.00P/29.97P/25.00P/23.98P (4:2:2 10bit)
    1920 x 1080: 59.94P/59.94i/50.00P/50.00i/29.97P/25.00P/23.98P (4:2:2 10bit)
    1280 x 720: 59.94p/50.00P (4:2:2 10bit)
    720x576: 50.00P (4:2:2 10bit)
    720x480: 59.94P (4:2:2 10bit)

  • IP

    3840 x 2160: 59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps, 5.99fps, 5.00 fps (4:2:0 8 bit)
    1920 x 1080: 59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps, 5.99fps, 5.00 fps (4:2:0 8 bit)
    1280 x 720: 59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps, 5.99fps, 5.00 fps (4:2:0 8 bit)

  • IP (Contd.)

    640 x 360: 59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps, 5.99fps, 5.00 fps (4:2:0 8 bit)

  • Number of Presets

    Max. 100 (including home position)

Interface

Jump to...
  • Communication Control

    LAN, Wi-Fi, Serial, IR

  • Network Terminal

    LAN x 1, RJ45, 1000Base-T

  • 12G/3G-SDI OUT Terminal

    BNC jack x1 12GSDI & x1 3G-SDI, 0.8 Vp-p/75 Ohm
    SMPTE ST 259, SMPTE ST 292, SMPTE ST 424/425, SMPTE ST2081, SMPTE ST 2082, SMPTE ST
    272, SMPTE ST 299 compliant
    Embedded audio, Time code (VITC/LTC)

  • Gen-Lock Terminal

    BNC jack x 1, 1.0 Vp-p/75 Ohm

  • Time Code Terminal

    BNC jack x 1, 1.3 Vp-p/50 Ohm or less

  • RS-422 Terminal

    RJ45 connector x 1

  • Audio Input 1 / Input 2 Terminals

    INPUT (3-pin jack) (pin1: shield, pin2: hot, pin3: cold), 2 sets, balanced
    Sensitivity (MIC): -60 dBu (Manual volume center, full scale -18 dB)/600 Ohm/Att.: 20 dB
    Sensitivity (LINE): +4 dBu (Manual volume center, full scale -18 dB)/1 k Ohm or more
    Supply Voltage: 48 V DC (Bias resistance: 6.8 k Ohm)

  • Mic Terminal

    3.5 mm stereo mini jack (unbalanced, plug-in power supported)
    Sensitivity (MIC): -72 dBV (Manual volume center, full scale -18 dB)/1 k Ohm or more/Att.: 20 dB
    Sensitivity (LINE): -10 dBV (Manual volume center, full scale -18 dB)/1 k Ohm or more
    Supply Voltage: 2.4 V DC (Bias resistance: 2.2 k Ohm)

  • Media Slot

    SD Card x1, microSD card slot x 1, future expansion, recording unavailable

Physical

Jump to...
  • Dimensions (W x H x D)

    7.87 x 10.59 x 8.19" (200 x 269 x 208mm) (Approx.) (Excluding protrusions)

  • Weight

    9.5 lbs (4.3kg) (Approx.)

  • Operating Environment

    Temperature: +32 Degree F - +104 Degree F (0 Degree C - +40 Degree C)
    Humidity: 10% - 90% (without condensation)

  • Storage Environment

    Temperature: +32 Degree F - +104 Degree F (0 Degree C - +40 Degree C)
    Humidity: 10% - 90% (without condensation)

  • Power Supply

    PoE: PoE++ power supply via LAN connector (IEEE802.3bt compliant)
    External power source: 12 V DC (4-pin XLR input)

  • Power Consumption

    PoE+ Input: Approx. TBD W max. (body only)
    DC Input: Approx. TBD W max. (body only)

  • Supported Controllers

    Hardware: RC-IP100
    Software: Remote Camera Control Application

  • UPC Code

    013803356168

Related Articles & Videos

Canon Announces New Camcorders, PTZ Camera, and More

Canon Announces New Camcorders, PTZ Camera, and More

A massive announcement has come from Canon this week as they prepare to launch five new camcorders and a new professional display onto the market. Aimed at meeting the needs of a var...

Read more

About Canon CR-N700

The CR-N700 4K PTZ camera is a professional 4K PTZ camera aimed at high-end Broadcast, TV Studios and Live Events. With outstanding 4K60P 4:2:2 10-bit HDR image quality, it offers broadcasters highly advantageous features such as Dual Pixel AF with 'deep learning' auto focus, 12G-SDI connectivity, multiple protocols for streaming and control as well as region of interest crop capabilities.

4K detail for imaging excellence
A 1.0"-Type CMOS sensor and DIGIC DV7 processor deliver 4K UHD 60P imagery in up to 4:2:2 10-bit 12G-SDI and HDMI for broadcast-standard image quality, plus 4K60P over IP.

Stunning optical precision
The CR-N700's high-performance lens has a 15x optical zoom (25.5mm - 382.5mm, 35mm equivalent) plus a 30x Advanced Zoom when shooting in Full HD. When conditions are unstable, Canon's renowned Optical Image Stabilization allows you to still capture steady footage.

Award-winning Autofocus technology
Fast, intelligent, and extremely accurate focusing via multiple modes thanks to Canon's proprietary Dual Pixel CMOS AF technology with advanced EOS iTR AF X.

EOS iTR AF X
Deep learning autofocus technology locks on to a subject's head, even if they turn away.

Eye Detection AF
Detects and tracks the subject's pupil for precise focusing.

Face Priority/Face Only AF
Face Priority AF prioritizes the subject's face, while Face Only AF responds when a face is detected.

Touch AF
Select your own focus point on screen with the Remote Camera Control Application.

Dual Pixel Focus Guide
A visual representation showing when a subject is in focus.

Multiple protocols for seamless integration
The CR-N700 features SRT and NDI|HX1 protocols that help produce high quality video streams for broadcasters. RTMP/RTMPS, RTP/RTSP and Canon XC protocol are also included, as well as FreeD for integration into virtual productions.

Comprehensive connectivity
Connect flexibly with 12G-SDI, HDMI or IP (PoE++) all supporting 4K60P, as well as professional dual XLR audio inputs. The CR-N700 also includes 3G-SDI. Time Code and GEN-LOCK.

Powerful HDR imagery and low light capture
Achieve stunning HDR imagery with direct recording into either PQ or HLG formats. A range of custom picture settings includes Canon Log 3 and Wide Dynamic Range to match other Canon cameras' look.

Smooth and precise control
The CR-N700 has a high-precision drive mechanism for fine Pan and Tilt movement as slow as 0.1 Degree /s. Compatible with the RC-IP100 controller and Remote Camera Control Application controllers, it can also be configured with selected third-party controllers.

Crop function - single camera, two video feeds
Select and extract a point of interest via a separate feed. The chosen area can then be output as a main or secondary signal and up to two cropped areas can be set in FHD.

Night Mode
Capture footage in near-darkness thanks to IR Mode, which extends the spectrum visible to the camera.

Canon CR-N700 Features

  • 4K 60P Image Quality
  • 1.0-Type CMOS sensor
  • DIGIC DV7 Processor
  • 15x Optical and 30x Advanced zoom
  • Region of Interest cropping
  • HDR Imagery
  • Dual Pixel CMOS AF with EOS iTR AF X
  • Various Protocols Supported
  • Flexible connectivity

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Capture stunning 4K Ultra HD video with the Canon PTZ camera's exceptional image quality.
  • Achieve smooth, precise camera movements with pan, tilt, and zoom functionality for any event.
  • Remotely control this PTZ camera via LAN, Wi-Fi, or serial for seamless integration into your setup.
  • Enjoy versatile connectivity with 12G/3G-SDI and HDMI outputs for professional video workflows.
  • Utilize the 15x optical zoom to get close-up shots without losing clarity, perfect for live broadcasts.
  • Benefit from advanced features like Genlock and ND filters for superior video production control.

What's in the box:

  • Canon CR-N700 13.4MP 4K Ultra HD 15x PTZ Camera (Titanium White)
  • Remote Controller
  • Celling Plate
  • Celling Plate Fixing Screw
  • Safety Wire
  • Camera-to-Mount Safety Wire
  • Battery for Remote Controller
  • Canon 3 Year Limited Warranty
