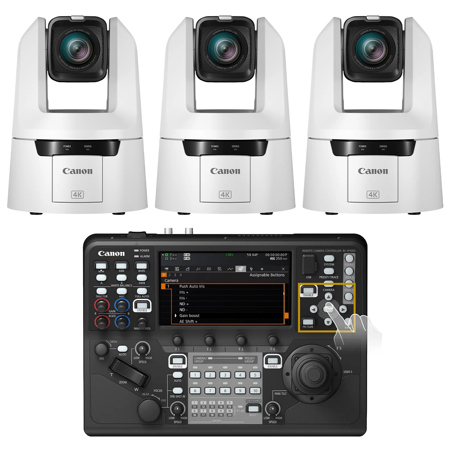

Canon CR-N700 13.4MP 4K UltraHD 15x PTZ Camera, Titanium White with RC-IP1000 Remote Camera Controller

SKU: CACRN700WA MFR: 6022C002 A
Earn VIP Reward Points

PACKAGE INCLUDES:

  • Canon CR-N700 13.4MP 4K UltraHD 15x PTZ Camera, Titanium White
    Canon CR-N700 13.4MP 4K UltraHD 15x PTZ Camera, Titanium White

    Qty: 3

  • +
  • Canon RC-IP1000 Remote Camera Controller
    Canon RC-IP1000 Remote Camera Controller
  • +
  • Show more

Note: 1 or more items are unavailable for immediate shipping

Key Features

  • Capture stunning 4K UltraHD video with exceptional image quality for professional productions.
  • Enjoy flexible camera placement with advanced Pan/Tilt/Zoom capabilities and 15x optical zoom.
  • Streamline your workflow using versatile connectivity options including SDI, HDMI, and IP.
  • Benefit from reliable performance in various lighting conditions, ensuring clear visuals always.
  • Experience seamless integration with your existing setup, making this PTZ camera easy to use.
  • Achieve precise control and smooth movements, perfect for live events and studio environments.
See More Product Details
Temporarily On Backorder?Expected Availability: 04/2026
Free Shipping

See Options

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Canon CR-N700 13.4MP 4K UltraHD 15x PTZ Camera, Titanium White Specifications

Camera
  • Color

    Titanium White

  • Image Sensor

    Type 1.0 (1.0 in.) single-plate CMOS sensor
    Total pixels: approx. 13.40 megapixels
    Effective pixels: approx. 8.29 megapixels (3840 x 2160)

  • Lens

    f=8.3 - 124.5 mm, F/2.8 - 4.5, 15x optical zoom, 9-bladed iris diaphragm
    35mm equivalent focal length: approx. 25.5 (W) - 382.5 mm (T)

  • Zoom

    Optical: 15x
    Digital: 20x
    Advanced Zoom (FHD): 30x

  • Lens Configuration

    14 groups of 18 elements (using 2-sided aspherical lenses and super-UD lenses)

  • Minimum Focusing Distance

    1 cm at wide end, 60 cm across entire zooming range

  • Angle of View

    Horizontal: 73.0 (W) - 5.7 Degree (T)
    Vertical: 45.2 Degree (W) - 3.2 Degree (T)

  • Shutter Speed

    1/3 - 1/2000 sec. (specific values depend on the frame frequency)

  • Iris

    Manual/Automatic aperture

  • ND Filter

    3 levels: ND1 (ND: 1/4), ND2 (ND: 1/16), ND3 (ND: 1/64)
    Material: Glass (with sunlight burn-in protection) Turret switched, motor-driven.

  • White Balance

    AUTO (AWB), Set A, Set B, preset settings (daylight: 5,600 K, tungsten lamp: 3,200 K), color temperature setting (2,000 K - 15,000 K), Manual

  • Focus

    Focus modes: Manual, AF-boosted MF, Continuous AF, Face Detection & Tracking, Face only AF, Eye Detection.
    AF type: Dual Pixel CMOS AF, Contrast AF

  • Gamma

    BT.709 Normal, BT.709 Wide DR, BT.709 Standard, Canon Log 3, HDR (PQ), HDR(HLG)

  • Image Stabilizer

    Optical

  • Pan and Tilt

    Pan operation range: Horizontal +/-170 Degree
    Pan operation speed: 0.1 Degree - 100 Degree /sec.
    Tilt operation range: Vertical -30 Degree - +90 Degree
    Tilt operation speed: 0.1 Degree - 100 Degree /sec.

Video Output Options

Jump to...
  • G-SDI

    1920 x 1080: 59.94P/59.94i/50.00P/50.00i/29.97P/25.00P/23.98P (4:2:2 10bit)
    1280 x 720: 59.94p/50.00P (4:2:2 10bit)
    720x576: 50.00i (4:2:2 10bit)
    720x480: 59.94i (4:2:2 10bit)

  • 12G-SDI

    3840 x 2160: 59.94P/50.00P/29.97P/25.00P/23.98P (4:2:2 10bit)
    1920 x 1080: 59.94P/59.94i/50.00P/50.00i/29.97P/25.00P/23.98P (4:2:2 10bit)
    1280 x 720: 59.94p/50.00P (4:2:2 10bit)
    720 x 576: 50.00i (4:2:2 10bit)
    720 x 480: 59.94i (4:2:2 10bit)

  • HDMI

    3840 x 2160: 59.94P/50.00P/29.97P/25.00P/23.98P (4:2:2 10bit)
    1920 x 1080: 59.94P/59.94i/50.00P/50.00i/29.97P/25.00P/23.98P (4:2:2 10bit)
    1280 x 720: 59.94p/50.00P (4:2:2 10bit)
    720x576: 50.00P (4:2:2 10bit)
    720x480: 59.94P (4:2:2 10bit)

  • IP

    3840 x 2160: 59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps, 5.99fps, 5.00 fps (4:2:0 8 bit)
    1920 x 1080: 59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps, 5.99fps, 5.00 fps (4:2:0 8 bit)
    1280 x 720: 59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps, 5.99fps, 5.00 fps (4:2:0 8 bit)

  • IP (Contd.)

    640 x 360: 59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps, 5.99fps, 5.00 fps (4:2:0 8 bit)

  • Number of Presets

    Max. 100 (including home position)

Interface

Jump to...
  • Communication Control

    LAN, Wi-Fi, Serial, IR

  • Network Terminal

    LAN x 1, RJ45, 1000Base-T

  • 12G/3G-SDI OUT Terminal

    BNC jack x1 12GSDI & x1 3G-SDI, 0.8 Vp-p/75 Ohm
    SMPTE ST 259, SMPTE ST 292, SMPTE ST 424/425, SMPTE ST2081, SMPTE ST 2082, SMPTE ST
    272, SMPTE ST 299 compliant
    Embedded audio, Time code (VITC/LTC)

  • Gen-Lock Terminal

    BNC jack x 1, 1.0 Vp-p/75 Ohm

  • Time Code Terminal

    BNC jack x 1, 1.3 Vp-p/50 Ohm or less

  • RS-422 Terminal

    RJ45 connector x 1

  • Audio Input 1 / Input 2 Terminals

    INPUT (3-pin jack) (pin1: shield, pin2: hot, pin3: cold), 2 sets, balanced
    Sensitivity (MIC): -60 dBu (Manual volume center, full scale -18 dB)/600 Ohm/Att.: 20 dB
    Sensitivity (LINE): +4 dBu (Manual volume center, full scale -18 dB)/1 k Ohm or more
    Supply Voltage: 48 V DC (Bias resistance: 6.8 k Ohm)

  • Mic Terminal

    3.5 mm stereo mini jack (unbalanced, plug-in power supported)
    Sensitivity (MIC): -72 dBV (Manual volume center, full scale -18 dB)/1 k Ohm or more/Att.: 20 dB
    Sensitivity (LINE): -10 dBV (Manual volume center, full scale -18 dB)/1 k Ohm or more
    Supply Voltage: 2.4 V DC (Bias resistance: 2.2 k Ohm)

  • Media Slot

    SD Card x1, microSD card slot x 1, future expansion, recording unavailable

Physical

Jump to...
  • Dimensions (W x H x D)

    7.87 x 10.59 x 8.19" (200 x 269 x 208mm) (Approx.) (Excluding protrusions)

  • Weight

    9.5 lbs (4.3kg) (Approx.)

  • Operating Environment

    Temperature: +32 Degree F - +104 Degree F (0 Degree C - +40 Degree C)
    Humidity: 10% - 90% (without condensation)

  • Storage Environment

    Temperature: +32 Degree F - +104 Degree F (0 Degree C - +40 Degree C)
    Humidity: 10% - 90% (without condensation)

  • Power Supply

    PoE: PoE++ power supply via LAN connector (IEEE802.3bt compliant)
    External power source: 12 V DC (4-pin XLR input)

  • Power Consumption

    PoE+ Input: Approx. TBD W max. (body only)
    DC Input: Approx. TBD W max. (body only)

  • Supported Controllers

    Hardware: RC-IP100
    Software: Remote Camera Control Application

  • UPC Codes

    192223295414 | 013803356168 | 013803376760

3 Accessories for Canon CR-N700 13.4MP 4K UltraHD 15x PTZ Camera, Titanium White with RC-IP1000 Remote Camera Controller

  • All Accessories (3)
  • Controllers (1)
  • Subscription & License (2)

About Canon CR-N700 13.4MP 4K UltraHD 15x PTZ Camera, Titanium White

The CR-N700 4K PTZ camera is a professional 4K PTZ camera aimed at high-end Broadcast, TV Studios and Live Events. With outstanding 4K60P 4:2:2 10-bit HDR image quality, it offers broadcasters highly advantageous features such as Dual Pixel AF with 'deep learning' auto focus, 12G-SDI connectivity, multiple protocols for streaming and control as well as region of interest crop capabilities.

4K detail for imaging excellence
A 1.0"-Type CMOS sensor and DIGIC DV7 processor deliver 4K UHD 60P imagery in up to 4:2:2 10-bit 12G-SDI and HDMI for broadcast-standard image quality, plus 4K60P over IP.

Stunning optical precision
The CR-N700's high-performance lens has a 15x optical zoom (25.5mm - 382.5mm, 35mm equivalent) plus a 30x Advanced Zoom when shooting in Full HD. When conditions are unstable, Canon's renowned Optical Image Stabilization allows you to still capture steady footage.

Award-winning Autofocus technology
Fast, intelligent, and extremely accurate focusing via multiple modes thanks to Canon's proprietary Dual Pixel CMOS AF technology with advanced EOS iTR AF X.

EOS iTR AF X
Deep learning autofocus technology locks on to a subject's head, even if they turn away.

Eye Detection AF
Detects and tracks the subject's pupil for precise focusing.

Face Priority/Face Only AF
Face Priority AF prioritizes the subject's face, while Face Only AF responds when a face is detected.

Touch AF
Select your own focus point on screen with the Remote Camera Control Application.

Dual Pixel Focus Guide
A visual representation showing when a subject is in focus.

Multiple protocols for seamless integration
The CR-N700 features SRT and NDI|HX1 protocols that help produce high quality video streams for broadcasters. RTMP/RTMPS, RTP/RTSP and Canon XC protocol are also included, as well as FreeD for integration into virtual productions.

Comprehensive connectivity
Connect flexibly with 12G-SDI, HDMI or IP (PoE++) all supporting 4K60P, as well as professional dual XLR audio inputs. The CR-N700 also includes 3G-SDI. Time Code and GEN-LOCK.

Powerful HDR imagery and low light capture
Achieve stunning HDR imagery with direct recording into either PQ or HLG formats. A range of custom picture settings includes Canon Log 3 and Wide Dynamic Range to match other Canon cameras' look.

Smooth and precise control
The CR-N700 has a high-precision drive mechanism for fine Pan and Tilt movement as slow as 0.1 Degree /s. Compatible with the RC-IP100 controller and Remote Camera Control Application controllers, it can also be configured with selected third-party controllers.

Crop function - single camera, two video feeds
Select and extract a point of interest via a separate feed. The chosen area can then be output as a main or secondary signal and up to two cropped areas can be set in FHD.

Night Mode
Capture footage in near-darkness thanks to IR Mode, which extends the spectrum visible to the camera.

Canon CR-N700 13.4MP 4K UltraHD 15x PTZ Camera, Titanium White Features

  • 4K 60P Image Quality
  • 1.0-Type CMOS sensor
  • DIGIC DV7 Processor
  • 15x Optical and 30x Advanced zoom
  • Region of Interest cropping
  • HDR Imagery
  • Dual Pixel CMOS AF with EOS iTR AF X
  • Various Protocols Supported
  • Flexible connectivity

Key Features

  • Capture stunning 4K UltraHD video with exceptional image quality for professional productions.
  • Enjoy flexible camera placement with advanced Pan/Tilt/Zoom capabilities and 15x optical zoom.
  • Streamline your workflow using versatile connectivity options including SDI, HDMI, and IP.
  • Benefit from reliable performance in various lighting conditions, ensuring clear visuals always.
  • Experience seamless integration with your existing setup, making this PTZ camera easy to use.
  • Achieve precise control and smooth movements, perfect for live events and studio environments.

What's in the box:

  • Canon CR-N700 13.4MP 4K Ultra HD 15x PTZ Camera (Titanium White)
  • Remote Controller
  • Celling Plate
  • Celling Plate Fixing Screw
  • Safety Wire
  • Camera-to-Mount Safety Wire
  • Battery for Remote Controller
  • Canon 3 Year Limited Warranty
