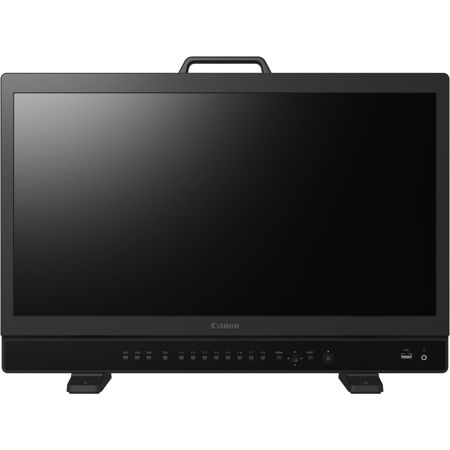

Canon DP-V2411 24" 4K IPS LED Reference Display, 4096x2160, HDMI and 4x 12G/6G/3G/HD/SD-SDI Input

SKU: CADPV2411 MFR: 2696C002
Earn VIP Reward Points

Key Features

  • Experience true color accuracy with this 24" Canon reference display for critical monitoring.
  • Achieve stunning clarity with the 4096x2160 4K resolution, perfect for detailed video work.
  • Enjoy versatile connectivity with HDMI and 12G/6G/3G/HD/SD-SDI inputs for seamless integration.
  • The IPS LED panel ensures wide viewing angles, maintaining image quality from any perspective.
  • Use this production monitor on set or in the studio, thanks to its robust build and portability.
  • Trust in the reliable performance with a Canon 1 Year Limited Warranty for peace of mind.
See More Product Details
Special Order?Estimated to Ship: 09/13/2025
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Canon DP-V2411 Specifications

Panel
  • Panel Type

    IPS LCD panel

  • Screen Size

    24"

  • Aspect Ratio

    17:9

  • Resolution

    4096 x 2160 (8.8 megapixels)

  • Active display area

    Approx. 21.2 x 11.2" (540.7 x 285.1mm)

  • Pixel Pitch

    132 mum/193 ppi

  • Panel Driver

    1024 Gradations (10 bits for each color)

Image Quality

Jump to...
  • Brightness

    Standard: 100 cd/m2
    Peak, Full screen white: 600 cd/m2 (When Boost On is selected: 1000 cd/m2)

  • Viewing Angle

    89deg. (contrast ratio 10:1 or higher) (Up, Down, Left, Right)

  • Surface Treatment

    Anti glare coating

Interface - Input

Jump to...
  • 12G/6G/3G/HD/SD-SDI

    4 (1 system) BNC (75 Ohms) Receptacle terminal
    12G-SDI: SMPTE 2082 compliant
    6G-SDI: SMPTE 2081 compliant
    3G-SDI: SMPTE 2048-2/274M/296/372/425-5/425-3/425-1/428-19/428-9 compliant
    HD-SDI: SMPTE 2048-2/274M/292-1/296/428-19/428-9 compliant
    SD-SDI: SMPTE 259M compliant

  • HDMI

    1x Type A Copy protection: HDCP 2.2

Interface - Output

Jump to...
  • 12G/6G/3G/HD-SDI

    4 (Pass-through)

  • Headphone

    1x Stereo mini-jack
    Supported impedance: 32-64 Ohms

Interface - Control

Jump to...
  • USB

    1x USB A receptacle terminal
    Universal Serial Bus Specification Revision 2.0 compliant LS (Low Speed) / FS (Full Speed) / HS (High Speed) mode compatible
    Enhanced Host Controller Interface Specification for Universal Serial Bus Revision
    1.0 compliant

  • LAN

    1x RJ-45 terminal
    IEEE8-2.3 10BASE-TX / IEEE802.3u 100BASE-TX compliant

  • Remote

    1x RJ-45 terminal, GPI 8 pin

General

Jump to...
  • Backlight Type

    LED, Matrix Array

  • Mounting Hole Pitch

    VESA standard 100 x 100mm (3.9 x 3.9")

  • Power

    Rated voltage: AC 100 - 240 V Rated frequency: 50/60 Hz
    DC 24 V max. 10 A, XLR terminal

  • Power Consumption

    At Maximum Load (including change in brightness through aging) : Approx. 230W
    At Factory Shipment: Approx. 130W

  • Environmental Conditions

    Operating
    Temperature and humidity: 0 to 40 deg.C (32 - 104 deg.F) (20 - 85 % RH no condensation) , recommended: 15 - 30 deg.C (59 - 86 deg.F)
    Pressure: 700 - 1060 hPa

    Storage / Transporting
    Temperature and humidity:
    -20 - 40 deg.C (-4 - 104 deg.F) (20 - 85 % RH no condensation)
    41 - 60 deg.C (105 - 140 deg.F) (20 - 30 % RH no condensation)
    Pressure: 700 - 1060 hPa

  • Dimensions (WxHxD)

    With Handle and stand: Approx. 22.68 x 17.20 x 7.09" (576.07 x 436.88 x 180.09mm)
    Display Unit Only, Without Protruding Parts: Approx. 22.68 x 15.24 x 4.13" (576.07 x 387.10 x 104.90mm)

  • Weight

    Approx. 26.4 lbs (11.97kg)

  • UPC Code

    13803302493

About Canon DP-V2411

Overwhelm your senses with the Canon DP-V2411 24" 4K Reference Display, a high-quality, reliable, and innovative tool for your professional video and photography needs. This stylish and durable display is designed to support you throughout the production and post-production process, whether you're on-set, in a mastering suite, or in a quality control setting.

Boasting a resolution of 4096x2160, this wide-viewing angle IPS Panel offers a DCI compliant 2000:1 contrast ratio and a 17:9 aspect ratio, meeting all cinema and television standards, including the Broadcast UHD standard ITU-R BT.2020. The Canon-designed LED backlight, coupled with a 10bit IPS panel, ensures a wide-viewing angle and improved on-set visibility thanks to its anti-glare coating.

The DP-V2411 is equipped with a specially developed image-processing engine that produces uniform brightness, providing you with a clear, detailed image. This display utilizes the same high image quality technology found in the DP-V3010 display and Canon's other Reference Displays, ensuring a consistent look throughout your entire workflow.

Supporting all Cinema EOS System gamma settings, including "Canon Log 3" and "Canon Log 3 (HDR)" gamma settings as well as "Hybrid Log-Gamma", the DP-V2411 can display high contrast and rich-mid tones of HDR (High Dynamic Range) content that are typically not visible to SDR (Standard Dynamic Range).

The DP-V2411 also offers a variety of input options, including HDMI and 4x 12G/6G/3G/HD/SD-SDI Input, allowing you to connect multiple devices and switch between them with ease. This makes it a versatile tool for monitoring and reviewing footage and images in a professional setting.

Weighing just 26.4 lbs. and featuring a built-in easy set-up transport handle, integrated control panel, and a solid metal frame, the DP-V2411 4K Reference Display offers high portability and multi-purpose use. Whether you're on-set for live "video village" monitoring, color grading, viewing dailies, or using it in post suites or mobile 4K UHD broadcast production-control rooms, this display is a reliable companion for your Canon equipment.

Experience the difference with the Canon DP-V2411 24" 4K Reference Display, a tool designed to enhance your professional video and photography workflow.

Canon DP-V2411 Features

  • True 4K panel (4096 x 2160)
  • Peak Luminance: 600 nits (boost function to 1000 nits) edge-to-edge with HDR variable range adjustment
  • Support for BT.2100 (PQ, HLG, HLG RGB), ACES2065-1 (ACES 1.0)
  • Support for BT.709, DCI-P3, BT.2020, Adobe sRGB and others
  • Support for ACESproxy, Canon Log 3, Log 2, Canon Log
  • Support for Arri Log-C, Log-C HDR, Panasonic VARICAM and other camera systems
  • Approximately 26.0 lbs
  • Can be operated via 12V battery (not included)
  • 12G-SDI and HDMI 2.0a input

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Experience true color accuracy with this 24" Canon reference display for critical monitoring.
  • Achieve stunning clarity with the 4096x2160 4K resolution, perfect for detailed video work.
  • Enjoy versatile connectivity with HDMI and 12G/6G/3G/HD/SD-SDI inputs for seamless integration.
  • The IPS LED panel ensures wide viewing angles, maintaining image quality from any perspective.
  • Use this production monitor on set or in the studio, thanks to its robust build and portability.
  • Trust in the reliable performance with a Canon 1 Year Limited Warranty for peace of mind.

What's in the box:

  • Canon DP-V2411 24 " 4K IPS LED Reference Display
  • AC Power Cord
  • AC Power Cord Clamp
  • Instructional Manual
  • Canon 1 Year Limited Warranty
