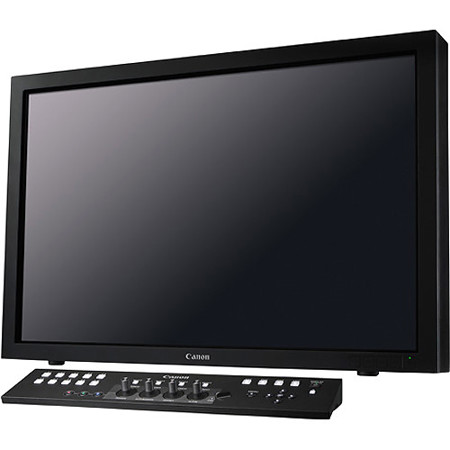

Canon DP-V3010 30" 4K IPS LED Reference Display, 4096x2560, 8x 3G/HD-SDI and 4x Display Port Input

SKU: CADPV3010 MFR: 6902B002
Earn VIP Reward Points

Key Features

  • Experience superior clarity with the Canon DP-V3010's 4K reference display.
  • Achieve true color accuracy on the 30" IPS LED panel for critical evaluation.
  • Enjoy versatile connectivity with 3G/HD-SDI and Display Port inputs on this monitor.
  • Ensure consistent image quality with a wide 89-degree viewing angle on the display.
  • This production monitor offers low-reflection glare, ideal for color grading suites.
  • The Canon DP-V3010's compact design fits seamlessly into any professional setup.
See More Product Details
Special Order?Estimated to Ship: 09/09/2025
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Canon DP-V3010 Specifications

Panel
  • Panel Type

    IPS LCD panel

  • Screen Size

    30"

  • Aspect Ratio

    16:10

  • Resolution

    4096 x 2560 (10.5 Megapixels)

  • Active display area

    Approx. 25.4 x 15.9" (645.1 x 403.2mm)

  • Pixel Pitch

    157.5 mum / 161 ppi

  • Panel Driver

    1024 gradations (10 bits for each RGB color)

Image Quality

Jump to...
  • Brightness

    Standard: 48 cd/m2 (DCI) , 100 cd / m2

  • Viewing Angle

    89deg. (contrast ratio 10:1 or higher) (Up, Down, Left, Right)

  • Surface Treatment

    Low-reflection glare

Interface - Input

Jump to...
  • 3G/HD-SDI

    8x (2 systems) BNC (75 Ohms)

  • Display Port

    4x (1 system, version 1.1a compliant)

Interface - Output

Jump to...
  • 3G/HD-SDI

    8x (2 pass-thru systems)

Interface - Control

Jump to...
  • USB

    1x USB receptacle terminal
    Universal Serial Bus Specification Revision 2.0 compliant HS (High Speed) mode compatible

  • LAN

    1x RJ-45 terminal IEEE802.3 10BASE-TX / IEEE802.3u 100BASE-TX compliant

General

Jump to...
  • Backlight Type

    RGB LED, direct down type

  • Mounting Hole Pitch

    VESA standard 200 x 200 mm (7.9 x 7.9")

  • Power

    Rated voltage: 100 - 240 V AC
    Rated Frequency: 50 / 60 Hz

  • Power Consumption

    At maximum load (including change in brightness through aging) : Approx. 370 W
    At factory shipment: Approx. 130 W

  • Environmental Conditions

    Operating
    Temperature and humidity: 5 to 35 deg.C (41 - 95 deg.F) (20 - 85 % RH no condensation) , recommended: 15 - 30 deg.C (59 - 86 deg.F)
    Pressure: 700 - 1060 hPa

    Storage / Transporting
    Temperature and humidity:
    -20 - 40 deg.C (-4 - 104 deg.F) (20 - 85 % RH no condensation)
    41 - 60 deg.C (105 - 140 deg.F) (20 - 30 % RH no condensation)
    Pressure: 700 - 1060 hPa

  • Dimensions (WxHxD)

    Approx. 27.9 x 18.7 x 7.4" (708.66 x 474.98 x 187.96mm)

  • Weight

    Approx. 52.8 lbs (23.95kg)

  • UPC Code

    013803161519

About Canon DP-V3010

The Canon DP-V3010 4K IPS LED Reference Display is a state-of-the-art, 30-inch monitor designed to deliver superior image quality for 4K digital cinema or 4K UHD program material. With its high dynamic range and wide DCI compliant color gamut, it provides an exacting evaluation of content, making it an essential tool for all stages of origination and post-production.

This 4K Reference Display boasts a resolution of 4096 (H) x 2560 (V) pixels, supported by a 10-bit panel and a powerful high bit depth image processing engine. This ensures outstanding picture sharpness and uniform brightness across the entire screen. The display's 16:10 aspect ratio and DCI compliant contrast ratio of 2000:1, coupled with an exceptionally wide viewing angle, make it ideal for collaborative creativity among multiple viewers.

The DP-V3010 4K Reference Display is designed for versatility. It is compatible with 4K Digital Cinema and 4K Ultra High Definition (UHD) Video Workflows, making it suitable for live 4K television productions. It can monitor live 4K motion imaging directly from camera systems or view digital 4K recorded playback from recorders. The display can accept inputs from two separate 4K sources via eight 3G-SDI interfaces, with monitoring outputs for each also included.

The DP-V3010 4K Reference Display excels in color reproduction. Its Canon-designed RGB LED backlight system and IPS LCD panel reproduce a rich array of colors. The color gamut encompasses the digital cinema DCI-P3 color gamut, almost all of Adobe RGB and Pointer's real world colors, as well as accurately reproducing the color gamuts of broadcast standards such as ITU-R BT.709, SMPTE-C, and EBU.

This 4K Reference Display also features a high bit depth image processing engine that ensures ultra-precise on-screen color uniformity and brightness. It also provides highly accurate 1024 tonal gradations for each color channel, resulting in smooth and accurate tonal reproduction.

The DP-V3010 4K Reference Display is not just about performance, it's also about convenience. With a depth of only 7.4 inches and equipped with carrying handles, it is easily transportable, making it perfect for use on location, in the studio, or in a post-production suite.

In conclusion, the Canon DP-V3010 4K IPS LED Reference Display is a high-performance, versatile, and convenient tool for professionals in the fields of image evaluation, editorial, color grading, computer-generated imaging (CGI), visual effects, and animation.

Canon DP-V3010 Features

  • True 4K panel (4096 x 2560)
  • Peak Luminance: 200 nits edge-to-edge with HDR variable range adjustment
  • Support for BT.2100 (PQ, HLG, HLG RGB), ACES2065-1 (ACES 1.0)
  • Support for BT.709, DCI-P3, BT.2020, Adobe sRGB and others
  • Support for ACESproxy, Canon Log 3, Log 2, Canon Log
  • Support for Arri Log-C, Log-C HDR, Panasonic VARICAM and other camera systems
  • 3G-SDI and DisplayPort (1.1a) input

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Experience superior clarity with the Canon DP-V3010's 4K reference display.
  • Achieve true color accuracy on the 30" IPS LED panel for critical evaluation.
  • Enjoy versatile connectivity with 3G/HD-SDI and Display Port inputs on this monitor.
  • Ensure consistent image quality with a wide 89-degree viewing angle on the display.
  • This production monitor offers low-reflection glare, ideal for color grading suites.
  • The Canon DP-V3010's compact design fits seamlessly into any professional setup.

What's in the box:

  • Canon DP-V3010 30 " 4K IPS LED Reference Display
  • Display Controller
  • AC Power Cord
  • Compact Power Adapter
  • AC Cable
  • Tip Prevention Fitting
  • LAN Cable
  • Rack Mount Bracket
  • Rack Mount Bracket Screw
  • Hex Key
  • Instruction Manual
  • Instruction Manual Disc
  • Canon 1 Year Limited Warranty
