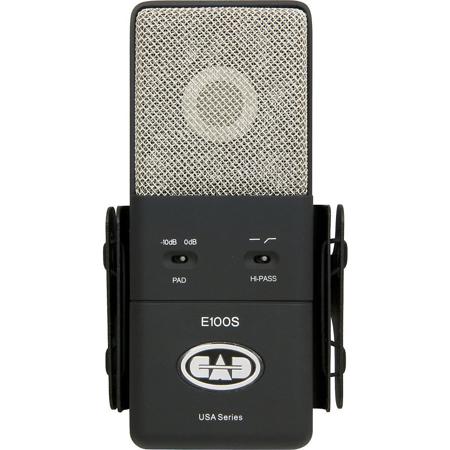

CAD Audio E100S Large Diaphragm Supercardioid Condenser Microphone, Lesser than 40Hz to 18kHz Frequency Response, 150Ohms Impedance

SKU: CAE100S

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

CAD Audio E100S Specifications

  • Operating Principle

    Condenser

  • Polar Pattern

    Supercardioid

  • Frequency Response

    < 40Hz - 18kHz

  • Sensitivity

    -30dBV / 28mV at 1Pa

  • Impedance

    150Ohms

  • Max SPL

    150dB (Pad Engaged)

  • Self Noise

    3.7dBA (best in class)

  • Hi-Pass

    80Hz

  • Attenuator

    10dB

  • Power requirements

    48V Phantom power

  • UPC Code

    631922104394

About CAD Audio E100S

The CAD Audio E100S Large Diaphragm Supercardioid Condenser Microphone has the lowest noise floor in its class (3.7 dBA) and the smooth, vintage tone and robust low end CAD is known for. The bootstrapped, full differential Quadra-FET front end delivers high sensitivity and low distortion, plus CAD's proprietary circuitry ensures the highest performance.

The nickel plated 1 inch capsule delivers accurate phasing on instruments and a full rich vocal tone, accentuated by the extended low frequency response. Features include an 80Hz hi-pass filter and a 10dB pad. From vocals to percussion, acoustic instruments and everything in between, it will prove to be one of the most versatile tools. Vintage wood grain cherry case and stealth shock mount included. 48V Phantom power is required.

Applications
Studio Vocals, Choir, Acoustic Instrument, Guitar Cabinets, Bass Cabinets, Strings, Piano, Cymbals/Overheads.

What's in the box:

  • CAD Audio E100S Large Diaphragm Supercardioid Condenser Microphone
  • Vintage Wood Grain Cherry Case
  • Stealth Shock Mount
  • CAD Audio 1 Year Limited Warranty
