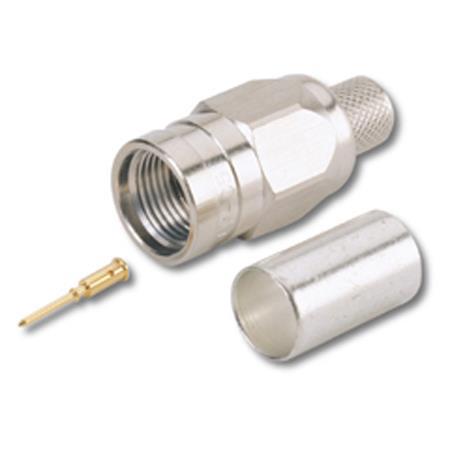

Canare 75 Ohm F Crimp Plug, Straight, for LV61S Cable
See all Canare items

Canare 75 Ohm F Crimp Plug, Straight, for LV61S Cable

SKU: CAFPC4

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Canare F Crimp Plug Specifications

  • Cable

    LV-61S

  • Boot

    CB25

  • Crimp Die

    TCD-451CA / TCD-4C

  • Crimp Pin

    BN1003B

  • Sleeve

    BN7015A

  • Impedance

    75 ohm

  • Return Loss

    >26 dB (DC to 2GHz)

  • Voltage Rating

    500 VAC (rms)

  • Insulation Resistance

    >500 Mohms (at 500VDC)

  • Cable Retention

    >55 lbs (>24.9kg)

  • Connector Finish

    Nickel-plated

  • Center Contact Plating

    Gold-plated

  • Dielectric Material

    PTFE

  • Bandwidth VSWR

    <1.1

  • Body/Center Contact Material

    Brass

About Canare F Crimp Plug

Canare F Crimp Plug Features

  • True 75 ohms construction crimp pin and sleeve
  • Use with solid or stranded center 75 ohms coax
  • Elongated body for better finger grip
  • Superior cable pull strength
  • Gold plated center pins snap lock in place
  • Easy assembly using Canare strip and crimp tools
  • Lock mechanism improves reliability by preventing shifting or detaching of the center pin
  • VSWR of 1.1 or less up to 2GHz
  • Compatible with broadcast satellite (BS) and communications satellite (CS) signals
  • Designed for indoor use
  • Applicable for digital broadband, satellite system, RF equipment, cable modems, satellite headends, telcom
