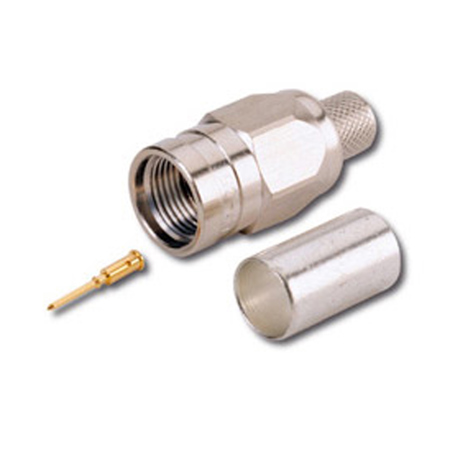

Canare FP-C4F 75 Ohms F Crimp Straight Plug Connector
See all Canare items

Canare FP-C4F 75 Ohms F Crimp Straight Plug Connector for L-4CFB/LS-4CFB/V-4CFB/Belden1505A/8212/8241F/9167/9259/9659 Cable

SKU: CAFPC4F
Be the first to review this item

This item is no longer available.

Recommended Alternatives

undefined undefined: Picture 1 regular
Canare BCP-D55UHD 75 Ohms 12G-SDI 4K UHD Crimp Plug BNC Connector for L-5.5CUHD
$4.71
undefined undefined: Picture 1 regular
Canare Connector Unit for MCF-V5C3
$10.58
undefined undefined: Picture 1 regular
Canare FJ-JR 75 Ohms F Jack to F Jack Bulkhead Panel Mount Receptacles
$10.95
undefined undefined: Picture 1 regular
Canare 75 Ohm Multichannel 4K-DIN Coax Connector, Male
$79.70
$75.95
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Canare FP-C4F Specifications

  • Compatibility

    L-4CFB/LS-4CFB/V-4CFB/Belden1505A/8212/8241F/9167/9259/9659 Cable

  • Parts

    Body
    Crimp Pin
    Crimp Sleeve

  • Impedance

    75 Ohms

  • Connector Finish

    Nickel-plated

  • Bandwidth VSWR

    <1.1

  • Return Loss

    >26 dB (DC to 2GHz)

  • Body/Center Contact Material

    Brass

  • Center Contact Plating

    Gold-plated

  • Dielectric Material

    PTFE

  • Cable Retention

    >55 lbs (>24.9kg)

  • Insulation Resistance

    >500 MOhms (at 500Vdc)

  • Voltage Rating

    500 VAC (rms)

  • Center Contact Resistance

    <5m Ohms

  • Outer Contact Resistance

    <5m Ohms

About Canare FP-C4F

The Canare FP-C4F 75 Ohms F Crimp Straight Plug Connector is designed with construction Crimp Pin and Sleeve and it has DC to 2.0 GHz >26dB Return Loss (<1.1 VSWR) also use with Solid or Stranded Center 75 ohm Coax . The Elongated body for better finger grip and Superior cable pull strength. Gold plated center pins 'snap lock' in place also it is easy Assembly using Canare Strip and Crimp Tools.
