CAD Audio GXLD2BB Digital Dual-Channel Wireless Dual Bodypack Microphone System, AI: 909.3 to 926.8 MHz

SKU: CAGXLD2BBAI

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

CAD Audio GXLD2BB Digital Dual-Ch Wireless Dual Bodypack Microphone System, AI Specifications

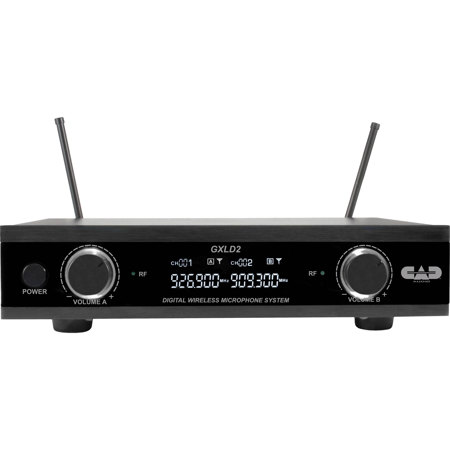

Receiver

Receiver

Jump to...
  • Type

    Dual-channel wireless receiver

  • Frequency Band

    AI: 909.3 to 926.8 MHz

  • Output Level

    +10 dBv, maximum

  • Frequency Response

    20 Hz to 20 kHz

  • Antennas

    2x antennas with dipole antenna technology

  • Output Connectors

    2x XLR, male, balanced
    1x 1/4" / 6.3 mm, female, unbalanced (mono mix)

  • Controls

    2x volume control knobs

  • Indicators

    2x RF indicator lights

  • Display

    LCD display

Bodypack Transmitter

Jump to...
  • Connector

    TB4M

  • Frequency Response

    20 Hz to 20 kHz

  • Input Level

    Microphone Input: 1.5 Vrms (5 Vpp), maximum
    Instrument Input: 1.5 Vrms (5 Vpp), maximum

  • RF Output

    10 mW

  • Modulation

    High-definition digital QPSK

  • Switches

    Power on/off switch
    Mute on/off switch

  • Indicators

    LED indicator light

  • Power Requirements

    2x AA alkaline or rechargeable batteries

  • Battery Life

    >10 hours (alkaline)

Microphone

Jump to...
  • Type

    Headworn, condenser mic

  • Polar Pattern

    Hypercardioid

  • Connector

    TA4F

  • Connector 1

    1/4" / 6.3 mm TS jack, male

  • Connector 2

    TA4F

  • UPC Code

    631922108453

About CAD Audio GXLD2BB Digital Dual-Ch Wireless Dual Bodypack Microphone System, AI

Enjoy the easy and exciting performance that the GXLD2 Wireless Series provides for your next performance. CAD Audio has been creating valued product since 1931 and prides itself on developing and supporting the live performer. Our concept was straight forward. Develop a high value wireless microphone system that can cope with today's challenging RF environment that is both easy to operate and exciting to use.

CAD Audio GXLD2BB Digital Dual-Ch Wireless Dual Bodypack Microphone System, AI Features

  • Digital Dual Channel Wireless System
  • Two discrete channels of wireless packaged in one receiver chassis
  • Digital High Definition Audio
  • High Contrast LCD Display
  • Operates in 900 Mhz band free from TV and FCC regulatory issues
  • Advanced dipole antenna technology for increased operating distance
  • Multiple output options on the receiver for maximum flexibility
  • Professional balanced XLRM-type discrete output
  • 1/4" unbalanced output for easy connection to 1/4" input
  • Handheld transmitters feature the CADLive D38 capsule
  • Bodypack systems include Condenser Headworn Microphone and Guitar Cable
  • All transmitters outfitted with on/off, Mute function for easy use
  • All transmitters feature low battery indicators
  • AA Battery Life of >10Hrs of operation

Key Features

  • Digital Dual Channel Wireless System
  • Two discrete channels of wireless packaged in one receiver chassis
  • Digital High Definition Audio
  • High Contrast LCD Display
  • Operates in 900 Mhz band free from TV and FCC regulatory issues
  • Advanced dipole antenna technology for increased operating distance

What's in the box:

  • RXGXLD2 Dual Receiver
  • 2x TXBGXLD Bodypack Transmitters
  • 2x StagePass WXHW Headworn Microphone
  • 2x WXGTR Guitar Cables
  • AC Adapter
  • CAD Audio 2 Year Limited Warranty
