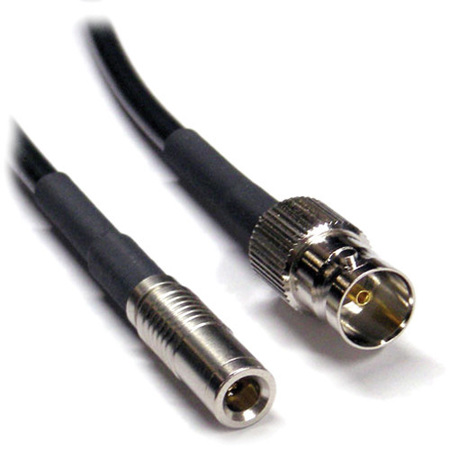

Canare 1.5' L-2.5CHD 3G HD/SDI Cable with 1.0/2.3 DIN to BNC Female Connector
See all Canare items

Canare 1.5' L-2.5CHD 3G HD/SDI Cable with 1.0/2.3 DIN to BNC Female Connector

SKU: CAL25CHDBF18
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Canare : Picture 1 regular
Canare L-3CFW RG59 HD-SDI Coaxial Cable with Male BNC Connectors, Black
$59.95
Canare L-2.5CHD: Picture 1 regular
Canare L-2.5CHD 5' 75Ohms Super Low Loss Digital Video Coaxial Cable, 23AWG
$18.46
Canare L-3.3CUHD: Picture 1 regular
Canare L-3.3CUHD 100' 12G-SDI 4K UHD Low Loss Digital Video Coaxial Cable, 21AWG
$72.92
Canare L-5.5CUHD: Picture 1 regular
Canare L-5.5CUHD 33' 12G-SDI 4K UHD Low Loss Digital Video Coaxial Cable, 16AWG
$49.84
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Canare 1.5' L-2.5CHD 3G HD/SDI Cable with 1.0/2.3 DIN to BNC Female Connector Specifications

  • Connector Type

    1.0/2.3 DIN to BNC Male Connectors

  • Cable Length

    1.5' (0.46m)

  • Impedance

    75 +/- 3 ohms

  • Composition

    Inner Conductor: 1/0.59 A quantity/mm, 23 AWG

  • Shield Coverage

    Outer Conductors 95% or more: 0.12TA mm, 7 ends, 16 carriers

  • Conductor Resistance

    Inner: 39.95 ohms/mile (64.3 ohms/km)
    Outer: 10.5 ohms/mile (16.9 ohms/km)

  • Static Capacity

    53 nf/km at 1 kHz

  • Attenuation

    30.2 dB / 328' (99.98m) at 750 MHz

  • Cable O.D.

    Nominal: 0.16" (4.06mm)
    Insulation: 0.1" (2.54mm)
    Inner Conductor: 0.02" (0.51mm)

  • Maximum Transmission Distance

    314m (1030.17') at 143 Mbps (SMPTE 259M, Composite NTSC)
    287m (941.59') at 177 Mbps (ITU-R BT. 601, Composite PAL)
    237m (777.55') at 270 Mbps (SMPTE 259M, Component 4:2:2)
    206m (675.84') at 360 Mbps (SMPTE 259M, Component 4:2:2, 16x9)
    168m (551.17') at 540 Mbps (SMPTE 344M, SDI)
    66m (216.53') at 1.5 Gbps (SMPTE 292M, HD-SDI)
    46m (150.92') at 3 Gbps (SMPTE 424M, HD 1080p)

  • Nominal Attenuation

    4.1 dB / 328' (99.98m) at 10 MHz
    6.5 dB / 328' (99.98m) at 30 MHz
    9.5 dB / 328' (99.98m) at 72.0 MHz (SMPTE 259M, Composite NTSC)
    10.4 dB / 328' (99.98m) at 88.0 MHz (ITU-R BT. 601, Composite PAL)
    12.6 dB / 328' (99.98m) at 135 MHz (SMPTE 259M, Component 4:2:2)
    14.5 dB / 328' (99.98m) at 180 MHz (SMPTE 259M, Component 4:2:2 16x9)
    17.8 dB / 328' (99.98m) at 270 MHz (SMPTE 344M, 540 Mbps SDI)

  • Nominal Attenuation (Cont.)

    22.9 dB / 328' (99.98m) at 440 MHz
    30.2 dB / 328' (99.98m) at 750 MHz (SMPTE 292M, HD-SDI)
    40 dB / 328' (99.98m) at 1.3 GHz
    43.1 dB / 328' (99.98m) at 1.5 GHz (SMPTE 424M, HD 1080p)
    55.1 dB / 328' (99.98m) at 2.4 GHz
    62 dB / 328' (99.98m) at 3 GHz

About Canare 1.5' L-2.5CHD 3G HD/SDI Cable with 1.0/2.3 DIN to BNC Female Connector

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Canare 1.5' L-2.5CHD 3G HD/SDI Cable with 1.0/2.3 DIN to BNC Female Connectors
  • Canare 1 Year Limited Warranty
