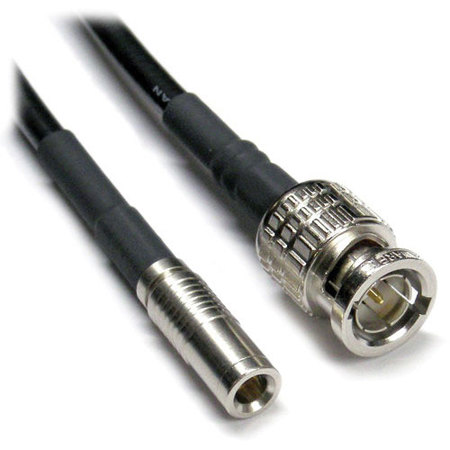

Canare L-3CFB 100m 75Ohms Digital Video Coaxial Cable, Red

SKU: CAL3CFB100MR MFR: L-3CFB 100METERR
$84.92
Earn VIP Reward Points

Key Features

  • Experience superior signal quality with this 75 Ohm coaxial cable, perfect for HD video.
  • Ensure reliable data transmission; supports 650' to 830' at 270 Mbps for serial digital.
  • This 100m Canare L-3CFB coaxial cable is ideal for professional video and broadcast setups.
  • Enjoy broad compatibility; use this coaxial cable with BNC, F, and RCA connectors easily.
  • Built to last: Durable PVC jacket protects against wear, ensuring long-term coaxial use.
  • Minimize signal loss; this shielded coaxial cable boasts excellent attenuation performance.
See More Product Details
Special Order?Estimated to Ship: 08/14/2025
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$6.99

2 Year

$13.99

3 Year

$20.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Canare L-3CFB 100m 75Ohms Digital Video Coaxial Cable, Red Specifications

  • Cable Length

    100m (328.08')

  • Nominal Outer Diameter

    5.5mm (0.22")

  • PVC Jacket Thickness

    0.9mm (0.04")

  • Brittle Point

    -22 deg. F (-30 deg. C)

  • Conductor Material AWG

    Bare Copper #22

  • Conductor Outer Diameter

    0.65mm (0.03")

  • Insulation Outer Diameter

    3.1mm (0.12")

  • Dielectric Insulation Type

    Foam PE

  • Shield Material Coverage

    AL Foil 100%
    TAC Braid >91%

  • Conductor D.C.R.

    <16.8Ohms / 1000' (<5.5Ohms / 100m)

  • Shield D.C.R

    <4.3Ohms / 1000' (<1.4Ohms / 100m)

  • Nominal Capacitance at 1 kHz

    17 pF/ft (55 pF/m)

  • Nominal Impedance

    75Ohms

  • Velocity of Propagation

    0.79

  • Serial Digital Transmission Lengths

    650' minimum, 830' maximum at 270 Mbps

  • Nominal Attenuation

    At 10MHz dB 1.0 (3.2)
    At 50MHz dB 2.5 (8.0)
    At 135MHz dB 3.7 (12.3)
    At 270MHz dB 5.2 (17.2)
    At 360MHz dB 6.1 (20.0)
    At 720MHz dB 8.9 (29.1)
    At 1GHz dB 10.6 (34.7)
    At 1.45GHz dB 13.0 (42.6)
    At 1.8GHz dB 14.7 (48.3)
    At 2GHz dB 15.6 (51.2)

  • Connectors

    BNC: BCP-B3F
    F: FP-C3F
    RCA: RCAP-C3F

  • Cable Stripper

    TS-100E
    TS-3C

  • Crimp Tool

    TC-1

  • Die Set

    TCD-35CA

  • Weight

    4kg (8.82 lbs)

About Canare L-3CFB 100m 75Ohms Digital Video Coaxial Cable, Red

Experience the superior quality of the Canare L-3CFB 100m 75Ohms Digital Video Coaxial Cable in vibrant red. This precision-engineered cable is designed to meet the high-performance needs of professional broadcasters and videographers.

The Canare L-3CFB is a 100% sweep tested digital video cable, ensuring optimal performance and reliability. Its low loss coaxial design is tailored to meet the evolving demands of modern broadcasting facilities, making it an ideal choice for Serial Digital Video and High Definition Television (HDTV) standards.

Crafted with precision, this 75Ohms digital video coaxial cable offers a high-performance solution at a cost-effective price. Its robust construction ensures durability, while its vibrant red color adds a touch of professionalism to your setup.

Whether you're broadcasting live events, recording in a studio, or setting up a home theater system, the Canare L-3CFB 100m 75Ohms Digital Video Coaxial Cable delivers the reliable, high-quality connection you need. Experience the difference in your digital video transmission with this top-tier coaxial cable.

Canare L-3CFB 100m 75Ohms Digital Video Coaxial Cable, Red Features

  • HD-Serial Digital Video
  • Satellite Head Ends
  • HDTV Upgrades
  • Broadband Facilities
  • SMPTE 259M, 292M, 424M
  • Solid Copper Center Conductor
  • Foam PE Dielectric
  • Tinned Copper Braid + 100% Foil Shield
  • Dielectric strips away clean from Conductor
  • Precision Coax 100% Sweep Tested

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Experience superior signal quality with this 75 Ohm coaxial cable, perfect for HD video.
  • Ensure reliable data transmission; supports 650' to 830' at 270 Mbps for serial digital.
  • This 100m Canare L-3CFB coaxial cable is ideal for professional video and broadcast setups.
  • Enjoy broad compatibility; use this coaxial cable with BNC, F, and RCA connectors easily.
  • Built to last: Durable PVC jacket protects against wear, ensuring long-term coaxial use.
  • Minimize signal loss; this shielded coaxial cable boasts excellent attenuation performance.

What's in the box:

  • Canare L-3CFB 100m 75Ohms Digital Video Coaxial Cable
  • Canare 1 Year Limited Warranty
