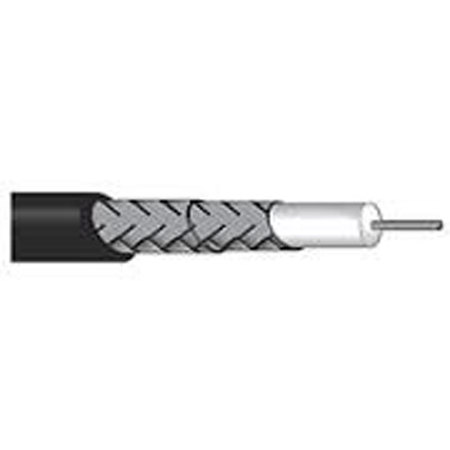

Canare L-4.5CHWS 100m 75 Ohms Low Loss Coaxial Cable for Mobile HD Application, Black

SKU: CAL45S100MBK MFR: L-4.5CHWS 100METERBK
Earn VIP Reward Points

Key Features

  • Ensure optimal signal quality with this low loss 75 Ohms coaxial cable.
  • Perfect for mobile HD applications, this coaxial cable is 100 meters long.
  • Experience minimal signal attenuation with our high-performance data cable.
  • Durable shielding protects your video signals from interference with this cable.
  • This unterminated coaxial cable offers flexibility for custom installations.
  • Get superior conductivity with this Canare coaxial cable, designed for HD clarity.
See More Product Details
Special Order?Estimated to Ship: 10/15/2025
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Canare L-4.5CHWS 100m 75 Ohms Low Loss Coaxial Cable, Black Specifications

  • Cable Length

    100' (30.48m)

  • Nominal Outer Diameter

    0.280" (7.11mm)

  • Inner Conductor Component

    18 AWG, 7/0.34A (Q'ty/mm)

  • Inner Conductor Outer Diameter

    0.04" (1.02mm)

  • Insulation Outer Diameter

    0.17" (4.32mm)

  • Outer Conductors Shield Coverage & Comp.

    0.10A/8/24 (93% or more)
    0.10A/9/24 (95% or more)

  • Inner Conductor Resistance

    39.95 (32.70) Ohms/mile (Ohms/km)

  • Outer Conductor Resistance

    10.88 (16.9) Ohms/mile (Ohms/km)

  • Static Capacity

    53 pF/m

  • Characteristic Impendence

    75 Ohms

  • Attenuation

    22.8 dB/100m (328ft) (750MHz)

  • Weight

    14.55 lbs (6.60kg)

About Canare L-4.5CHWS 100m 75 Ohms Low Loss Coaxial Cable, Black

How does the L-4.5CHWS 100m 75 Ohms Low Loss Coaxial Cable for Mobile HD Application, Black stand out This high-quality, durable coaxial cable is specifically designed for mobile HD applications, ensuring reliable and strong transmission of high-definition video and audio signals. Crafted by the reputable brand Canare, this cable is known for its superior performance and longevity.

The cable's flexibility is a standout feature, making it best suited for applications that require repeated bending without compromising on its performance. Its sturdy construction features a stranded center conductor, which enhances its durability and reliability.

The L-4.5CHWS 100m 75 Ohms Low Loss Coaxial Cable is also equipped with a high-density double-braided shield. This feature ensures minimal signal loss and interference, providing you with clear and crisp audio and video output.

Additionally, the cable boasts highly-foamed insulation, further enhancing its performance by reducing signal loss and maintaining signal integrity even over longer distances. With a generous length of 328 feet, this cable is ideal for longer distance installations, setting it apart from many alternative cables on the market.

In summary, the L-4.5CHWS 100m 75 Ohms Low Loss Coaxial Cable for Mobile HD Application, Black is a durable, high-quality, and reliable choice for transmitting high-definition signals, offering superior performance and flexibility.

Canare L-4.5CHWS 100m 75 Ohms Low Loss Coaxial Cable, Black Features

  • High-quality, durable 75 Ohms Low Loss Coaxial Cable for reliable HD signal transmission
  • Designed by reputable brand Canare, known for superior audio and video cables
  • Flexible design withstands repeated bending, perfect for mobile HD applications
  • Features a stranded center conductor & high-density double-braided shield for minimal signal loss
  • Highly-foamed insulation maintains signal integrity over longer distances
  • Generous 328 feet length ideal for extended distance installations

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Ensure optimal signal quality with this low loss 75 Ohms coaxial cable.
  • Perfect for mobile HD applications, this coaxial cable is 100 meters long.
  • Experience minimal signal attenuation with our high-performance data cable.
  • Durable shielding protects your video signals from interference with this cable.
  • This unterminated coaxial cable offers flexibility for custom installations.
  • Get superior conductivity with this Canare coaxial cable, designed for HD clarity.

What's in the box:

  • Canare L-4.5CHWS 100m 75 Ohms Low Loss Coaxial Cable for Mobile HD Application
  • Canare 1 Year Limited Warranty
