Canare Multichannel Star Quad Microphone Cable, 16 Channel, 100m

SKU: CAL4E316P1M MFR: L-4E3-16P 100M
Earn VIP Reward Points

Key Features

  • Experience superior audio clarity with this 16-channel Canare microphone cable.
  • Ensure optimal signal quality with our Star Quad cable design, reducing noise.
  • This durable, shielded audio cable is perfect for professional recording setups.
  • Get reliable performance with a 100-meter bulk audio cable for custom installations.
  • Minimize interference; the braided shield provides excellent noise reduction.
  • Enjoy flexible use with a stranded conductor, ideal for complex wiring projects.
See More Product Details
Special Order?Estimated to Ship: 08/16/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Canare Multichannel Star Quad Microphone Cable, 16 Channel, 100m Specifications

  • No. of Channels

    16 (pairs)

  • Outer Diameter

    Channel: 0.13" (3.4 mm)

  • Dielectric Strength

    500 VAC / min

  • Conductor

    AWG (AC): 28 (7/4.72 quantity/mm)
    Quad: 25 AWG
    Cross Sectional Area: 124 mm square
    Channel Drain Wire (Bundle Drain Wire): 20 AWG

  • Pitch Twist Quad

    <0.63" (<16 mm)

  • Shield Coverage

    >93% AC Braid

  • Number of Conductors

    64 (4 per channel)

  • Nominal

    O.D: 0.74" (18.8 mm)

  • Material

    Jacket: PVC
    Insulation: IPE

  • Thickness

    Nominal: 0.047" (1.2 mm)
    Insulation: 0.42" (10.6 mm)

  • Brittle Point

    -22 Degree F (-30 Degree C)

  • Conductor D.C.R.

    <75.8 ohm/1000' (<24.9 ohm/100 m)

  • Shield D.C.R

    <10.3 ohm/1000' (<3.4 ohm/100 m)

  • Nominal Capacitance

    Capacitance between Conductors: 44 pF/ft (145 pF/m)
    Capacitance between Conductors to Shield: 52 pF/ft (170 pF/m)

  • Nominal Impedance

    43 ohm

  • Nominal Attenuation

    1.8 V/1000' (0.6 V/100 m)

  • Group Delay Time

    1.8 ns/ft (5.8 ns/m)

  • Input

    X-Talk: <3 mV/1000' (<1 mV/100 m) @ 3.31 V

  • Length

    328' (100 m)

  • Weight

    101 lb (46 kg)

About Canare Multichannel Star Quad Microphone Cable, 16 Channel, 100m

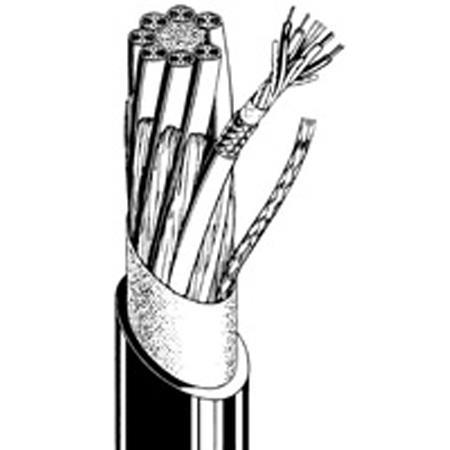

The Canare L-4E3-16P 100M 16-Channel Star Quad Microphone Cable (328' / 100 m) is a 25 AWG Star Quad snake cable with braided shields. Each channel is completely isolated and consists of 4 conductors surrounded by an overall braided shield encased in a color coded striped PVC jacket. The 4-conductor style construction minimizes the loop area between twists of the conductors. This double balanced pairing reduces susceptibility to electromagnetically induced noise.
Fine conductor stranding for flexibility facilitates roll up and easy payout. Large numbers of thin wire strands are used in the copper conductors and overall braided shield. A special compound PVC outer jacket is extruded that remains pliant at extremely low temperatures with no wait between cold shipping and installation. The 4-conductor design provides superior EMI and RFI noise rejection in problem areas on the stage.
This Star Quad cable is designed for use with microphones but is also excellent for all line-level signals (e.g. mixer to power amps). The 4-conductor arrangement cancels electromagnetically induced noise from SCR dimmer packs, fluorescent lighting ballasts, and AC power transformers. Handling noise is prevented by use of cotton filler material. Good frequency response is maintained due to special irradiated polyethylene insulation which acts as a low capacitance dielectric.
Good crosstalk characteristics allow different signals (-120 dB mic, 4 dB line, 10 dB code levels) to be used in adjacent channels.

Canare Multichannel Star Quad Microphone Cable, 16 Channel, 100m Features

  • Multiple Audio Lines, Multiple Channels
  • Portable Applications
  • Audio Rack Wiring
  • PA Systems
  • Braided Copper Shield
  • Flexible in Extreme Cold Weather
  • Cross Linked PE Insulation
  • Rejects EMI and RFI

Warranty Information

This product has a limited warranty of 12 months.
