Canare Multichannel Star Quad Microphone Cable, 4 Channel, 200m

SKU: CAL4E34P2M MFR: L-4E3-4P 200M
Earn VIP Reward Points

Key Features

  • Experience superior audio clarity with this Canare multi-channel microphone cable.
  • Get pristine sound quality with our star quad cable design, minimizing noise interference.
  • This durable 200m bulk audio cable is perfect for professional studio or stage setups.
  • Enjoy exceptional signal clarity, thanks to the high-quality shielded microphone cable.
  • Easily manage your audio connections with this 4-channel snake cable for streamlined setups.
  • Invest in long-lasting performance with this robust Canare cable, built for demanding use.
See More Product Details
Special Order?Estimated to Ship: 08/16/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$179.99

3 Year

$249.99

5 Year

$489.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Canare Multichannel Star Quad Microphone Cable, 4 Channel, 200m Specifications

  • No. of Channels

    4 (pairs)

  • Outer Diameter

    Channel: 0.13" (3.4 mm)

  • Dielectric Strength

    500 VAC / min

  • Conductor

    AWG (AC): 28 (7/4.72 quantity/mm)
    Quad: 25 AWG
    Cross Sectional Area: 124 mm square
    Channel Drain Wire (Bundle Drain Wire): 20 AWG

  • Pitch Twist Quad

    <0.63" (<16 mm)

  • Shield Coverage

    >93% AC Braid

  • Number of Conductors

    16 (4 per channel)

  • Nominal

    O.D: 0.43" (10.92 mm)

  • Material

    Jacket: PVC
    Insulation: IPE

  • Thickness

    Nominal: 0.043" (1.1 mm)
    Insulation: 0.42" (10.6 mm)

  • Brittle Point

    -22 Degree F (-30 Degree C)

  • Conductor D.C.R.

    <75.8 ohm/1000' (<24.9 ohm/100 m)

  • Shield D.C.R

    <10.3 ohm/1000' (<3.4 ohm/100 m)

  • Nominal Capacitance

    Capacitance between Conductors: 44 pF/ft (145 pF/m)
    Capacitance between Conductors to Shield: 52 pF/ft (170 pF/m)

  • Nominal Impedance

    43 ohm

  • Nominal Attenuation

    1.8 V/1000' (0.6 V/100 m)

  • Group Delay Time

    1.8 ns/ft (5.8 ns/m)

  • Input

    X-Talk: <3 mV/1000' (<1 mV/100 m) @ 3.31 V

  • Length

    656' (200 m)

  • Weight

    57 lb (26 kg)

About Canare Multichannel Star Quad Microphone Cable, 4 Channel, 200m

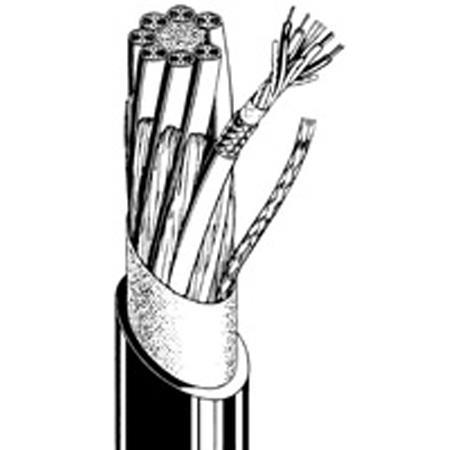

Discover the Canare L-4E3-4P 200M 4-Channel Star Quad Microphone Cable, a high-quality, durable, and reliable audio solution for your recording or live performance needs. This 656-foot (200-meter) microphone cable is expertly crafted with a 25 AWG Star Quad snake design, featuring braided shields for each channel.

Each channel is fully isolated, comprising four conductors encased in a color-coded striped PVC jacket. The unique 4-conductor design minimizes the loop area between twists, reducing susceptibility to electromagnetically induced noise for a clearer, more precise sound.

This versatile cable is not only designed for microphones but is also excellent for all line-level signals, such as connecting a mixer to power amps. Its superior EMI and RFI noise rejection capabilities make it an ideal choice for use in problem areas on stage, effectively cancelling out noise from SCR dimmer packs, fluorescent lighting ballasts, and AC power transformers.

The Canare L-4E3-4P 200M 4-Channel Star Quad Microphone Cable is designed with flexibility in mind. Its fine conductor stranding allows for easy roll-up and payout, while its special compound PVC outer jacket remains pliant even at extremely low temperatures, ensuring no delay between cold shipping and installation.

The cable's excellent crosstalk characteristics allow for different signals (-120 dB mic, 4 dB line, 10 dB code levels) to be used in adjacent channels without interference. This is further enhanced by the use of cotton filler material to prevent handling noise, and special irradiated polyethylene insulation that maintains good frequency response by acting as a low capacitance dielectric.

Experience the difference in sound quality and performance with the Canare L-4E3-4P 200M 4-Channel Star Quad Microphone Cable, a reliable choice for professionals seeking a versatile, high-quality audio solution.

Canare Multichannel Star Quad Microphone Cable, 4 Channel, 200m Features

  • Multiple Audio Lines, Multiple Channels
  • Portable Applications
  • Audio Rack Wiring
  • PA Systems
  • Braided Copper Shield
  • Flexible in Extreme Cold Weather
  • Cross Linked PE Insulation
  • Rejects EMI and RFI

Warranty Information

This product has a limited warranty of 12 months.
