Canare 16 Channel 22 AWG Star Quad Microphone Cable, 100m

SKU: CAL4E416AT1M MFR: L-4E4-16AT 100M
Earn VIP Reward Points

Key Features

  • Get pristine audio with this 16-channel Canare microphone cable, perfect for studio recording.
  • Ensure durability and flexibility with our 22 AWG star quad audio cable, designed for longevity.
  • Experience low noise and high signal quality with this shielded bulk audio cable, 100 meters long.
  • Ideal for professional setups, this multi-channel snake cable minimizes interference, ensuring clarity.
  • Craft reliable connections using our Canare cable, featuring robust construction and excellent shielding.
  • Customize your setup with this flexible microphone cable, offering superior performance at a great price.
See More Product Details
Special Order?Estimated to Ship: 08/18/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$179.99

3 Year

$249.99

5 Year

$489.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Canare 16 Channel 22 AWG Star Quad Microphone Cable, 100m Specifications

  • Nominal Outer Diameter

    21 mm (0.827")

  • Color

    Gray

  • Conductor Size (AWG)

    22

  • Jacket Type

    PVC

  • Shielded

    Yes

  • Brittle Point

    -22 Degree F (-30 Degree C)

  • PVC Jacket Thickness

    0.059" (1.5 mm)

  • Channel Outer Diameter

    146 in (3.7 mm)

  • Number of Conductors (4 Per Channel)

    64

  • Channel Jacket Nominal Thickness

    PVC 11.8 mil

  • Insulation Type Thickness

    IPE 12.6 mil

  • Number of Quad Channels

    16

  • Conductor-Cross Section Area

    (16/4.73) 279 Quantity/Mil

  • Shield Coverage

    AL Foil >100% 23 AWG) (16 AWG Bundle Drain Wire)

  • Pitch Twist Quad

    <0.83 in (<21 mm)

  • Conductor D.C.R.

    <32.9 Ohms/1000ft (<10.8 Ohms/100m)

  • Nominal Capacitance (b/n Conductors)

    50 pf/ft (164 pF/m)

  • Nominal Capacitance (b/n Cond. & Shield)

    68 pf/ft (222pF/m)

  • Cable Length

    100 m (328 ft)

  • Weight

    53 kg (117 lbs)

About Canare 16 Channel 22 AWG Star Quad Microphone Cable, 100m

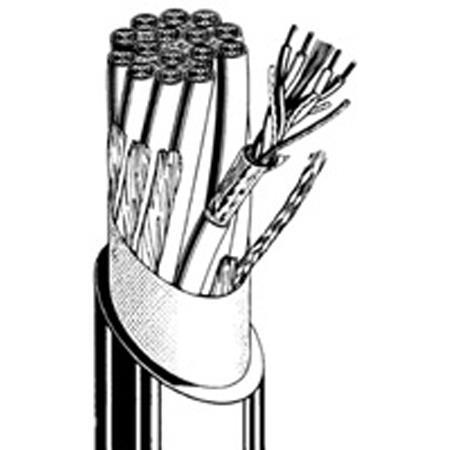

Enhance your audio setup with the 16 Channel 22 AWG Star Quad Microphone Cable, a 100-meter long, high-quality audio cable designed for all fixed audio installations. This Canare Star Quad multichannel snake cable is 100% foil shielded, ensuring optimal signal integrity and reducing interference for crystal clear sound transmission.

Each of the 16 channels in this cable features four conductors, providing superior isolation to prevent cross-talk and ensure high-quality audio output. The conductors are reinforced with Kevlar 29, a material known for its exceptional tensile strength, making the cable highly resistant to pulling and stretching. This durability makes it an ideal choice for professional audio setups where reliability and longevity are paramount.

The cable also boasts an individual foil shield and drain wire for each channel, further enhancing its ability to deliver clean, interference-free audio. The color-coded striped PVC jacket not only offers additional protection to the cable but also simplifies on-site termination by making it easy to identify and strip each channel.

In summary, the 16 Channel 22 AWG Star Quad Microphone Cable is a robust, high-performance solution for your audio installation needs, delivering superior sound quality, excellent isolation, and enhanced durability.

Canare 16 Channel 22 AWG Star Quad Microphone Cable, 100m Features

  • Multiple AudioLines
  • Multiple AudioLines
  • Permanent Installations
  • Permanent Installations
  • Audio Rack Wiring
  • Audio Rack Wiring
  • PA Systems
  • PA Systems
  • Foil Shield with Drain Wire
  • Foil Shield with Drain Wire
  • Flexible in Extreme Cold Weather
  • Flexible in Extreme Cold Weather
  • Cross Linked PE Insulation
  • Cross Linked PE Insulation
  • Rejects EMI and RFI
  • Rejects EMI and RFI
  • Multiple Channels
  • Multiple Channels
  • Dupont Kevlar 29 Filler
  • Dupont Kevlar 29 Filler

Warranty Information

This product has a limited warranty of 12 months.
