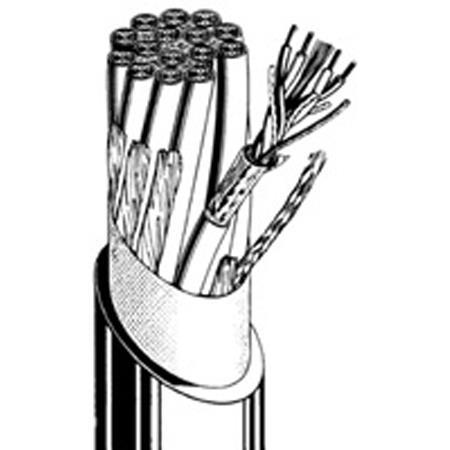

Canare 2 Channel 22 AWG Star Quad Microphone Cable, 100m

SKU: CAL4E42AT1M MFR: L-4E4-2AT 100M
Earn VIP Reward Points

Key Features

  • Experience pristine audio with this 100m Canare Star Quad microphone cable.
  • Enjoy superior signal quality with 22 AWG conductors in this shielded cable.
  • Durable PVC jacket ensures long-lasting performance for demanding audio setups.
  • Minimize interference with >100% AL foil shielding on this audio cable.
  • Perfect for studio recording: Achieve crystal-clear sound with low capacitance.
  • Flexible and robust: Ideal for live sound, broadcast, and professional use.
See More Product Details
Special Order?Estimated to Ship: 08/22/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

5 Year

$179.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Canare 2 Channel 22 AWG Star Quad Microphone Cable, 100m Specifications

  • Nominal Outer Diameter

    10.49 mm (0.413")

  • Color

    Gray

  • Conductor Size (AWG)

    22

  • Jacket Type

    PVC

  • Shielded

    Yes

  • Brittle Point

    -22 Degree F (-30 Degree C)

  • PVC Jacket Thickness

    0.051" (1.3 mm)

  • Channel Outer Diameter

    146 in (3.7 mm)

  • Number of Conductors (4 Per Channel)

    8

  • Channel Jacket Nominal Thickness

    PVC 11.8 mil

  • Insulation Type Thickness

    IPE 12.6 mil

  • Number of Quad Channels

    2

  • Conductor-Cross Section Area

    (16/4.73) 279 Quantity/Mil

  • Shield Coverage

    AL Foil >100% 23 AWG) (16 AWG Bundle Drain Wire)

  • Pitch Twist Quad

    <0.83 in (<21 mm)

  • Conductor D.C.R.

    <32.9 Ohms/1000ft (<10.8 Ohms/100m)

  • Nominal Capacitance (b/n Conductors)

    50 pf/ft (164 pF/m)

  • Nominal Capacitance (b/n Cond. & Shield)

    68 pf/ft (222pF/m)

  • Cable Length

    100 m (338 ft)

  • Weight

    8 kg (18 lbs)

About Canare 2 Channel 22 AWG Star Quad Microphone Cable, 100m

Why settle for less when you can have the best Experience superior audio quality with the 2 Channel 22 AWG Star Quad Microphone Cable, a 100m long, durable and high-quality product from the reputable brand, Canare. This versatile microphone cable is designed for both recording and live sound applications, making it an essential tool for any audio professional.

Engineered for all fixed audio installations, this cable features a 100% foil shield, ensuring complete isolation of each four-conductor channel. This design significantly reduces interference and noise, providing you with clear, crisp sound every time.

Constructed with Kevlar 29, this cable boasts impressive tensile pulling strength, ensuring its longevity and reliability even in the most demanding of environments. The flexible and robust nature of this cable makes it perfect for use in a variety of settings, from professional recording studios to live concert venues.

The cable is encased in a black, color-coded striped PVC jacket, which not only protects the inner wiring but also simplifies on-site termination. The jacket strips easily, making setup and breakdown quick and efficient.

With stranded copper wire and a 22 AWG gauge, this cable is ideally suited for low-level signals such as microphone inputs, ensuring optimal sound transmission.

Choose the 2 Channel 22 AWG Star Quad Microphone Cable from Canare for reliable, high-quality audio performance. Trust in Adorama, your one-stop-shop for top-tier photography equipment, digital cameras, lenses, pro audio & video, professional gear & musical instruments.

Canare 2 Channel 22 AWG Star Quad Microphone Cable, 100m Features

  • Multiple AudioLines
  • Permanent Installations
  • Audio Rack Wiring
  • PA Systems
  • Foil Shield with Drain Wire
  • Flexible in Extreme Cold Weather
  • Cross Linked PE Insulation
  • Rejects EMI and RFI
  • Multiple Channels
  • Dupont Kevlar 29 Filler

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Experience pristine audio with this 100m Canare Star Quad microphone cable.
  • Enjoy superior signal quality with 22 AWG conductors in this shielded cable.
  • Durable PVC jacket ensures long-lasting performance for demanding audio setups.
  • Minimize interference with >100% AL foil shielding on this audio cable.
  • Perfect for studio recording: Achieve crystal-clear sound with low capacitance.
  • Flexible and robust: Ideal for live sound, broadcast, and professional use.
