Canare 8 Channel 22 AWG Star Quad Microphone Cable, 200m

SKU: CAL4E48AT2M MFR: L-4E4-8AT 200M
Earn VIP Reward Points

Key Features

  • Experience pristine audio with this Canare 8-channel microphone cable, boasting exceptional signal quality.
  • This 22 AWG star quad cable ensures durability and flexibility, perfect for professional audio setups.
  • Get superior noise rejection with 100% aluminum foil shielding in each channel of this audio cable.
  • Customize your studio with this 656' (200m) bulk audio cable, offering ample length for any configuration.
  • Enjoy peace of mind with the robust PVC jacket, protecting your microphone cable from wear and tear.
  • Achieve optimal conductivity and minimize signal loss with the 25 AWG conductors in each channel.
See More Product Details
Special Order?Estimated to Ship: 08/17/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Canare 8 Channel 22 AWG Star Quad Microphone Cable, 200m Specifications

  • Number of Quad Channels

    8

  • Number of Conductors

    32 (4 per channel)

  • Outer Diameter

    Nominal: 0.665" (16.89mm)
    Channel: 146" (3.7mm)

  • PVC Jacket Thickness

    Nominal: 0.059" (1.5 mm)

  • Channel Jacket

    Type:PVC
    Thickness:0.46" (11.8 mm)

  • Insulation

    Type: IPE
    Thickness: 0.49" (12.6 mm)

  • Conductor

    AWG (AC): 25 (16 / 4.73 quantity/mm)
    Cross Sectional Area: 279 mm
    AWG (Quad): 22

  • Pitch Twist Quad

    <0.83" ( <21 mm)

  • Shield Coverage

    Channel: Aluminum foil 100%

  • Drain Wire

    23 AWG
    BundleDrain Wire: 16 AWG

  • Conductor D.C.R.

    <32.9 © / 1000' (<10.8 ©/100 m)

  • Nominal Capacitance

    Between Conductors: 50 pF/feet (164 pF/m)
    Between Conductors to Shield: 68 pF/feet (222 pF/m)

  • Brittle Point

    -22°F (-30°C)

  • Length

    656' (200m)

  • Weight

    73 lbs (33kg)

About Canare 8 Channel 22 AWG Star Quad Microphone Cable, 200m

Explore the exceptional performance of the 8 Channel 22 AWG Star Quad Microphone Cable, a 200m long, durable and high-quality audio solution from Canare. This versatile cable is designed for all fixed audio installations, making it an ideal choice for professional recording studios, live performances, and sound reinforcement systems.

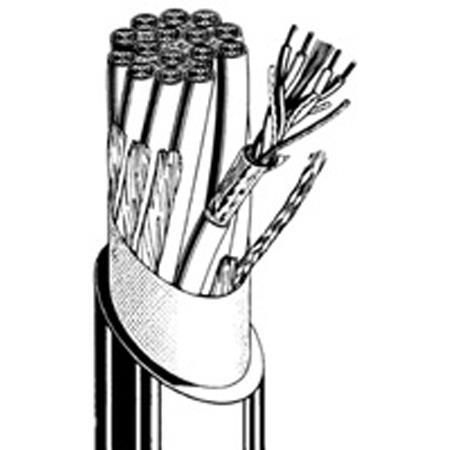

Each of the eight channels in this reliable cable features four conductors, completely isolated to ensure optimal sound quality. The conductors are shielded with 100% foil, effectively reducing electromagnetic interference and enhancing the clarity of your audio.

Built for strength and longevity, this cable incorporates Kevlar 29, renowned for its tensile pulling strength. This ensures the cable can withstand the rigors of professional use, while maintaining its flexibility for easy installation and routing.

The cable is encased in a black, color-coded striped PVC jacket, which not only provides additional protection but also simplifies on-site termination. The drain wire feature further enhances the cable's performance and usability.

With its multi-channel design, this cable can support multiple microphones or audio devices simultaneously, making it a versatile addition to your professional audio equipment. Trust in the quality and reliability of Canare, a reputable brand in the professional audio industry, and elevate your audio experience with the 8 Channel 22 AWG Star Quad Microphone Cable.

Canare 8 Channel 22 AWG Star Quad Microphone Cable, 200m Features

  • Multiple AudioLines
  • Multiple AudioLines
  • Permanent Installations
  • Permanent Installations
  • Audio Rack Wiring
  • Audio Rack Wiring
  • PA Systems
  • PA Systems
  • Foil Shield with Drain Wire
  • Foil Shield with Drain Wire
  • Flexible in Extreme Cold Weather
  • Flexible in Extreme Cold Weather
  • Cross Linked PE Insulation
  • Cross Linked PE Insulation
  • Rejects EMI and RFI
  • Rejects EMI and RFI
  • Multiple Channels
  • Multiple Channels
  • Dupont Kevlar 29 Filler
  • Dupont Kevlar 29 Filler

Warranty Information

This product has a limited warranty of 12 months.
