Canare L-4E5AT 20 AWG Star Quad Microphone Cable, 200m

SKU: CAL4E5AT2M MFR: L-4E5AT 200M
$178.00
$195.80
Save: $17.8 (9%)
Earn VIP Reward Points

Key Features

  • Experience pristine audio with Canare's Star Quad Microphone Cable, ensuring top signal quality.
  • This 200m bulk audio cable offers flexibility for custom installations and professional setups.
  • Enjoy superior durability with a robust PVC jacket, designed to withstand demanding use conditions.
  • Minimize interference with 100% aluminum tape shielding, delivering clear sound in any environment.
  • The 22 AWG cable provides optimal conductivity, ensuring reliable performance for all your needs.
  • Get exceptional value with this high-performance microphone cable, balancing quality and price.
See More Product Details
Special Order?Estimated to Ship: 08/17/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$15.99

2 Year

$23.99

3 Year

$35.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Canare L-4E5AT 20 AWG Star Quad Microphone Cable, 200m Specifications

  • Nominal Impedance

    37 Ohms

  • Shield Coverage

    100% Aluminum Tape

  • Nominal Outer Diameter

    0.197" (5.00 mm)

  • Colors

    Gray, Black

  • Conductor Size (AWG)

    22

  • Jacket Type

    PVC

  • Shielded

    Yes

  • Brittle Point

    -22 Degree F (-30 Degree C)

  • Pitch Twist Quad

    0.83 in (21 mm)

  • Conductor D.C.R.

    <32.7 Ohms/1000ft (<10.7 Ohms/100m)

  • Insulation Type Thickness

    IPE 12.6 (Dielectric Strength = 500V AC/1minute Insulation Resistance/3Mft = >1000M Ohms)

  • Group Delay Time

    1.71 ns/ft (5.6 nS/m)

  • Conductor-Cross Section Area

    (16/4.73) 279 Quantity/Mil

  • Jacket Nominal Thickness

    0.039 in (1.03 mm)

  • Number of Conductors

    4 - 2 Blue and 2 White

  • Nominal Capacitance(b/n cond. to shield)

    68 pf/ft (222 pF/m)

  • Nominal Attenuation

    0.9 V/1000ft (0.3 V/100m)

  • Nom. Capacitance(b/n Blue & Twin White)

    50 pf/ft (164 pF/m)

  • Cable Length

    200 m (656 ft)

About Canare L-4E5AT 20 AWG Star Quad Microphone Cable, 200m

Experience the superior performance of the L-4E5AT 20 AWG Star Quad Microphone Cable, meticulously designed for point-to-point wiring in fixed installations. This high-quality, durable cable is a product of Canare, a brand renowned for its reliable audio equipment.

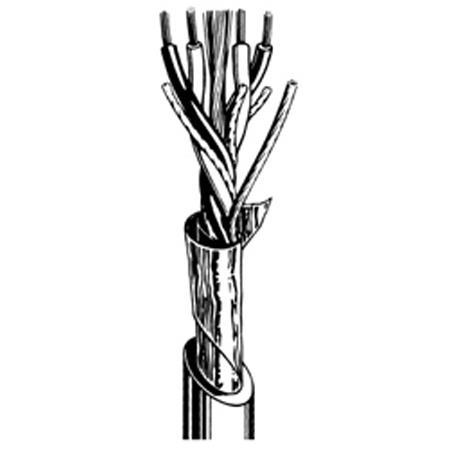

The L-4E5AT 20 AWG Star Quad Microphone Cable boasts an Aluminum Foil Shielding that provides 100% coverage, ensuring optimal signal transmission without interference. Its slick, easy-to-pull PVC Jacket houses an internal Dupont Kevlar 29 cable filler, which is stronger than steel, offering exceptional resistance to stretching or kinking of wires when pulled through conduit bends.

This versatile microphone cable is not only flexible but also designed for convenience. The foil shield and drain wire strip easily, allowing for quick assembly work that takes only a third of the time compared to braided shields. Moreover, the cable features irradiated PE conductor insulation, which resists solder iron meltdown, enhancing its longevity and reliability.

Ideal for transmitting audio signals from a microphone to a recording device or sound system, the L-4E5AT 20 AWG Star Quad Microphone Cable is a must-have for any professional audio setup. Choose this 200m microphone cable from Adorama, your one-stop-shop for top-quality photography and audio equipment.

Canare L-4E5AT 20 AWG Star Quad Microphone Cable, 200m Features

  • Microphones
  • Permanent Installations
  • Audio Rack Wiring
  • PA Systems
  • Aluminium Foil Shield, 100% coverage
  • Built in Dupont Kevlar 29
  • Drain Wire
  • Cross Linked PE Insulation
  • Reduced Handling Noise
  • Rejects EMI and RFI

Warranty Information

This product has a limited warranty of 12 months.
