Canare L-4E6S 100m Star Quad Microphone Cable, Red
See all Canare items

Canare L-4E6S 100m Star Quad Microphone Cable, Red

SKU: CAL4E6S100MR MFR: L-4E6S 100METERR
(1)Ask a Question
$146.76
Earn VIP Reward Points

Key Features

  • Experience superior audio with this 100m Canare Star Quad Microphone Cable.
  • Ensure pristine signal quality with professional-grade, shielded audio cable.
  • This durable microphone cable is flexible, even in extreme cold weather.
  • Enjoy reduced handling noise thanks to the innovative design of this cable.
  • Perfect for portable applications, PA systems, and intricate audio rack wiring.
  • Reject EMI & RFI interference, ensuring clear sound with this shielded cable.
See More Product Details
Special Order?Estimated to Ship: 12/09/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Add Adorama Protect:

Available to U.S. customers only.
1-Year Adorama Protect$15.99
2-Year Adorama Protect$23.99
3-Year Adorama Protect$35.99

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What makes the L-4E6S 100m Star Quad Microphone Cable stand out?

The L-4E6S 100m Star Quad Microphone Cable is designed by Canare, a reputable brand known for its high-quality audio equipment. It's unique for its durable construction with forty separate strands in each conductor, reducing breakage due to flexing. It also comes in a range of 10 beautiful matte finish color jackets.

Is the L-4E6S 100m Star Quad Microphone Cable suitable for all types of audio connectors?

Yes, the L-4E6S 100m Star Quad Microphone Cable is designed with a standard 21 AWG wire diameter, making it a perfect fit for all XLR-type audio connectors.

What are the benefits of the shielded jacket on the L-4E6S 100m Star Quad Microphone Cable?

The shielded jacket on the L-4E6S 100m Star Quad Microphone Cable minimizes interference, ensuring your audio recording or live performances deliver clear and crisp sound.

Is the L-4E6S 100m Star Quad Microphone Cable comfortable to handle?

Absolutely. The L-4E6S 100m Star Quad Microphone Cable is designed with a flexible structure and a satin smooth finish, enhancing handling comfort, especially for extended use.

Can I use the L-4E6S 100m Star Quad Microphone Cable for long-distance recording?

Yes, the L-4E6S 100m Star Quad Microphone Cable is a great choice for long-distance recording or live performances due to its generous length of 100m.

Reviews about this item

Review Summary

2015-12-14T09:56:48

Rated 5 out of 5

Some of the best cable out there for mic cables.

If you're making microphone cables, this is what you want. Super flexible. You can spend more for Mogami cable but this is what the pros use. If you're not soldering your own mic cables, you should be.

KIRK W.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Canare L-4E6S Specifications

  • Applications

    Microphones
    Portable Applications
    Audio Rack Wiring
    PA Systems
    Audio Patch Cords
    Braided Copper Shield
    Flexible in Extreme Cold Weather
    Cross Linked PE Insulation
    Reduced Handling Noise
    Rejects EMI and RFI
    10 Matte Color Jacket Selections

  • Outer Diameter

    0.2" (6mm), nominal

  • PVC Jacket Thickness

    0.04" (1.1mm), nominal

  • Number of Conductors

    4 (2 blue and 2 white)

  • Insulation

    Type: IPE
    Thickness: 0.6" (15.7mm)
    Dielectric Strength: 500 VAC/minute
    Insulation Resistance: 1,000 MOhms per 3' (0.9m)

  • Conductor

    AWG (AC): 24 (40/3.15 quantity/mm)
    Cross Sectional Area: 310 mm2
    AWG (Quad): 21

  • Pitch Twist Quad

    0.8" (20mm)

  • Shield Coverage

    >95% TAC Braid

  • Conductor D.C.R.

    <29.9 Ohms/1,000' / <9.8 Ohms/100 m

  • Shield D.C.R

    <9.1 Ohms /1,000' / <3 Ohms/100 m

  • Nominal Capacitance

    Between Twin Blue & White Conductors: 46 pF/ft / 150 pF/m
    Between Conductors & Shield: 57 pF/ft / 185 pF/m

  • Nominal Impedance

    44 Ohms

  • Nominal Attenuation

    0.9 V/1,000' / 0.3 V/100 m

  • Group Delay Time

    1.80 ns/ft / 5.9 ns/m

  • Brittle Point

    -56 deg. F / -49 deg. C

  • Length

    100m (328')

About Canare L-4E6S

FEATURED REVIEWS

Some of the best cable out there for mic cables.

By KIRK W.

If you're making microphone cables, this is what you want. Super flexible. You can spend more for Mogami cable but this is what the pros use. If you're not soldering your own mic cables, you should be.

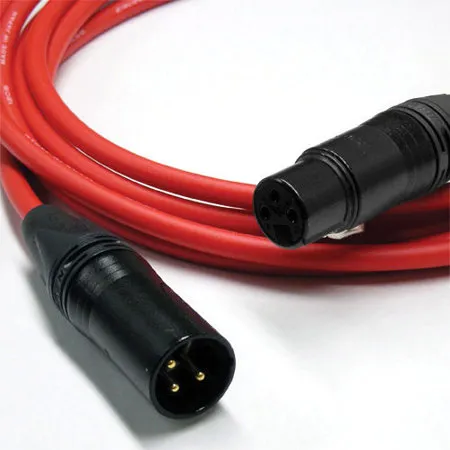

Make your audio recording or live performances superior with the L-4E6S 100m Star Quad Microphone Cable in vibrant red. This high-quality, durable cable is the top choice for all handheld microphone applications, designed by the reputable brand, Canare.

This versatile microphone cable boasts a standard diameter and is constructed with 21 AWG wire, ensuring it fits seamlessly into all XLR-type audio connectors. Its flexible design, coupled with a satin smooth finish, enhances handling comfort, making it an ideal choice for extended use.

The L-4E6S Star Quad Microphone Cable stands out with its unique construction featuring forty separate strands in each conductor. This intricate design significantly reduces the risk of breakage due to flexing, enhancing the cable's reliability and lifespan.

With a generous length of 100m, this cable is perfect for long-distance recording or live performances, providing you with the flexibility to move around freely. Encased in a shielded jacket, it ensures minimal interference, delivering clear and crisp audio quality.

Available in a range of 10 beautiful matte finish color jackets, the L-4E6S 100m Star Quad Microphone Cable combines functionality and aesthetics, making it a must-have for any audio professional or enthusiast.

Canare L-4E6S Features

  • High-quality, durable 100m Star Quad Microphone Cable for superior audio recording and live performances
  • Designed by reputable brand, Canare, known for its reliable audio equipment
  • Flexible design with satin smooth finish for enhanced handling comfort
  • Standard 21 AWG wire diameter, perfectly fitting all XLR-type audio connectors
  • Unique construction with forty separate strands in each conductor, reducing breakage due to flexing
  • Shielded jacket for minimal interference, ensuring clear and crisp audio quality
  • Available in a range of 10 beautiful matte finish color jackets for aesthetic versatility

Warranty Information

This product has a limited warranty of 12 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Experience superior audio with this 100m Canare Star Quad Microphone Cable.
  • Ensure pristine signal quality with professional-grade, shielded audio cable.
  • This durable microphone cable is flexible, even in extreme cold weather.
  • Enjoy reduced handling noise thanks to the innovative design of this cable.
  • Perfect for portable applications, PA systems, and intricate audio rack wiring.
  • Reject EMI & RFI interference, ensuring clear sound with this shielded cable.

What's in the box:

  • Canare L-4E6S 100m Star Quad Microphone Cable
  • Canare 1 Year Limited Warranty
