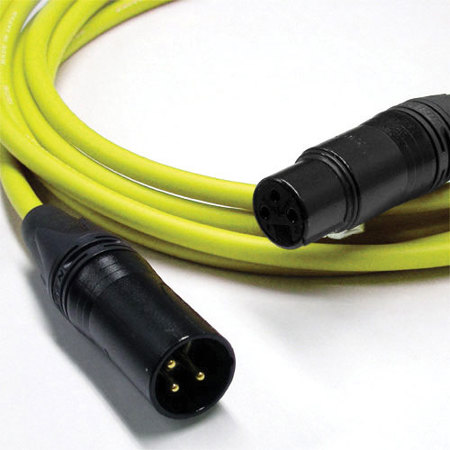

Canare L-4E6S 100m Star Quad Microphone Cable, Yellow

SKU: CAL4E6S100MY MFR: L-4E6S 100METERY
$146.76
Earn VIP Reward Points

Key Features

  • Experience superior audio with this 100m Canare Star Quad Microphone Cable.
  • Ensure pristine sound quality using this shielded audio cable for clear recordings.
  • Minimize noise interference with our professional-grade, low-noise microphone cable.
  • This durable cable is flexible in cold weather, perfect for outdoor audio setups.
  • Ideal for PA systems and audio rack wiring, this cable offers versatile applications.
  • Get optimal signal transfer with this 24 AWG Canare cable, 100 meters in length.
See More Product Details
Special Order?Estimated to Ship: 08/15/2025
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$15.99

2 Year

$23.99

3 Year

$35.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2015-12-14T09:56:48

Rated 5 out of 5

Some of the best cable out there for mic cables.

If you're making microphone cables, this is what you want. Super flexible. You can spend more for Mogami cable but this is what the pros use. If you're not soldering your own mic cables, you should be.

KIRK W.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Canare L-4E6S Specifications

  • Applications

    Microphones
    Portable Applications
    Audio Rack Wiring
    PA Systems
    Audio Patch Cords
    Braided Copper Shield
    Flexible in Extreme Cold Weather
    Cross Linked PE Insulation
    Reduced Handling Noise
    Rejects EMI and RFI
    10 Matte Color Jacket Selections

  • Outer Diameter

    0.2" (6mm), nominal

  • PVC Jacket Thickness

    0.04" (1.1mm), nominal

  • Number of Conductors

    4 (2 blue and 2 white)

  • Insulation

    Type: IPE
    Thickness: 0.6" (15.7mm)
    Dielectric Strength: 500 VAC/minute
    Insulation Resistance: 1,000 MOhms per 3' (0.9m)

  • Conductor

    AWG (AC): 24 (40/3.15 quantity/mm)
    Cross Sectional Area: 310 mm2
    AWG (Quad): 21

  • Pitch Twist Quad

    0.8" (20mm)

  • Shield Coverage

    >95% TAC Braid

  • Conductor D.C.R.

    <29.9 Ohms/1,000' / <9.8 Ohms/100 m

  • Shield D.C.R

    <9.1 Ohms /1,000' / <3 Ohms/100 m

  • Nominal Capacitance

    Between Twin Blue & White Conductors: 46 pF/ft / 150 pF/m
    Between Conductors & Shield: 57 pF/ft / 185 pF/m

  • Nominal Impedance

    44 Ohms

  • Nominal Attenuation

    0.9 V/1,000' / 0.3 V/100 m

  • Group Delay Time

    1.80 ns/ft / 5.9 ns/m

  • Brittle Point

    -56 deg. F / -49 deg. C

  • Length

    100m (328')

About Canare L-4E6S

FEATURED REVIEWS

Some of the best cable out there for mic cables.

By KIRK W.

If you're making microphone cables, this is what you want. Super flexible. You can spend more for Mogami cable but this is what the pros use. If you're not soldering your own mic cables, you should be.

The premier Star Quad cable for all handheld microphone applications. Flexible, satin smooth to the touch and extra strong, this standard diameter, 21 AWG cable fits perfectly in all XLR-type audio connectors. Forty separate strands in each conductor eliminate breakage due to flexing. Available in 10 beautiful matte finish color jackets.

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Experience superior audio with this 100m Canare Star Quad Microphone Cable.
  • Ensure pristine sound quality using this shielded audio cable for clear recordings.
  • Minimize noise interference with our professional-grade, low-noise microphone cable.
  • This durable cable is flexible in cold weather, perfect for outdoor audio setups.
  • Ideal for PA systems and audio rack wiring, this cable offers versatile applications.
  • Get optimal signal transfer with this 24 AWG Canare cable, 100 meters in length.

What's in the box:

  • Canare L-4E6S 100m Star Quad Microphone Cable
  • Canare 1 Year Limited Warranty
