Canare L-4E6S 656' Star Quad Microphone Cable Roll, Red
See all Canare items

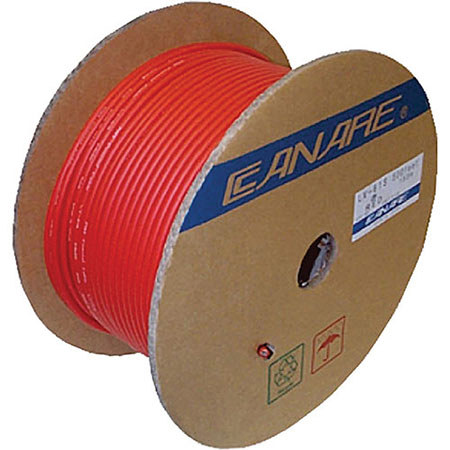

Canare L-4E6S 656' Star Quad Microphone Cable Roll, Red

SKU: CAL4E6SRED
(1)

This item is no longer available.

Recommended Alternatives

Canare : Picture 1 regular
Canare 4 Conductor 15 AWG Speaker Cable, 100m
$287.10
Canare : Picture 1 regular
Canare 4 Conductor 14 AWG Speaker Cable, 100m
$470.80
Canare 4S11: Picture 1 regular
Canare 4S11 200m Star Quad Speaker Cable, Gray
$984.50
Canare : Picture 1 regular
Canare 4 Conductor 13 AWG Speaker Cable, 100m
$420.20
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2015-12-14T09:56:48

Rated 5 out of 5

Some of the best cable out there for mic cables.

If you're making microphone cables, this is what you want. Super flexible. You can spend more for Mogami cable but this is what the pros use. If you're not soldering your own mic cables, you should be.

KIRK W.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Canare L-4E6S Specifications

  • Application

    Microphones
    Portable Applications
    Audio Rack Wiring
    PA Systems
    Audio Patch Cords

  • Length

    656.17' / 200m

  • Outer Diameter Nominal

    0.24" / 6mm

  • Jacket Normal Thickness

    0.04" / 1.12mm

  • Brittle Point

    -56 deg. F / -49 deg. C

  • Number of Conductors

    4 (2 blue & 2 white)

  • Insulation

    Type: IPE
    Thickness: 0.61" / 15.49mm

  • Conductor

    AWG (AC)

  • Cross Sectional Area

    310mm2

  • Pitch Twist Quad

    0.79" / 20.07mm)

  • Shield Coverage

    >95% TAC Braid

  • Conductor D.C.R.

    <29.9 Ohms /1,000' (<9.8 Ohms/100m)

  • Shield D.C.R

    <9.1 Ohms /1,000' (<3 Ohms/100m)

  • Nominal Capacitance

    Between Twin Blue & White Conductors: 150 pF/m
    Between Conductors & Shield: 185 pF/m

  • Nominal Attenuation

    0.9 V/1,000' (0.3 V/100 m)

  • Group Delay Time

    1.80 ns/ft (5.9 ns/m)

  • Weight

    24lbs / 10.89kg

About Canare L-4E6S

FEATURED REVIEWS

Some of the best cable out there for mic cables.

By KIRK W.

If you're making microphone cables, this is what you want. Super flexible. You can spend more for Mogami cable but this is what the pros use. If you're not soldering your own mic cables, you should be.

The Canare L-4E6S 656' Star Quad Red Microphone Cable Roll for all handheld microphone applications. Flexible, satin smooth to the touch and extra strong, this standard diameter, 21 AWG cable fits perfectly in all XLR-type audio connectors. Forty separate strands in each conductor eliminate breakage due to flexing. Available in 10 beautiful matte finish color jackets.

Canare L-4E6S Features

  • Braided Copper Shield
  • Flexible in Extreme Cold Weather
  • Cross Linked PE Insulation
  • Reduced Handling Noise
  • Rejects EMI and RFI
  • 10 Matte Color Jacket Selections

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Braided Copper Shield
  • Flexible in Extreme Cold Weather
  • Cross Linked PE Insulation
  • Reduced Handling Noise
  • Rejects EMI and RFI
  • 10 Matte Color Jacket Selections

What's in the box:

  • Canare L-4E6S 656' Star Quad Microphone Cable Roll
  • Canare 1 Year Warranty
