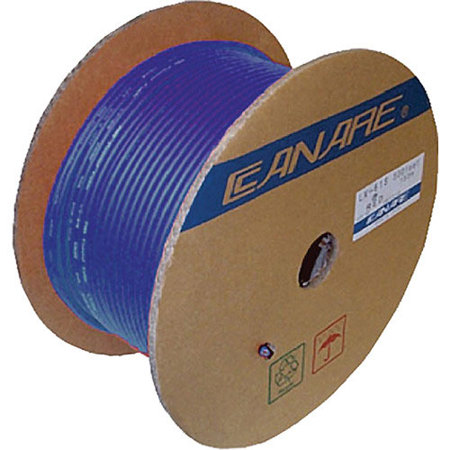

Canare L-5CFB 984' 75 Ohms SD/HD-SDI RG6 Type Coaxial Cable Roll, Blue
See all Canare items

Canare L-5CFB 984' 75 Ohms SD/HD-SDI RG6 Type Coaxial Cable Roll, Blue

SKU: CAL5CFBBLU
(1)

This item is no longer available.

Recommended Alternatives

undefined undefined: Picture 1 regular
Canare A3V2-FB 200m Audio Video Composite Cable
$1,967.90
$1,966.80
undefined undefined: Picture 1 regular
Canare 75 Ohm Coaxial Cable Lightweight Low Loss, 100m
$93.50
undefined undefined: Picture 1 regular
Canare 75 Ohm Coaxial Cable Lightweight Low Loss Cable, 200m
$185.90
undefined undefined: Picture 1 regular
Canare 75 Ohm L-2.5CHD Digital Video Coaxial Low Loss, 300m (UL 1666 Riser)
$293.70
undefined undefined: Picture 1 regular
Canare L-3C2V 75 Ohm Coaxial Cable Standard Coax (Solid PE Insulation), 200m
$221.10
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2017-05-30T09:02:43

Rated 5 out of 5

Good

Good quality

DANIEL R.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Canare L-5CFB Specifications

  • Length

    984' (299.92 m)

  • Outer Diameter Nominal

    0.303' (0.09 mm)

  • Brittle Point

    -22 deg. F (-30 deg. C)

  • PVC Jacket Thickness

    0.043' (13.10 mm)

  • Conductor Material AWG

    Bare Copper #18

  • Conductor Outer Diameter

    .041" (1.04 mm)

  • Dielectric Insulation Type

    Foam PE

  • Insulation Outer Diameter

    .192" (4.87 mm)

  • Shield Material Coverage

    AL Foil 100%
    TAC Braid >93%

  • Conductor D.C.R.

    <7.0 / (<2.3) at 1000'/100m

  • Shield D.C.R

    <2.1 / (<0.7) at 1000'/100m

  • Nominal Capacitance

    55 pF/m at 1 KHz

  • Nominal Impedance

    75 Ohms

  • Velocity of Propagation

    79%

  • Serial Digital Transmission Lengths

    940' min
    1,210' max at 270 Mb/s

  • Nominal Attenuation

    10 MHz: 0.7 dB/100' (2.2 dB/100 m)
    50 MHz: 1.6 dB/100' (5.3 dB/100 m)
    135 MHz: 2.5 dB/100' (8.1 dB/100 m)
    270 MHz: 3.5 dB/100' (11.5 dB/100 m)
    360 MHz: 4.1 dB/100' (13.4 dB/100 m)
    720 MHz: 5.9 dB/100' (19.4 dB/100 m)
    1GHz: 7.1 dB/100' (23.3 dB/100 m)
    1.45GHz: 8.8 dB/100' (29.0 dB/100 m) 1.8GHz: 10.1 dB/100' (10.1 dB/100 m)
    2GHz: 10.7 dB/100' (35.1 dB/100 m)

  • Crimp Plugs and Tools Matrix

    BNC: BCP-B5F
    F: FP-C5F
    RCA: RCAP-C5F
    Cable Stripper: TS-100E, TS-3C
    Crimp Tool: TC-1
    Die Set: TCD-5CF

  • Weight

    49 lbs (22.22 kg)

About Canare L-5CFB

The Canare L-5CFB 984' 75 Ohms SD/HD-SDI RG6 Type Blue Coaxial Cable Roll offers the professional Broadcaster a high performance, 100% Sweep Tested, low cost, low loss coax that meets the demands of today's facility migration trends toward Serial Digital Video and HDTV standards.

Canare L-5CFB Features

  • Solid Copper Center Conductor
  • Foam PE Dielectric
  • Tinned Copper Braid + 100% Foil Shield
  • Dielectric strips away clean from Conductor
  • Precision Coax 100% Sweep Tested

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Solid Copper Center Conductor
  • Foam PE Dielectric
  • Tinned Copper Braid + 100% Foil Shield
  • Dielectric strips away clean from Conductor
  • Precision Coax 100% Sweep Tested

What's in the box:

  • Canare L-5CFB 984' 75 Ohms SD/HD-SDI RG6 Type Coaxial Cable Roll
  • Canare 1 Year Warranty
