Cambo AC-375 Full Base Tilt Unit Kit for Actus Front, Rear & Tripod Block, Retrofit

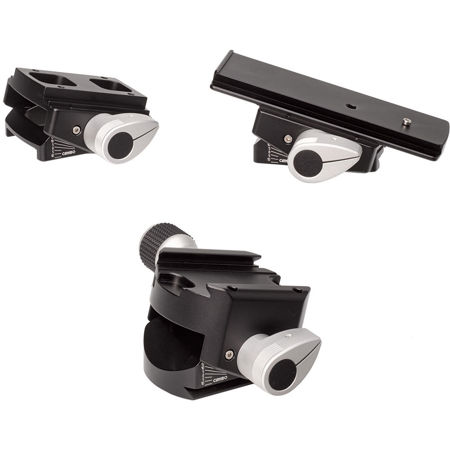

Explore the versatility and precision of the AC-375 Full Base Tilt Unit Kit for Actus Front, Rear & Tripod Block, Retrofit. This comprehensive kit includes a rear base tilt unit, a front base tilt unit, and a tripod adapter, each with the ability to tilt. Each base unit can be individually adjusted in 5-degree increments, up to 15 degrees to each side, providing you with a wide range of movement options for your Actus camera.

The unique grid pattern lock ensures that the standards are securely locked into position, providing stability and accuracy during use. This kit enhances your Actus camera's front and rear standards, as well as the Tripod Mount, by adding an extra base tilt adjustment. It's a perfect retrofit for all existing ACTUS cameras, including the Mini, B, G, and DB versions.

The rear base tilt unit, which mounts between the rear standard focusing unit and the monorail, adds an extra layer of sliding focus. This feature allows for an additional 42mm of focus draw compared to the original configuration, giving you more control and flexibility.

The front base tilt unit, which mounts with 4 screws between the front standard and the monorail, and the tripod base tilt unit, which mounts to the bottom of the monorail, can slide along the full monorail length. These units can be set and locked in incremental settings up to 15 degrees with a positive lock.

The AC-375 Full Base Tilt Unit Kit gives you additional freedom of movements in applying technical camera settings. You can set indirect vertical movements by applying base tilt to both standards, increasing more vertical shift when your optics allow for that. By simultaneously applying tilt to the tripod mount, you can keep your standards parallel and perpendicular with an inclined monorail. This feature is ideal for yaw-free swing applications, making the AC-375 Full Base Tilt Unit Kit a valuable addition to your photography equipment.
