Cambo PCF Full Precision Controlled Geared Head with QR-7 1/4" Quick Release Plate, Supports 13 Lbs
SKU: CAM99121805 MFR: 99121805
Earn VIP Reward PointsKey Features
- Achieve smooth panning and precise control with this geared head for photography.
- Enjoy secure locking and sturdy build, supporting up to 13 lbs of camera equipment.
- Quick setup with Arca-type quick release plate for fast transitions on any shoot.
- Capture perfectly level shots using the four integrated bubble levels on this head.
- Explore creative angles with -110° to +30° tilt range; ideal for landscape photos.
- Weighing only 2.8 lbs, this lightweight design is perfect for on-location photography.
Special Order?Estimated to Ship: 08/20/2025
Free Shipping
See Options
1
Protect your gear with Adorama Protect.* Learn more
2 Year
$99.99
3 Year
$119.99
4 Year
$154.99
Available to U.S. customers only.
Need help? Ask our experts.
Overview
Compare
Specs
Protection
Q&A

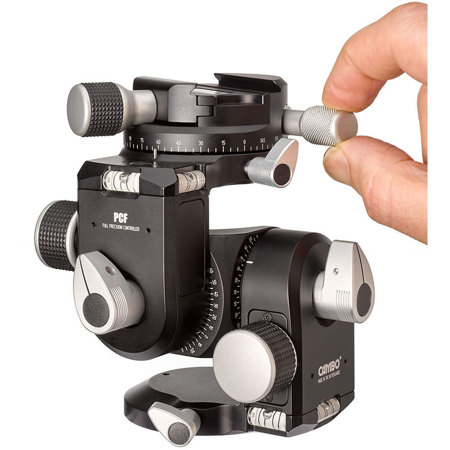

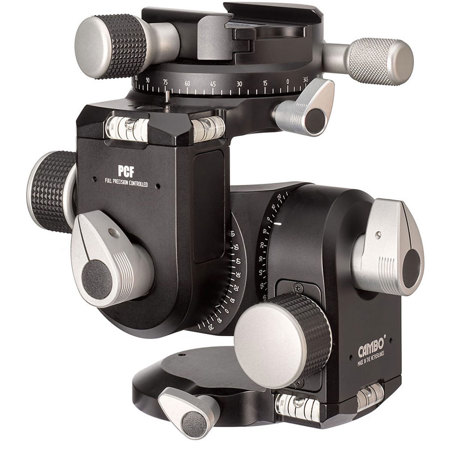

About Cambo PCF Geared Head
Cambo's PCF tripod head with amazing flexibility. It can tilt, swing, rotate as if it were a ball head, and it has precision gears for fine-tuned tilt and swing and additional geared rotation of the top platform. All geared movements are self-locking and available in any position of the head. The bottom as well as the top can rotate 360. After levelling, the top rotation can be used for panoramic shooting.
The PCF features a quick release top and includes a 1/4" plate. Cambo's QR plate includes a safety lock that prevents your camera to turn loose on the mount.
If you have a camera with an ARCA style mount, you can use it directly on the PCF. This includes the Cambo ACTUS and Cambo WRS-series.
PCF is a tripod head which features geared rotational movement around the X-Axis , Y-Axis and Z-Axis on the top, as well as double (top and bottom plate) manual rotation around the Z-axis. This enables the PCH to be used as a normal ball head for fast levelling adjustment as well as a precision gear head for fine levelling adjustments.
Adjusting the PCF/PCH movements
It is possible to fine tune the PCF/PCH controls to your own preference. Both the manual and geared movements are possible to adjust. Note that fine tuning the PCF/PCH controls is a precise task and should be performed with great care.
Cambo PCF Geared Head Features
- Position click indication every 90 Degree at the top and bottom plate
- 140 Degree X-axis tilt (30 Degree backwards 110 Degree forward)
- Separate manual (fast) or geared (fine) movement around the X-axis
- 140 Degree Y-axis pivot (30 Degree backwards 110 Degree forward)
- Separate manual (fast) or geared (fine) movement around the Y-axis
- 360 Degree Z-axis geared panning at the top plate
- 360 Degree manual panning at the top and bottom plate
- X-, Y- and Z-axis rotate over the same point
- When X-, Y- and Z-axis locking knobs are open the PCF can move freely like a normal spherical head.
- Adjustable geared friction
- Adjustable manual friction
- Arca compatible QR clamp
- 4 large spirit levels
- Durable stainless steel 3/8'' and 1/4'' tripod mounting options
Warranty Information
This product has a limited warranty of 12 months.
