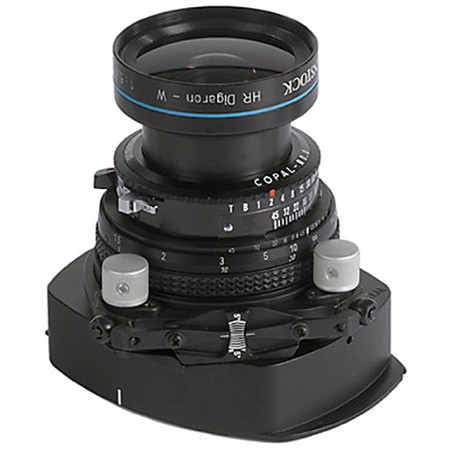

Cambo WTS-870 Tilt-Swing Lens Panel with Rodenstock HR Digaron-W 70mm f/5.6 Lens, Copal #0

The WTS-870 Lenspanel is dedicated to the use with Digital Backs and has a Rodenstock 5.6/70 HR Digaron-W lens with copal 0 shutter mounted in a helical focussing mount.

This lenspanel features an integrated tilt and swing mechanism which can be operated with two precise gear-driven knobs upto 5 degrees Tilt up and down and 5 degrees Swing left and right, while both swing and tilt can be set independently, separately but also in combination.

The movements have a clear and forced zero position where the parallel setting to the focal plane is guaranteed.

Shortest focal distance to object: 0.9m

Image circle of lens at f/11: 100mm

Optical Movements:
CCD size 37x37mm: 28/28mm
CCD size 33x44mm: 28/25mm
CCD size 36x48mm: 25/22mm
CCD size 37x49mm: 24/22mm
CCD size 40x54mm: 20/18mm
CCD size 36x56mm: 22/18mm
Please note that some optical movements are larger than achievable due to mechanical limitation.

Camera Movements:
WDS: Up / Down / Left / Right: 34 / 26 / 20 / 20mm
WRS: Up / Down / Left / Right: 25 / 15 / 20 / 20mm

HR Digaron-W Features

• Resolution up to 100 line pairs/mm, pixel size up to 5 micrometre
• The open aperture is free of vignetting and can be used as a working aperture
• Excellent imaging performance at working apertures from 5.6 to 8
• To avoid blurring and color fringing caused by the sensor protection glass, the calculation of the optical design includes a 2 mm thick sensor glass
• Perfect symmetric reproduction due to a special adjustment of the optical elements
• Thanks to the retro focus design of the wide-angle lenses there is no additional light fall-off and no color fringing on the sensors with micro lenses due to extremely oblique light incidence
• Enough space left for camera movement between lens and sensor even with short focal lengths.
