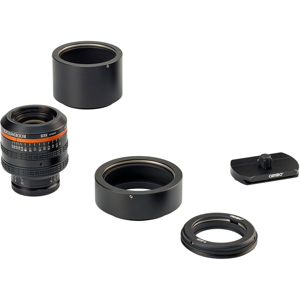

Cambo RPM-80-105 Repro System 2-Lens Kit for Fujifilm GFX Series Cameras
$11,113.00
Cambo WRA-2023: Picture 1 regular

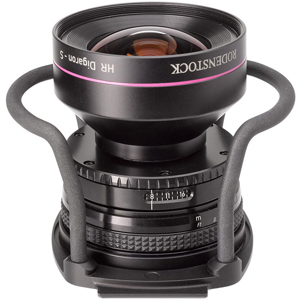

Cambo WRA-2023 Wide Lenspanel with 23mm Rodenstock HR Digaron-S Lens
$13,189.00
Cambo WRA-2035: Picture 1 regular
Cambo WRA-2035 Wide Lenspanel with 35mm HR Rodenstock Digaron-S Lens
$7,514.00
See More Recommendations
Overview
Compare
Q&A

Questions & Answers

Reviews about this item

Review Summary

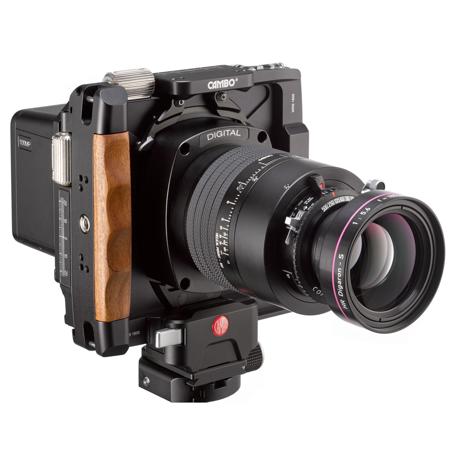

About Cambo WDS-180L

The WDS-180L Lenspanel is dedicated to the use with Digital Backs and has a Rodenstock 5,6/180 HR-S Digaron lens with copal0 shutter mounted in a helical focussing mount, with 25mm travel.

This version has a split back focal length, existing of a shorter lensplate and a rear extension unit.

This combination allows for more shift before vignetting from the lensbarrel.

The WDS-180L fits to all Cambo Wide cameras with SLW-adapters.

Camera Movements:
WDS: Up / Down / Left / Right: 34 / 26 / 20 / 20mm
WRS: Up / Down / Left / Right: 25 / 15 / 20 / 20mm

Shortest focal distance to object: approx. 1.7m
Image circle of lens at f/11: 80 mm

Optical Movements
CCD size 37x37mm: 17/17mm
CCD size 33x44mm: 17/14 mm
CCD size 36x48mm: 14/12 mm
CCD size 37x49mm: 13/11 mm
CCD size 40x54mm: 9 / 8 mm
CCD size 36x56mm: 13/ 7 mm

Join VIP PRO

2 Day Delivery on thousands of items!

Request a Callback

Chat one-on-one with an expert

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • WDS-180L Lens Panel with Rodenstock HR Digaron-S 180mm f/5.6 Lens
  • Front and Rear Caps
  • Cambo 1 Year Limited Warranty (Extendable to 2 Years with Online Registration)
