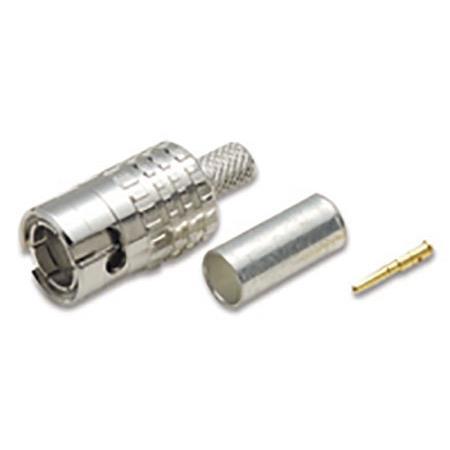

Canare MBCP-C25F 3-Piece Slim 75 Ohms BNC Connector for Belden 1855A Cable

SKU: CAMBCPC25F MFR: MBCP-C25F
$4.81
Earn VIP Reward Points

Key Features

  • Ensure a secure connection with these slim 75 Ohm BNC Canare connectors.
  • Achieve optimal signal transfer using these broadcast-quality coaxial cables.
  • Enjoy superior durability with gold-plated center contact BNC cable connectors.
  • Use with Belden 1855A cable for professional-grade video applications today.
  • Minimize signal loss with our high-performance 75 Ohms coaxial cable adapter.
  • Get a reliable connection with >55 lbs cable retention BNC connector.
See More Product Details
Special Order?Estimated to Ship: 08/18/2025
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Canare MBCP-C25F Specifications

  • Matching Cable

    L-2.5CFB, 1855A

  • Crimp Die

    TCD-3C, TCD-35CA

  • Crimp Pin

    B11014E

  • Sleeve

    BN7029C

  • Parts

    Body, Crimp Pin, Sleeve

  • Impedance

    75 Ohms

  • Bandwidth VSWR (Return Loss) DC to 2GHz

    <1.2 / >20dB

  • Body Material (Plating)

    Brass (Nickel)

  • Center Contact Material (Plating)

    Brass (Gold)

  • Outer Contact Material

    Beryllium copper

  • Dielectric Material

    PTFE

  • Crimp Sleeve Material (Plating)

    Copper (Tin)

  • Cable Retention

    >55 lbs

  • Insulation Resistance at 500V DC

    >1000 MOhms

  • Voltage Rating for 1 Min.

    1500V AC (RMS)

  • Center Contact Resistance

    <6m Ohms

  • Outer Contact Resistance

    <3m Ohms

About Canare MBCP-C25F

Why settle for anything less than the best when it comes to your audio and video connections The Canare MBCP-C25F 3-Piece Slim 75 Ohms BNC Connector is the pinnacle of connectivity precision, designed specifically for Belden 1855A Cable. This high-quality, durable BNC crimp plug has been meticulously engineered by Canare, a brand synonymous with excellence in the audio and video cable industry.

Crafted with a focus on reliability and strength, the Canare MBCP-C25F ensures a sturdy and secure connection between coaxial cables. Its slim profile, with an outer diameter of just 12mm, is perfectly suited for high-density installations where space is at a premium. This makes it an ideal choice for use with integrated devices that require a compact yet robust connector.

The connector's 75 Ohms impedance is matched to maintain the integrity of your signal, ensuring clear and reliable transmission for professional-grade audio and video setups. The three-piece design of the MBCP-C25F not only contributes to its slim form factor but also facilitates a straightforward and precise crimping process, resulting in a dependable connection that stands the test of time.

Whether you're setting up a mid-size video patchbay or connecting various pieces of broadcast equipment, the Canare MBCP-C25F BNC Connector is a versatile solution that professionals trust. Its compatibility with Belden 1855A Cable makes it a go-to component for those who require a connector that can handle the demands of high-quality audio and video transmission without compromise.

In summary, the Canare MBCP-C25F 3-Piece Slim 75 Ohms BNC Connector is a top-tier choice for anyone looking to maintain the highest standards in their audio and video connections. Its combination of a slim design, reliable performance, and the reputable Canare brand craftsmanship ensures that your connections are not only secure but also of the highest fidelity.

Canare MBCP-C25F Features

  • True 75 ohm construction Crimp Pin & Sleeve
  • DC to 2.4 GHz >20dB Return Loss
  • Mechanically mates with Normal BNC
  • Elongated Body for better finger grip
  • Superior cable pull strength
  • Gold plated center pins 'snap lock' in place
  • Beryllium copper outer contact
  • Easy Assembly using Canare Strip & Crimp Tools

Warranty Information

This product has a limited warranty of 12 months.
