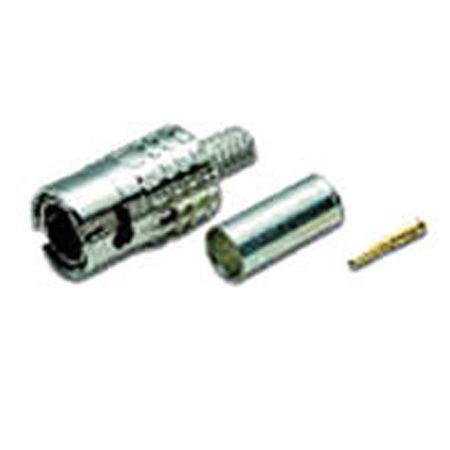

Canare 75 Ohm Slim BNC Crimp Plug for L-5CFB, V*-5CFB Cables

SKU: CAMBCPC5F MFR: MBCP-C5F
$4.38
Earn VIP Reward Points

Key Features

  • Ensure optimal signal transfer with this 75 Ohm BNC crimp plug for reliable connections.
  • Experience superior durability; our nickel-plated Canare BNC connector stands the test of time.
  • Achieve a >20 dB return loss (DC to 2GHz) for pristine audio and video signal quality.
  • Gold-plated center contact on this BNC plug ensures excellent conductivity and corrosion resistance.
  • Perfect for L-5CFB and V*-5CFB cables, providing a secure and high-performance coaxial connection.
  • Withstands up to 1500 VAC (RMS), making this coaxial cable BNC connector a safe, robust choice.
See More Product Details
Special Order?Estimated to Ship: 09/07/2025
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Canare Slim BNC Crimp Plug Specifications

  • Matching Cable (Canare)

    L-5CFB, V-5CFB

  • Center Pin

    B11020D

  • Sleeve

    B75004A

  • Boot

    CB26

  • Die Set

    TCD-5CF, TCD-55FA

  • Impedance

    75 Ohms

  • Outer Diameter

    0.47" (12 mm)

  • Return Loss

    >20 dB (DC to 2GHz)

  • Voltage Rating

    1500 VAC (RMS)

  • Insulation Resistance

    >1000 Mohms (at 500VDC)

  • Cable Retention

    >55 lbs (>24.9kg)

  • Connector Finish

    Nickel-plated

  • Center Contact Plating

    Gold-plated

  • Outer Contact Material

    Beryllium copper

  • Dielectric Material

    PTFE

  • Body/Center Contact Material

    Brass

About Canare Slim BNC Crimp Plug

Over the years, Canare has established itself as a leader in the audio and video equipment industry, and their 75 Ohm Slim BNC Crimp Plug is no exception to their legacy of excellence. This high-quality crimp plug is meticulously designed to ensure durable, reliable, and sturdy connections for your coaxial cables.

Crafted with precision, the Canare 75 Ohm Slim BNC Crimp Plug is specifically engineered for use with L-5CFB and V*-5CFB cables, providing a strong and secure termination that professionals can trust. Its slim profile is particularly advantageous for those working with high-density integrated devices or in environments where space is at a premium. The compact design of this BNC crimp plug makes it an ideal choice for easy handling and frequent connect-disconnect scenarios.

The plug features a male connector with a 12mm outer diameter, making it perfectly suited for Canare's Mid Size Video Patchbay and similar equipment. The robust construction of this crimp plug ensures that it can withstand the rigors of regular use while maintaining the integrity of your signal.

Whether you're setting up a professional broadcast studio, configuring a sophisticated home theater system, or working on any application that requires a dependable coaxial connection, the Canare 75 Ohm Slim BNC Crimp Plug stands out as a reliable choice. Its combination of a reputable brand name and a design that emphasizes both functionality and ease of use makes it a superior alternative to other BNC connectors on the market.

In summary, the Canare 75 Ohm Slim BNC Crimp Plug is a testament to the brand's commitment to producing durable, high-quality connectors. It offers a reliable and sturdy connection for your audio and video needs, ensuring that your equipment performs at its best.

Canare Slim BNC Crimp Plug Features

  • SMPTE 259M & 292M Compliant
  • True 75 Ohms construction Crimp Pin & Sleeve
  • DC to 24 GHz >20dB Return Loss
  • Mechanically mates with Normal BNC
  • Elongated Body for better finger grip
  • Superior cable pull strength
  • Gold plated center pins snap lock in place
  • Beryllium copper outer contact
  • Easy Assembly using Canare Strip & Crimp Tools
  • 75 ohm Slim BNC Connector, Straight Plug
  • Applicable for serial digital video, HDTV upgrades, NTSC analog, test equipment, satellite headends, telcom

Warranty Information

This product has a limited warranty of 12 months.
